280T All-Rounder Middle Trunk Line Fusion Splicer

280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer
280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer 280T All-Rounder Middle Trunk Line Fusion Splicer
Category: Fusion Splicing
Core features
· 4 Motor mainline fusion splicer  · Fiber core alignment,Fiber core visible · Auto splice & auto heat function · Fully ruggedized for shock, dust, and moisture · 3-Year extended warranty · 4.3-Inch capacitive touch screen · Tool-less electrodes replacement
Recommended Products
  • KL-23F High Precision Fiber Cleaver
  • JBL-16 Optical Fiber Cleaver Blade
  • JBL-23 Optical Fiber Cleaver Blade
  • KL-520 FTTx Fiber Fusion Splicer
  • KL-6200 Fiber Master OTDR
  • FIP-600V Fiber Optic Connector Inspection System
  • OPM-22/22V Mini Optical Power Meter
280T All-Rounder Middle Trunk Line Fusion Splicer
Features
  • 280T-0.jpg
    280T All-Rounder Middle Trunk Line Fusion Splicer
    ● 4 Motor mainline fusion splicer
    ● Auto splice & auto heat function
  • 280T-1.jpg
    Auto splice & auto heat function
    ● Fast-splicing 8s
    ● Fast-heating 18s
    ● Fiber core visible
  • 280T-3.jpg
    4.3-Inch capacitive touch screen
    ● 4.3-Inch capacitive touch screen
  • 280T-5.jpg
    Multi-scenario application
    ● 60KM metropolitan area network
    ● FTTx Fiber to the home
    ● Security monitoring
    ● Installation and maintenance construction
  • 280T-6.jpg
    2 layer cooling tanks arrying upgrade
    ● 2 layer cooling tanks arrying upgrade
    ● Twice as much capacity as usual
  • 280T-7.jpg
    Support the placement of cleaver operating platform
    ● Support the placement of cleaver operating platform do cleaving and splicing work in one step(The console needs to be bought separately)
  • fusion splicing machine
    Tool-less electrodes replacement
    ● Electrode life around 5000 times(Replaceable)
  • 280T-9.jpg
    Exquisite detailHigh quality
    ● Adapt to various environments, fully ruggedized for shock, water and dust
    ● Waterproof body
    ● Shock and fall proof
    ● Dirt and dust resistance
  • 280T-10.jpg
    Full body silicone sheathcomprehensive protection
    ● Full body silicone sheathcomprehensive protection
  • 280T-11.jpg
    3-IN-1 Fiber Holder
    ● Fiber holder suitable for Bare Fiber
    ● 3.0mm, Jump Fiber
    ● Pigtail and Fiber
    ● Rubber-insulated fiber cable
Product Specification
Alignment methodCore Alignment
Applicable fiber typeSM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable 0.25~3.0 mm / Rubber-insulated fiber cable
Fiber Holder Replaceable universal fiber holder
Fiber DiameterCladding:80-150µm, Coating: 100-1000µm
Fiber Cleave Length 8-16 mm
Splicing modeMax 128 modes
Typical Splice Loss SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB ★①
Return Loss>>60dB
Splicing TimeSM Quick mode: 8 sec/ SM Average: 15 sec
Estimated Splice LossAvailable
Heating TimeQuick mode 18 sec.(SM G652 250µm 40mm Sleeve) adjustable★②
Protection Sleeve Length20mm, 30mm, 40mm, 50mm, 60mm
Heat ProgramsMax 32 modes
Battery6800mAh Battery Capacity, Typical 300 Cycles (Splice&Heat) per Charge ★③
Electrode Life5000 arcs, can be extended by using an electrode grinder  ★④
Auto-startSplice / Heating
Automatic Fiber Identification/
Automatic ARC IdentificationAutomatic arc calibration by air pressure and temperature
Results StorageThe last 10,000 splice records and 2,000 result images
Tension Test1.96~2.25N
Operating ConditionAltitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
Storage Condition0~95% relative humidity, -20~60°C
Display4.3-Inch capacitive touch screen
Fiber MagnificationX, Y, XY, X/Y : 320X Magnification
Power SupplyAC Input 100-240V, DC Input 9-14V
TerminalUSB2.0
Weigh1.6kg without battery / 1.9kg with battery
Size143H x 136W x 155D mm (including rubber bumper)
Products Tutorials
    No data
Product configuration
  • 280T
    280T
  • operating platform
    operating platform
  • Two layer cooling tanks
    Two layer cooling tanks

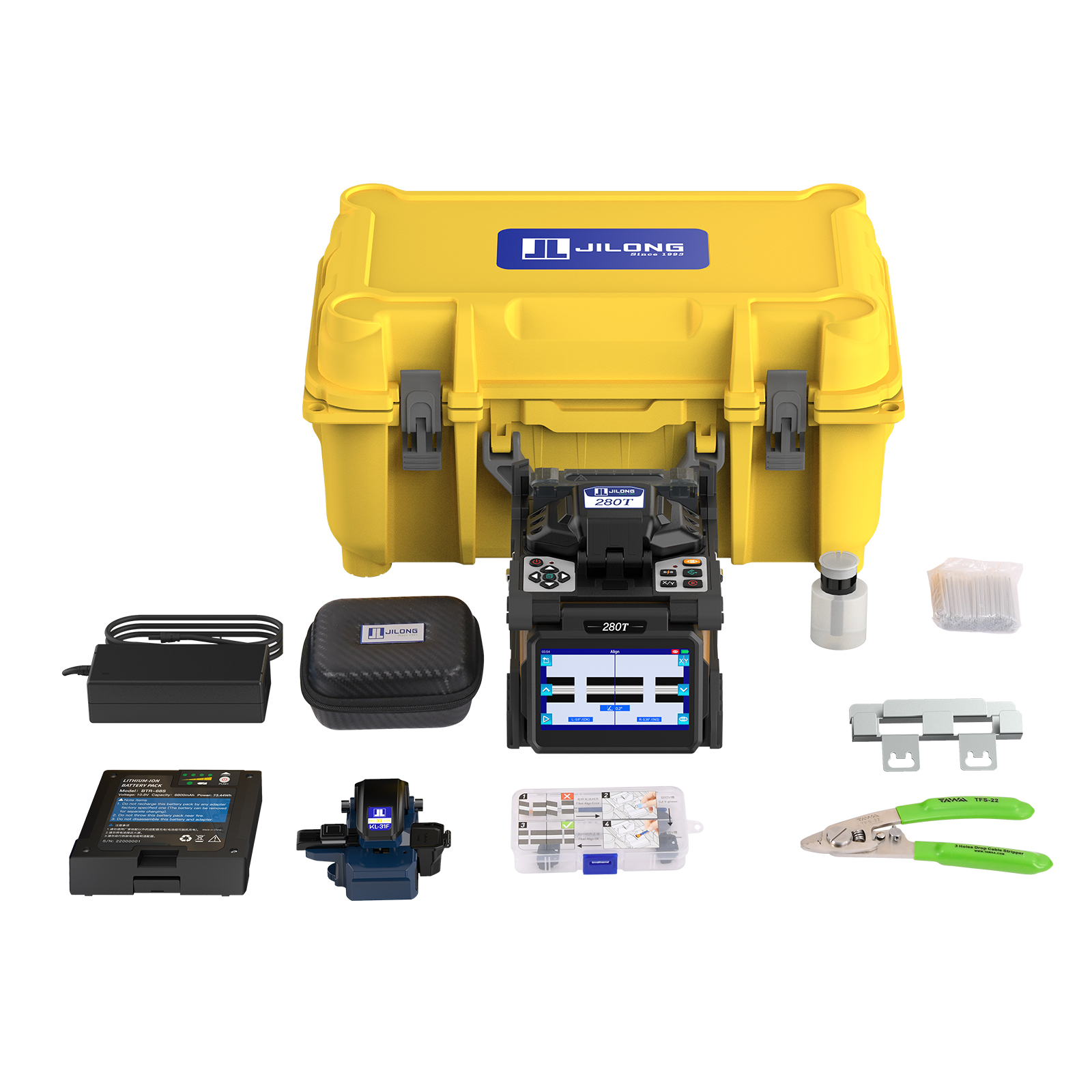

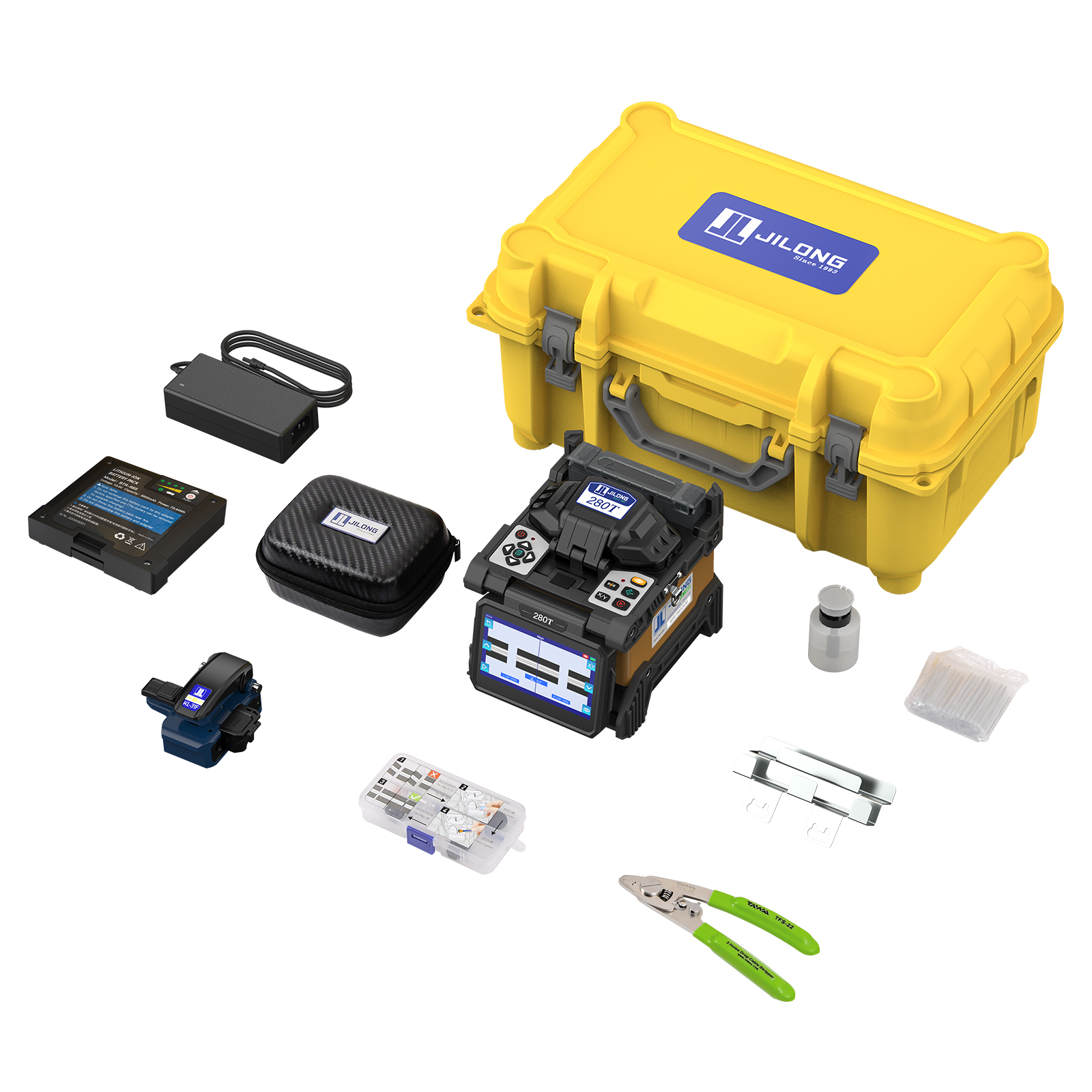

  • Packing list
    Packing list
