OPM-22/22V Mini Optical Power Meter

Category: 　Optical Power Meter

Manual Catalogue Tutorials VR

Core features

● Pocket size● Accurate measurement ±0.2 dB● With LED lights for dark environment● VFL with 10mW (Only for OPM-22V)● Universal adaptor for FC/SC/ST● Network test, judge signal transmission● Continuous use 60h (only in optical powermeter mode)● Lithium batter y USB-charging/AA Batteries (optional)● Automatic wavelength memory,7 wavelengths 850/980/1310/1490/1550/1625nm

Recommended Products

Description
Specification
Download
Tutorials
Configuration

OPM-22/22V Mini Optical Power Meter

Category:　Optical Power Meter

Request a quote consult

Online consultation Telephone

+86 4008836695

Multifunctional Optical Power Meter
● Mini size and light weight
● Integrated VFL/LED/network test functions
● Fast response, measurement error ±0.2dB
Pocket design Small and light, travel without pressure
● Pockets
● Halter
● Backpacks
7 test wavelengths are optional
● Press【λ】key to switch wavelength
● 850/980/1300/1310/1490/1550/1625nm
● Used in conjunction with a stable light source, the wavelength should correspond
10mW powerful red light source
● Strong light source and strong penetrating power
● Test distance up to 5-8km
● This function only supports OPM-22V
Equipped with LED lighting
● Strong lighting
● Convenient for line checking in dark environments
Network test function
● Support network cable sequencing
● External interface plug-in design to prevent loss
● Press the switch to pull out the external parts
Automatic judgment threshold
● You can set the threshold by yourself
● When the test value is lower than the set threshold, a red warning will appear on the screen

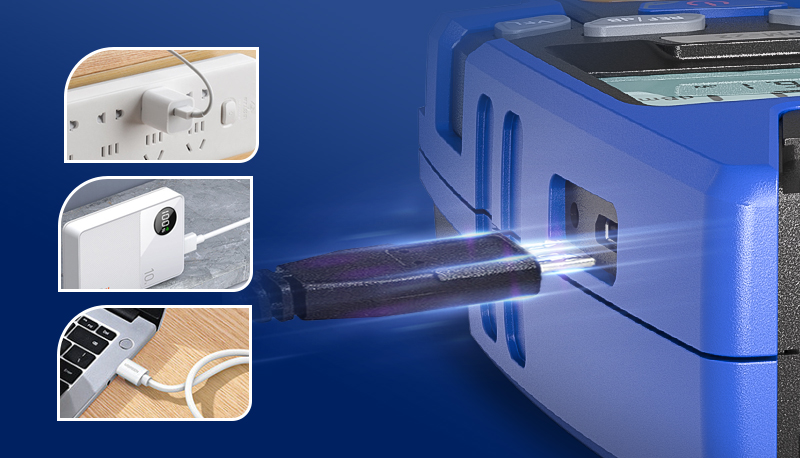

USB port for charging
● Support socket/charging treasure/USB port charging
● All interfaces are compatible (this function English website needs to be deleted)
Rubberized design enhances touch feel
● Delicate hand feeling, strong grip
● Rubber protection, drop-proof and shock-proof
Step 1: Press at the same time, when the display shows CRL, it enters the calibration procedure
Step 2: increase/decrease the value
Step 3: Press this key to save the value and exit the calibration program

Product Specifications

Model	OPM-22	OPM-22V Multi-function all-in-one machine
VFL	--	10mw
Network test	Inter face RJ-45
Wavelength	800 ~ 1700 (nm)
Detect or type	InGaAs
Connec tor	2.5mm Universal connector
Power measurement range	-70 ~ +6 dBm / -50 ~ +26 dBm
Measuement accuracy	±0.2dB
Standard wavelength	850/ 980/ 1300/ 1310/ 1490/ 1550/ 1625 (nm)
Display resolution	0.01dB
Operating temperature	-10 ~ +60℃
Storage temperature	-25 ~ +70℃
Auto-off time	10 min
Operating hours	Battery power : 20 hours (only the optical power meter works)
	Rechargeable: 60 hours (only the optical power meter works)
LED	Support
Power	AAA 1.5V batteries x 2
Dimensions	112 x 57 x 31 mm
Weight	120 g (Including batteries)

Product manual

OPM-22/22V Mini Optical Power Meter

Download

Products Tutorials

No data

Product configuration

Optical power meter
