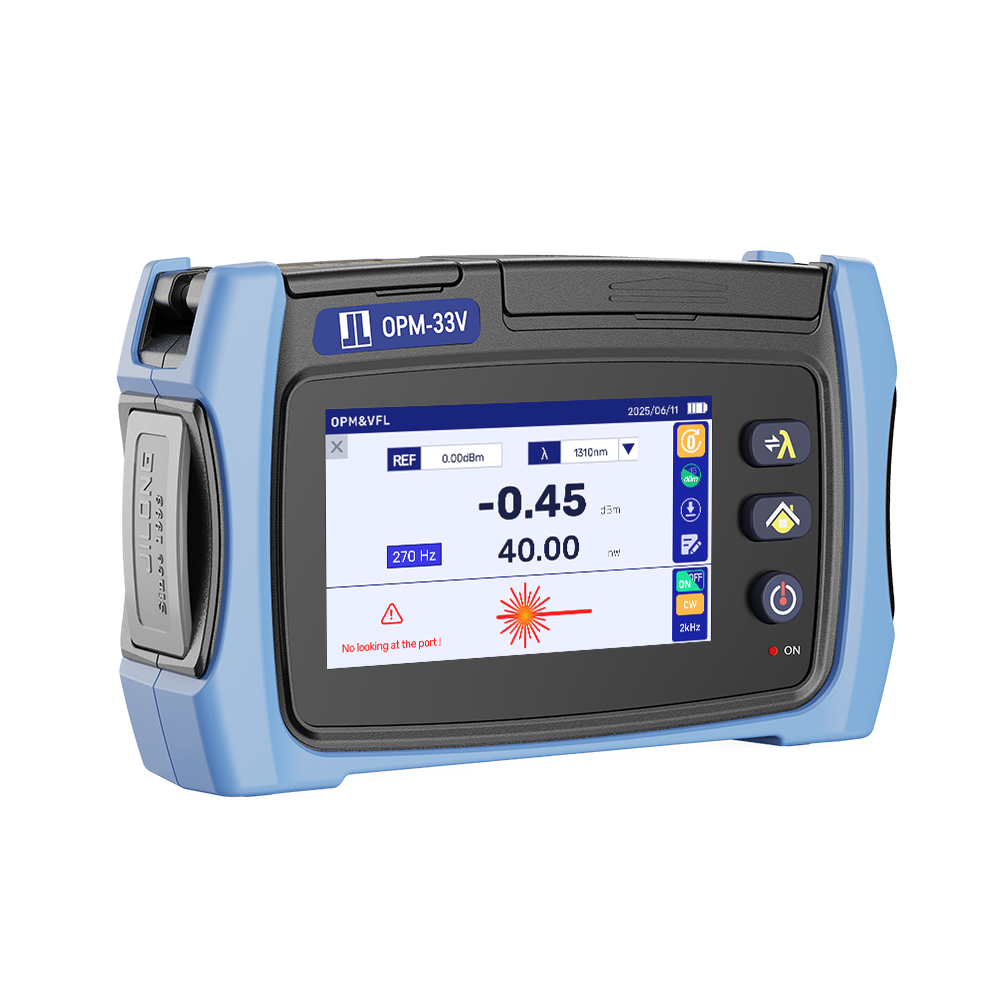

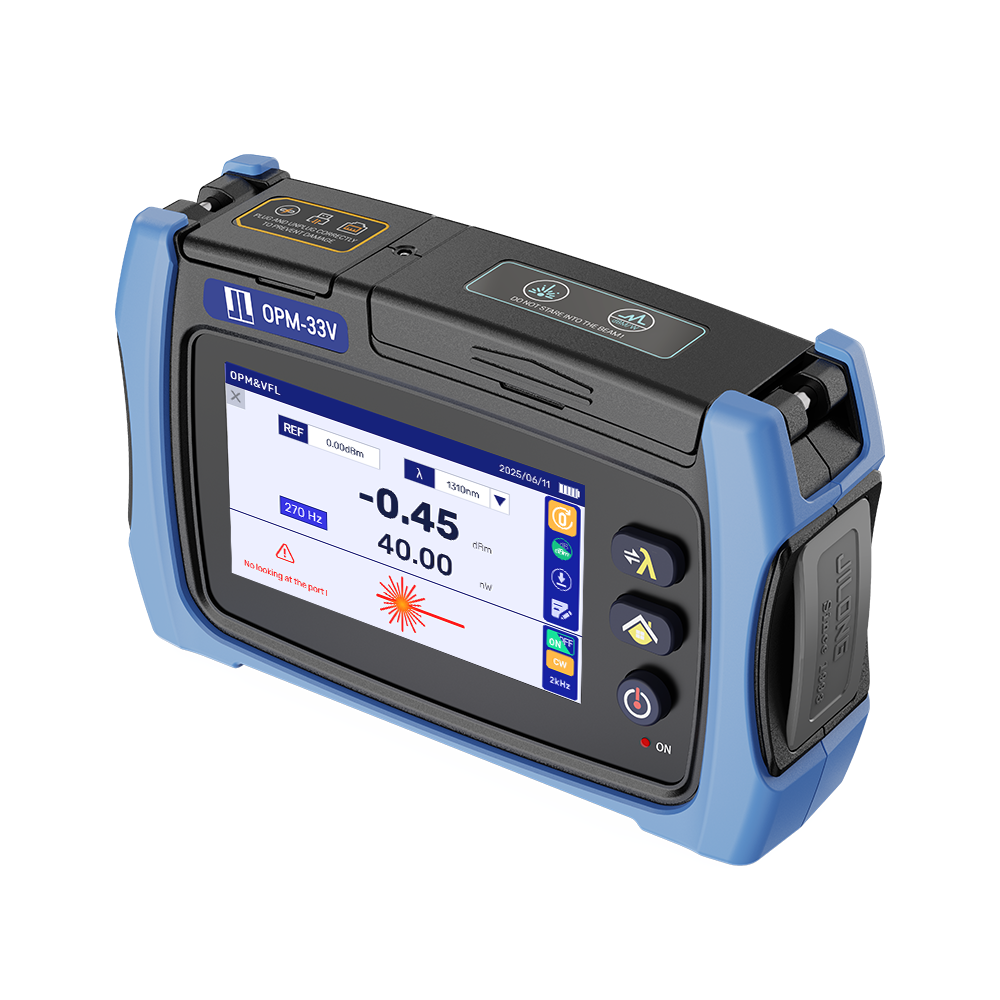

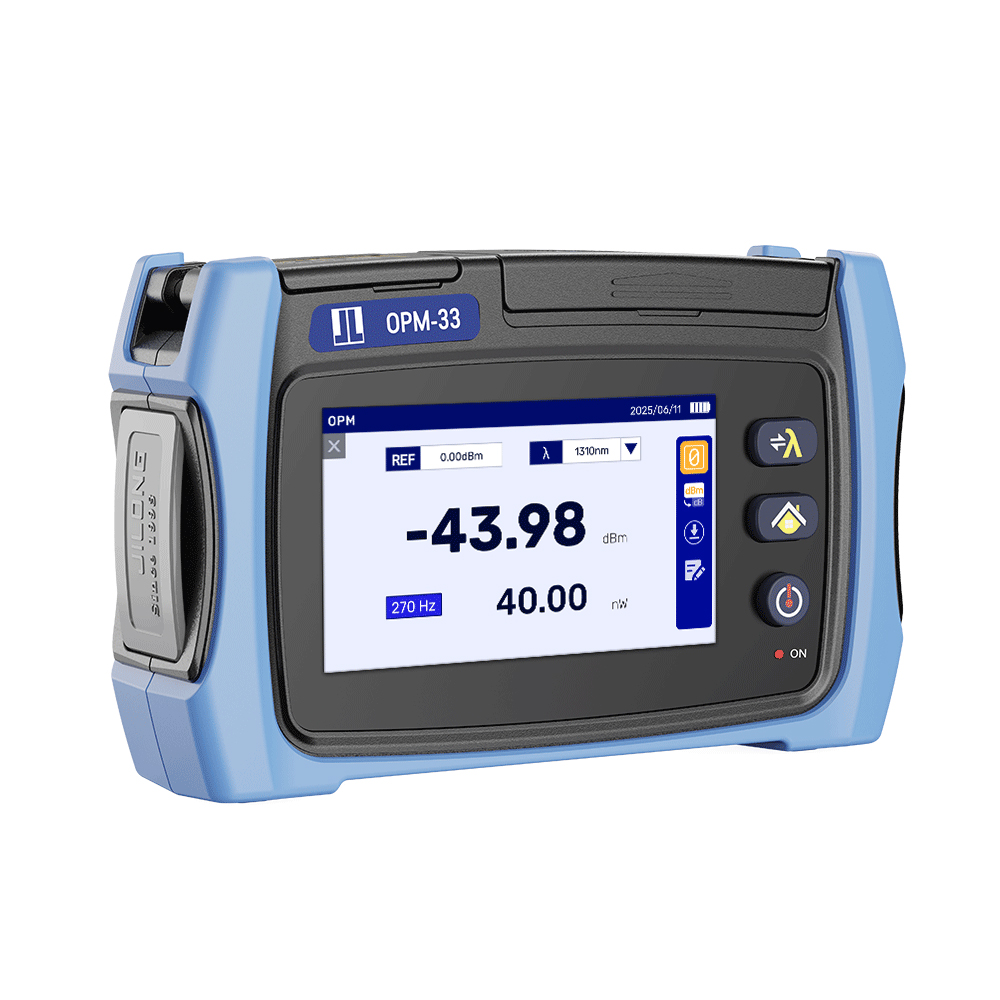

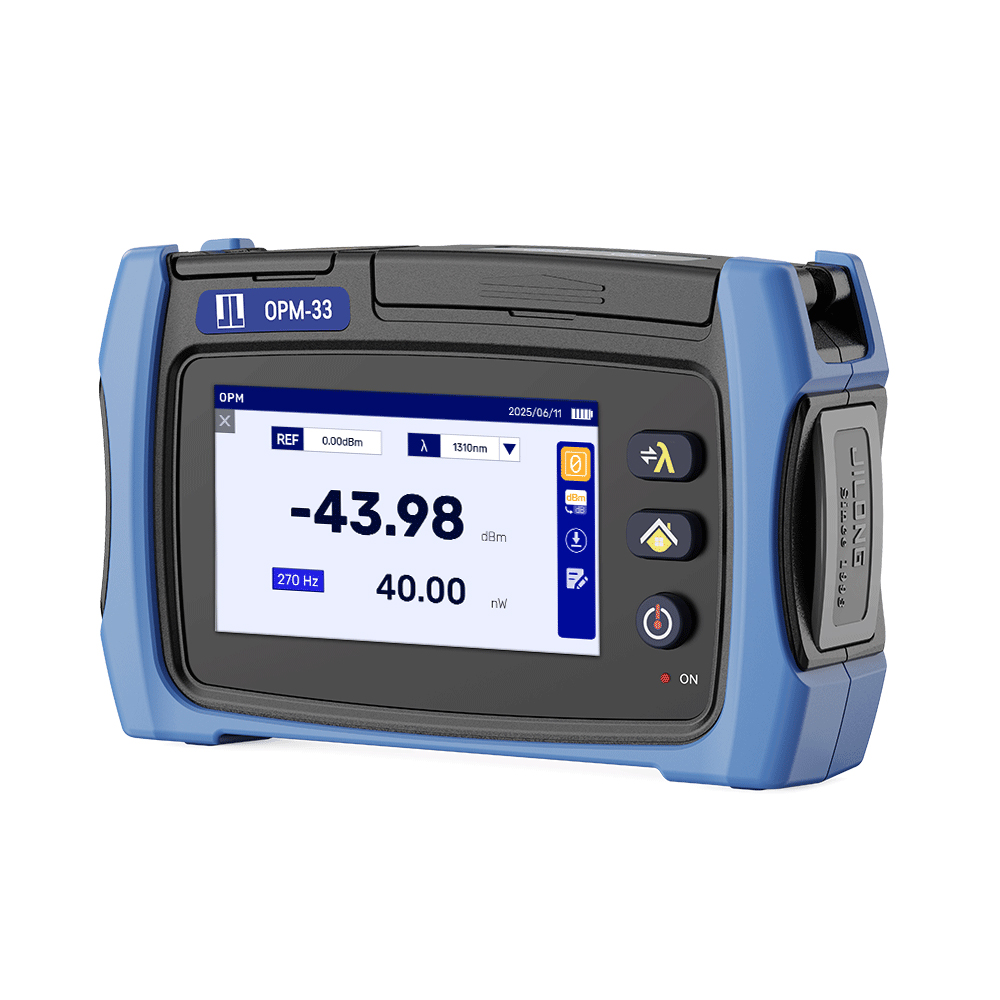

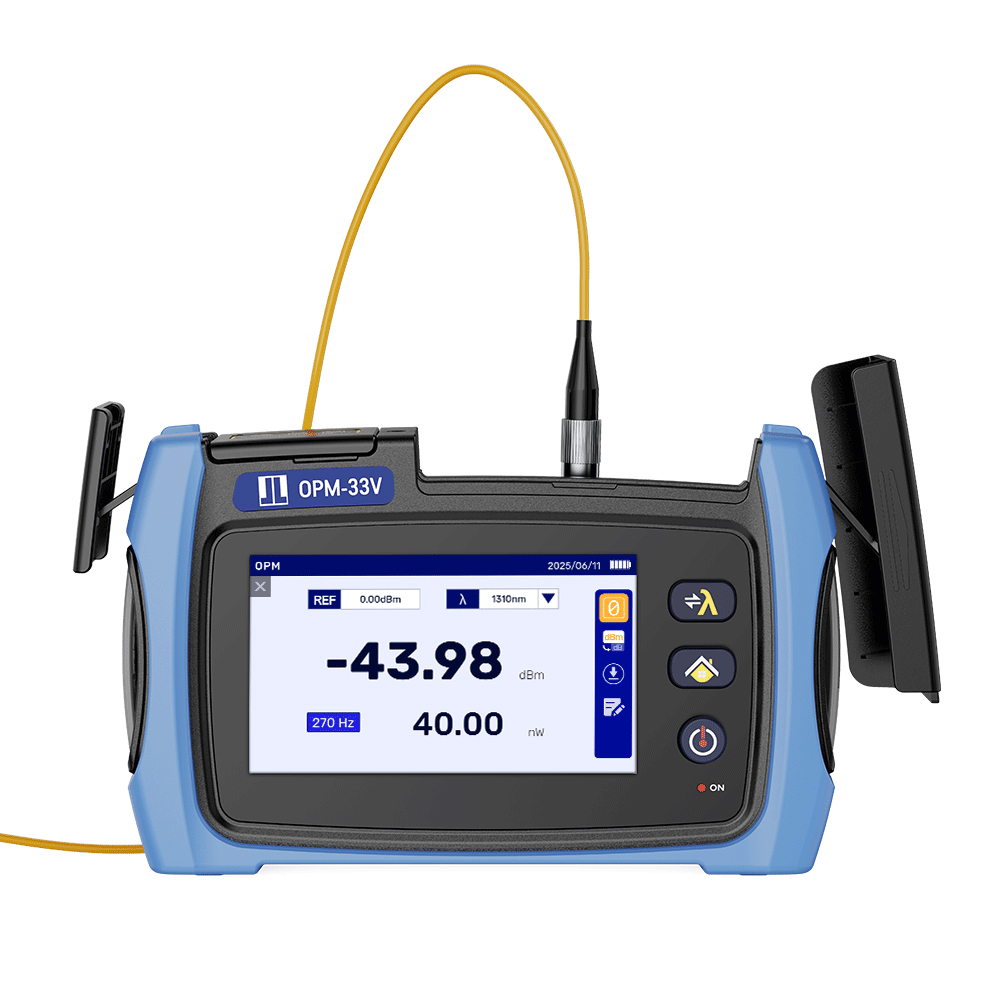

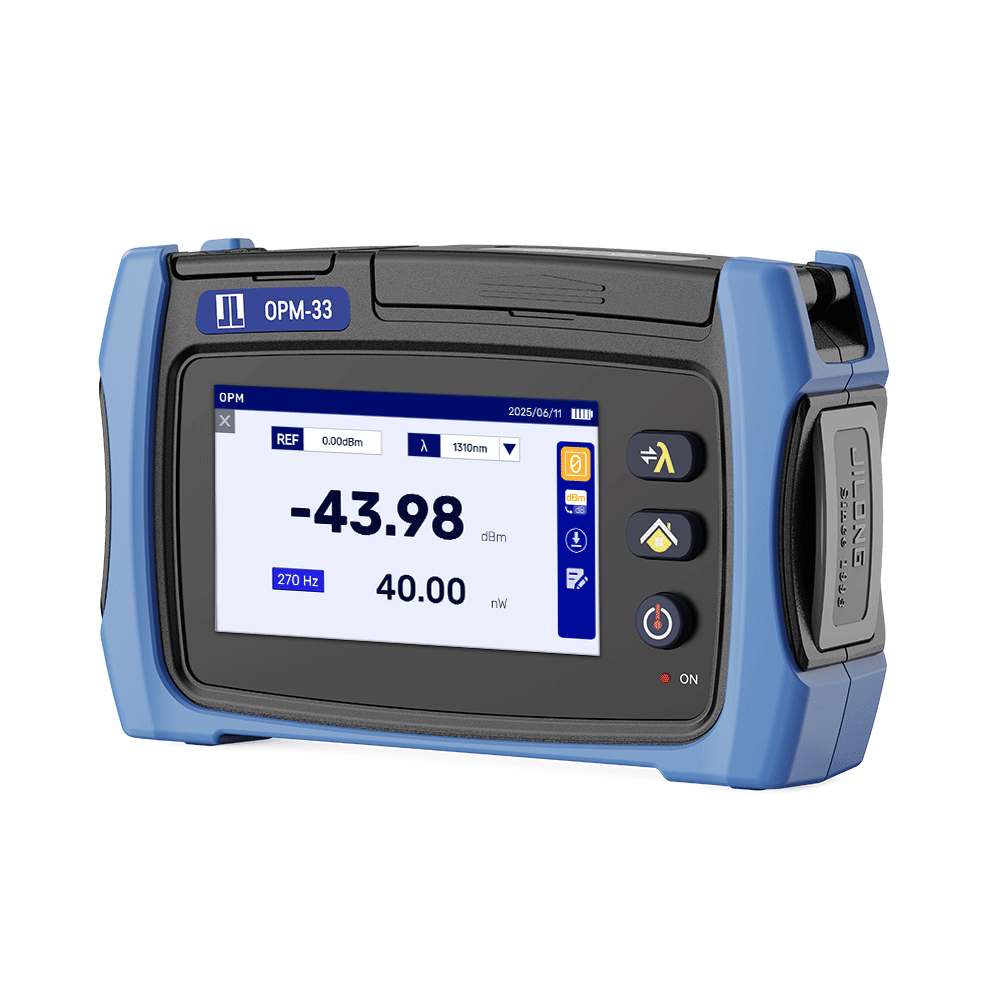

OPM-33V / OPM-33 OPM & VFL

Manual Catalogue Tutorials VR

Core features

4.3" HD Capacitive Touchscreen

9 wavelengths to meet your requirements

Powerful Beam. Effortless Trace

RJ45 Network Wire Sequencing

5000mAh High-capacity Battery

Recommended Products

Description
Specification
Download
Tutorials
Configuration

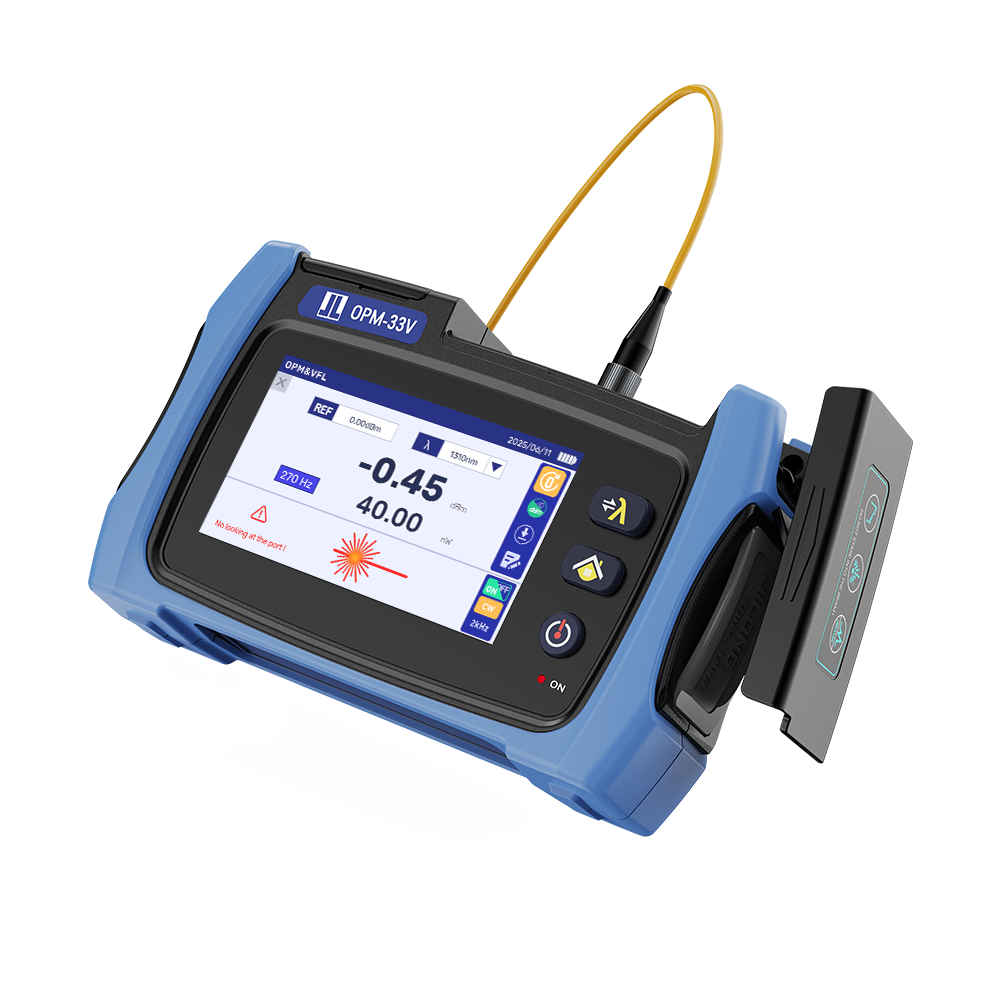

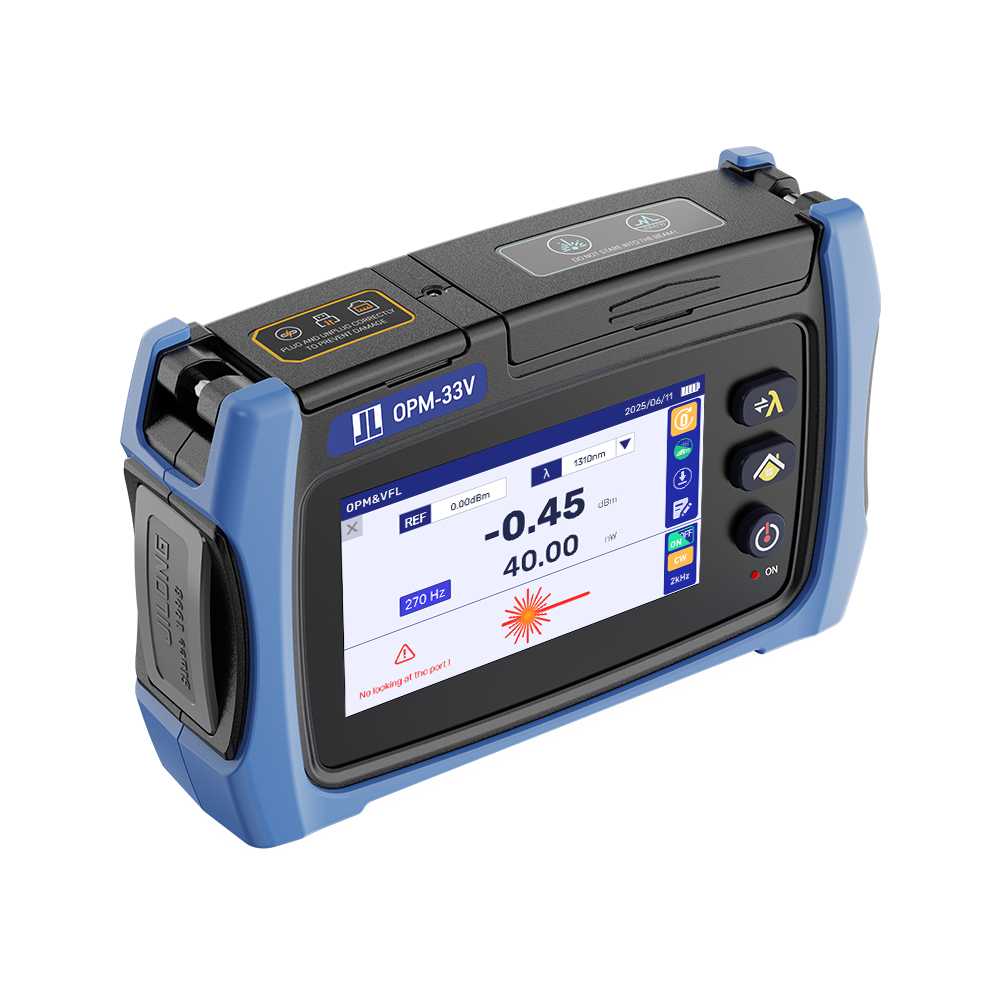

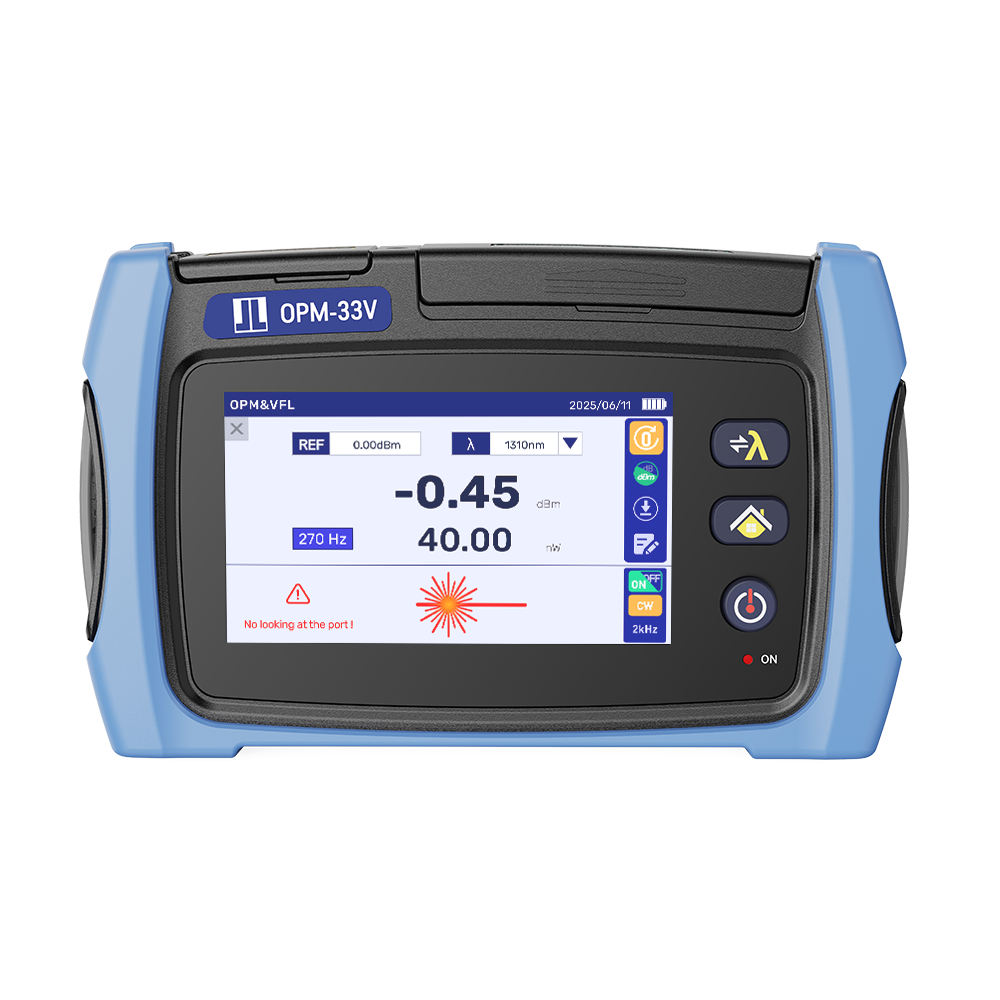

OPM-33V / OPM-33 OPM & VFL

Request a quote consult

Online consultation Telephone

+86 4008836695

Features

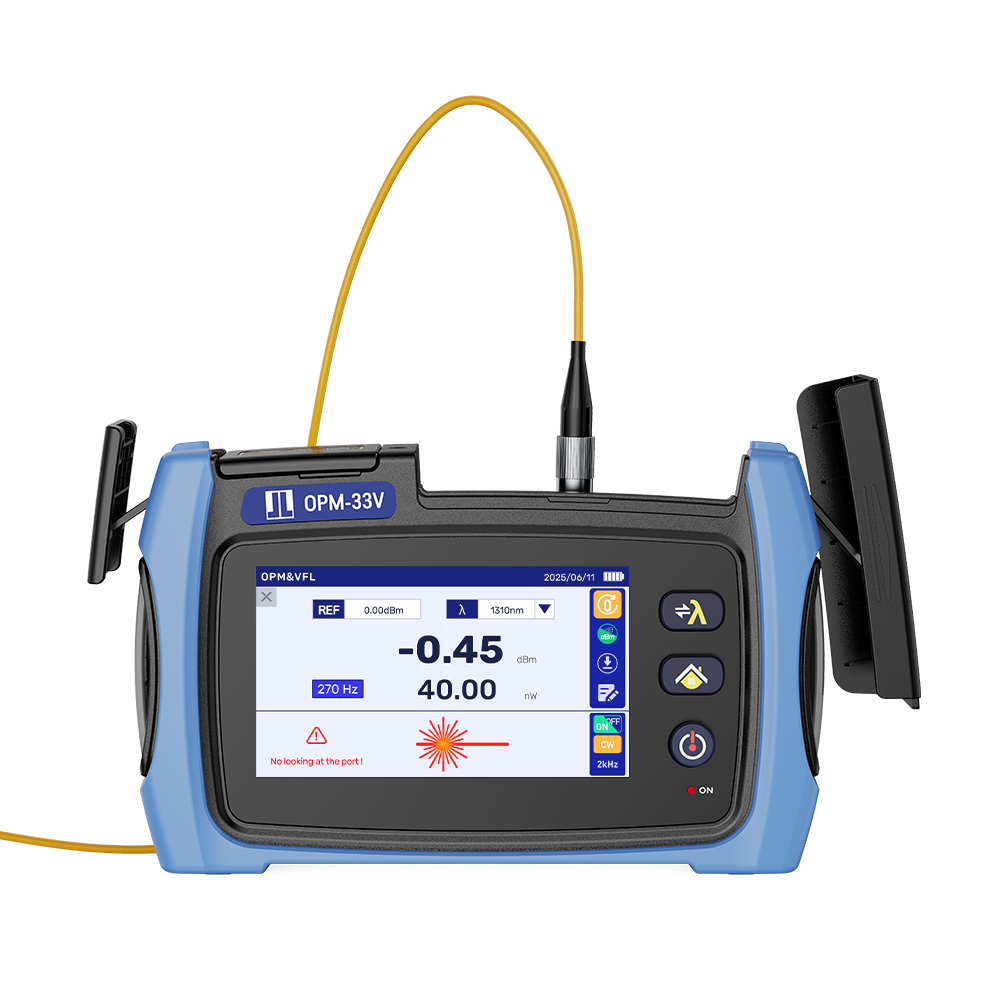

OPM-33V OPM & VFL
● 4.3" HD Capacitive Touchscreen
● RJ45 Network Wire Sequencing
● 5000mAh High-capacity Battery

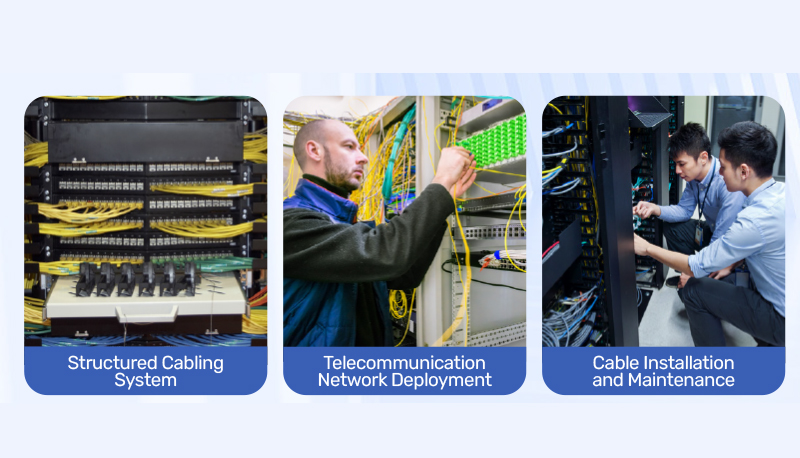

Application scenarios
● Structured Cabling System
● Telecommunication Network Deployment
● Cable Installation and Maintenance

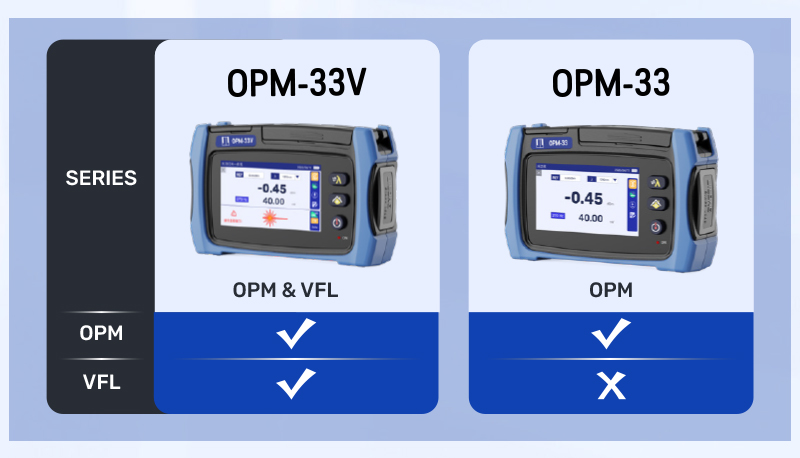

Two Series

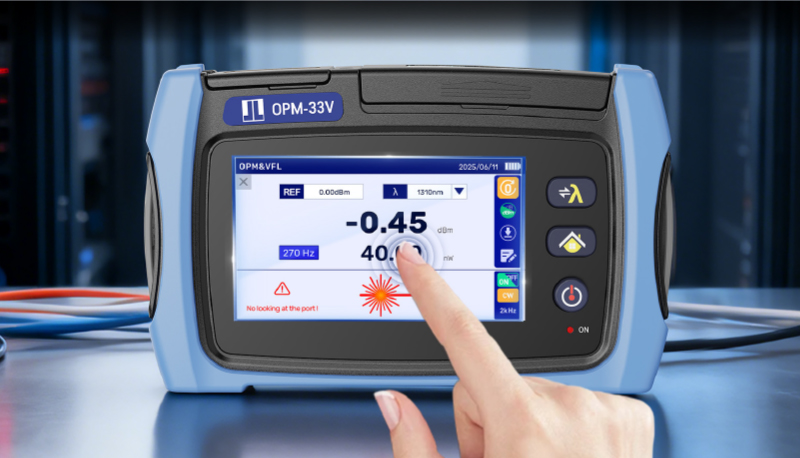

4.3" HD Capacitive Touchscreen
Swipe to switch functions—3x faster than traditional buttons. The display remains clearly visible even in direct sunlight.

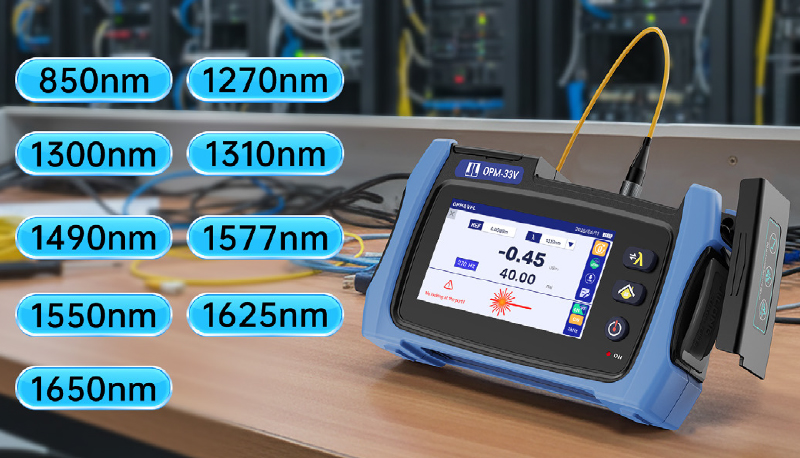

9 wavelengths to meet your requirements
Switch between 9 wavelengths with one key. A single tool that doubles efficiency by meeting all your cross-scenario needs.

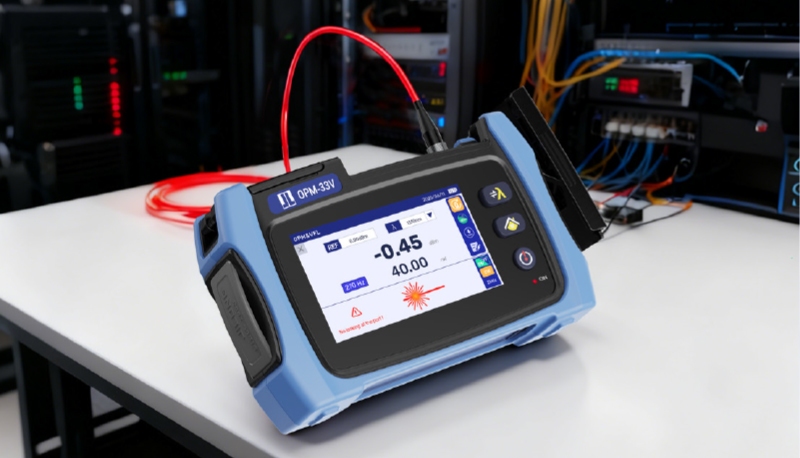

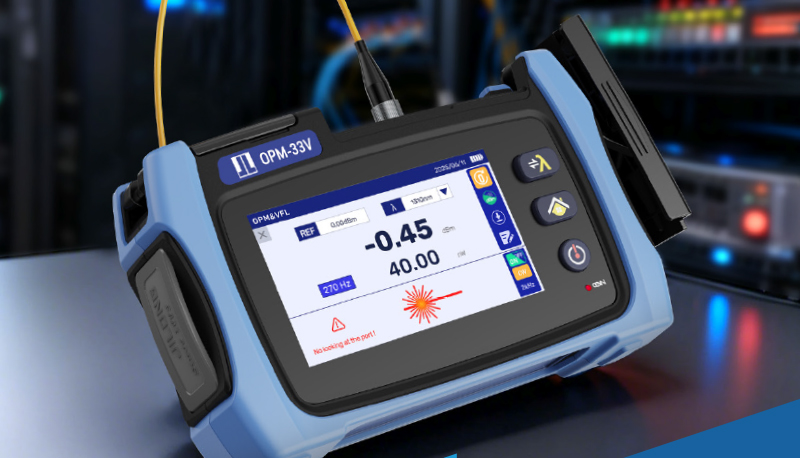

Powerful Beam. Effortless Trace
Locate fiber faults by their red glow from a distance—eliminating the need for close-up, section-by section inspections and reducing repetitive climbing, crawling, and bending.

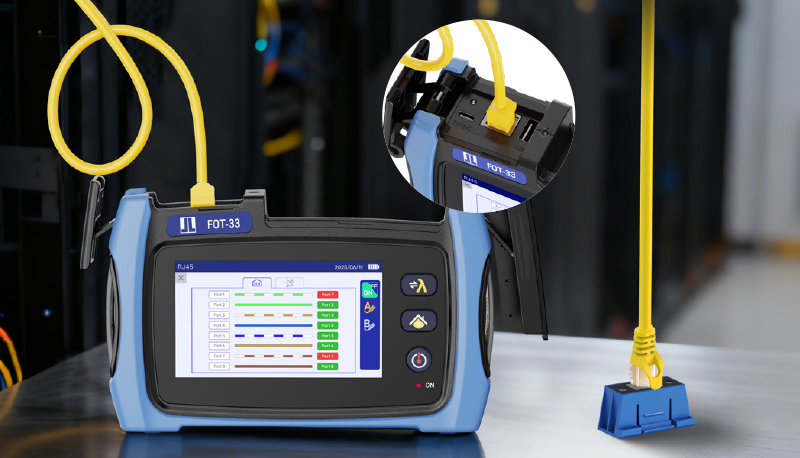

RJ45 Network Wire Sequencing
Pinpoint every hidden flaw to build and maintain networks with greater efficiency.

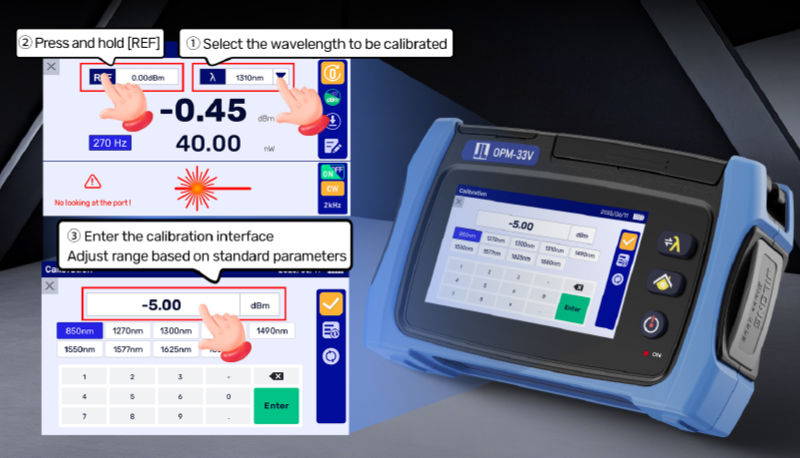

User-initiated Calibration
No More Ship-and-Wait. Just immediate diagnostics and controlled costs.
Hidden Holder Design
Tackle handheld inaccuracy. Boost your efficiency. Minimize operator fatigue.

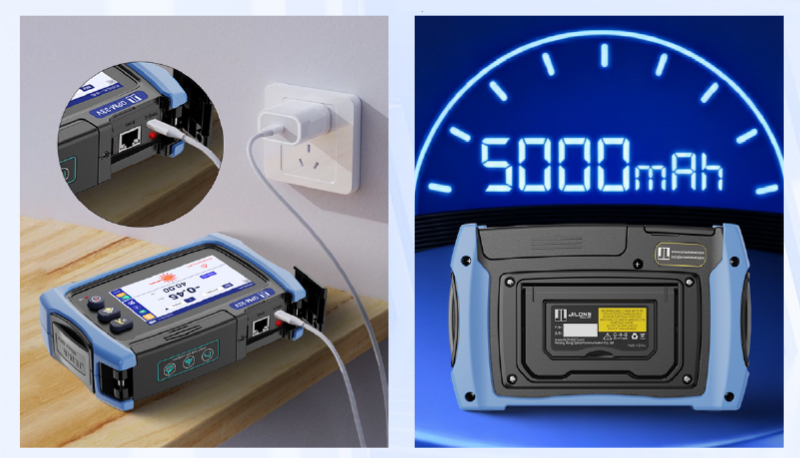

Type-C Charging

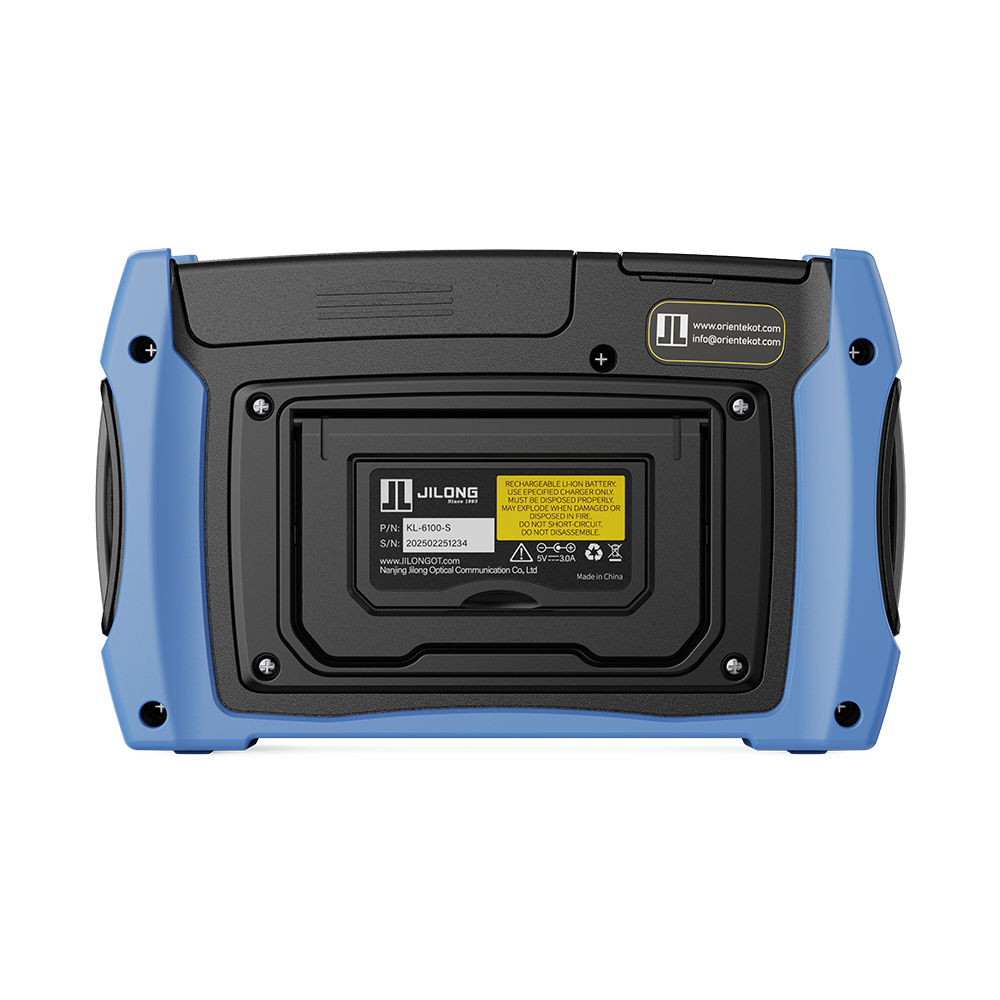

5000mAh High-capacity Battery
● Universal power. Unpacked convenience.
● No matter the environment. No interruptions to your work.
Built-in lighting for easier operation.

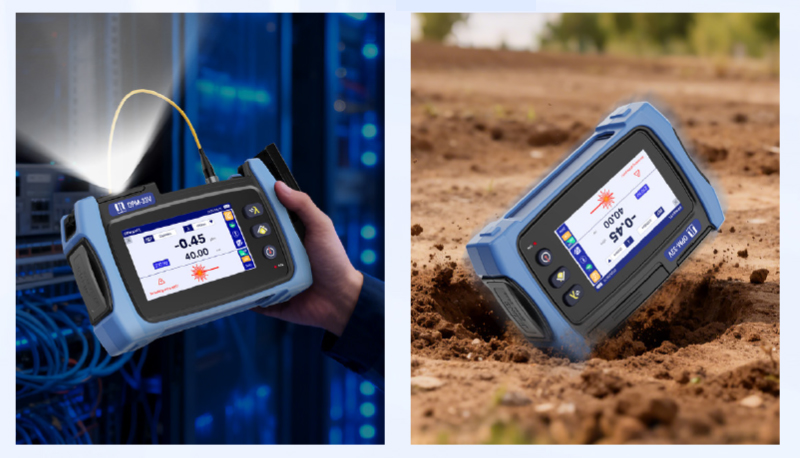

All-Body Shock-Absorbing Rubber Casing
● High-brightness built-in work light. Enables effortless cable work in low light
● Rubber design reduces shock, falls, and bumps, protecting the machine

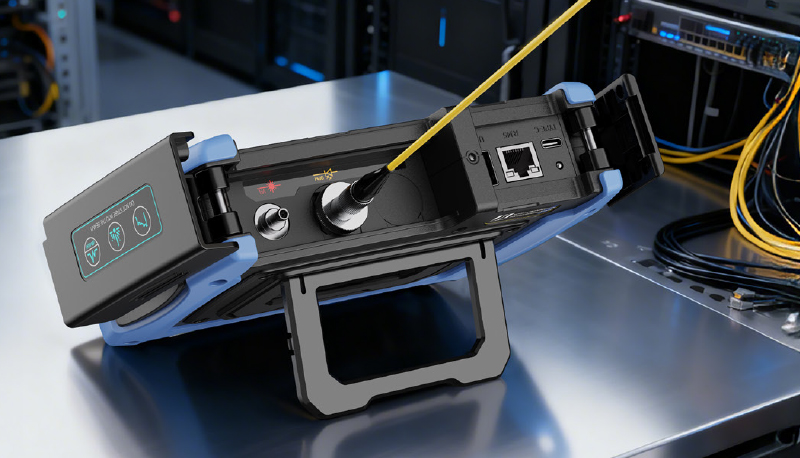

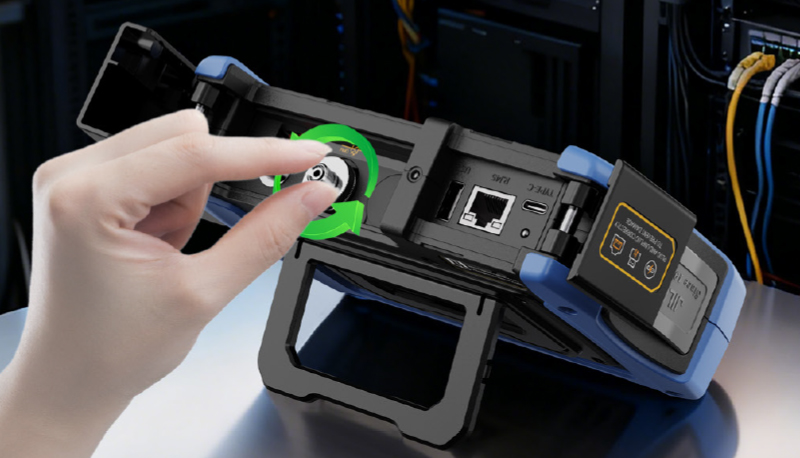

Interchangeable Universal Port Design
Designed to sustain peak performance by cutting avoidable return costs and unplanned downtime.

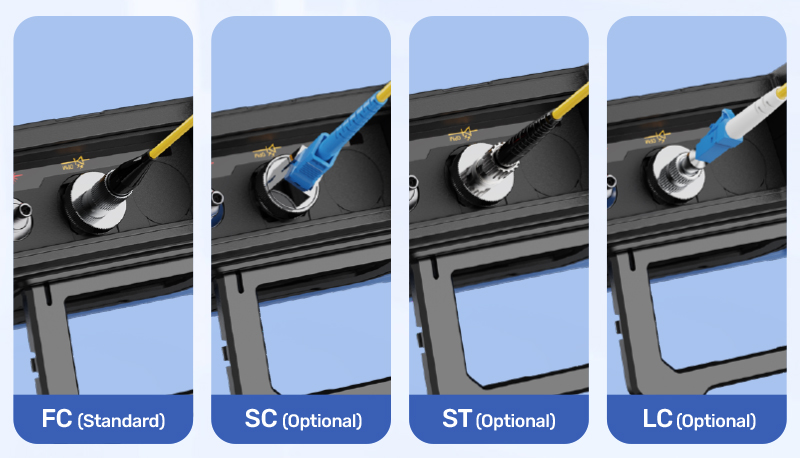

Supports FC, ST, SC, and LC Adapters

Product		OPM & VFL	OPM

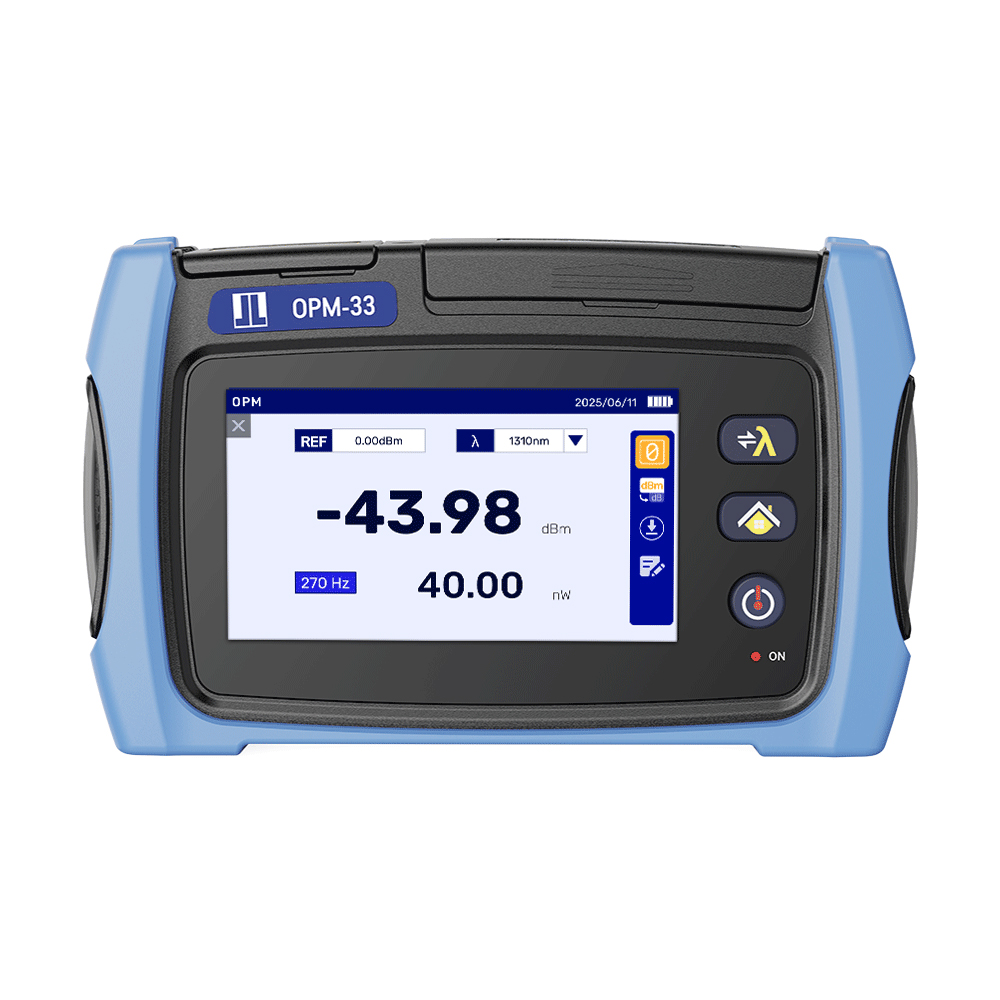

Type		OPM-33V	OPM-33
OPM Parameters	Wavelength Range (9)	850~1650(nm)
	Calibration Wavelength(9)	850/1270/1300/1310/1490/1550/1577/1625/1650(nm)
	Power Measurement Range	-70~+6(dBm)
	Uncertainty/Accuracy	＜(±0.2dB or ±5%)
	Power Stability	±0.1dB
	Resolution Ratio	0.01dB
	Internal Storage	900
	User Self-Calibration	√
VFL Parameters	Operating Wavelength	650±10(nm)	/
	Optical Source	LD Laser Source
	Output Power	10mW
	Operating Mode	CW (Continuous Wave) or Modulated Light
	Modulation Frequency	CW，2kHz
	Laser Safety Class	Class 3R
General Parameters	Auto Power-Off Time	10min
	Language	English, Chinese, Spanish, French, Portuguese, Russian, Thai, Korean
	Optical Fiber Port	FC/UPC(SC/UPC Optional)
	Display Screen	4.3-inch color LCD display screen

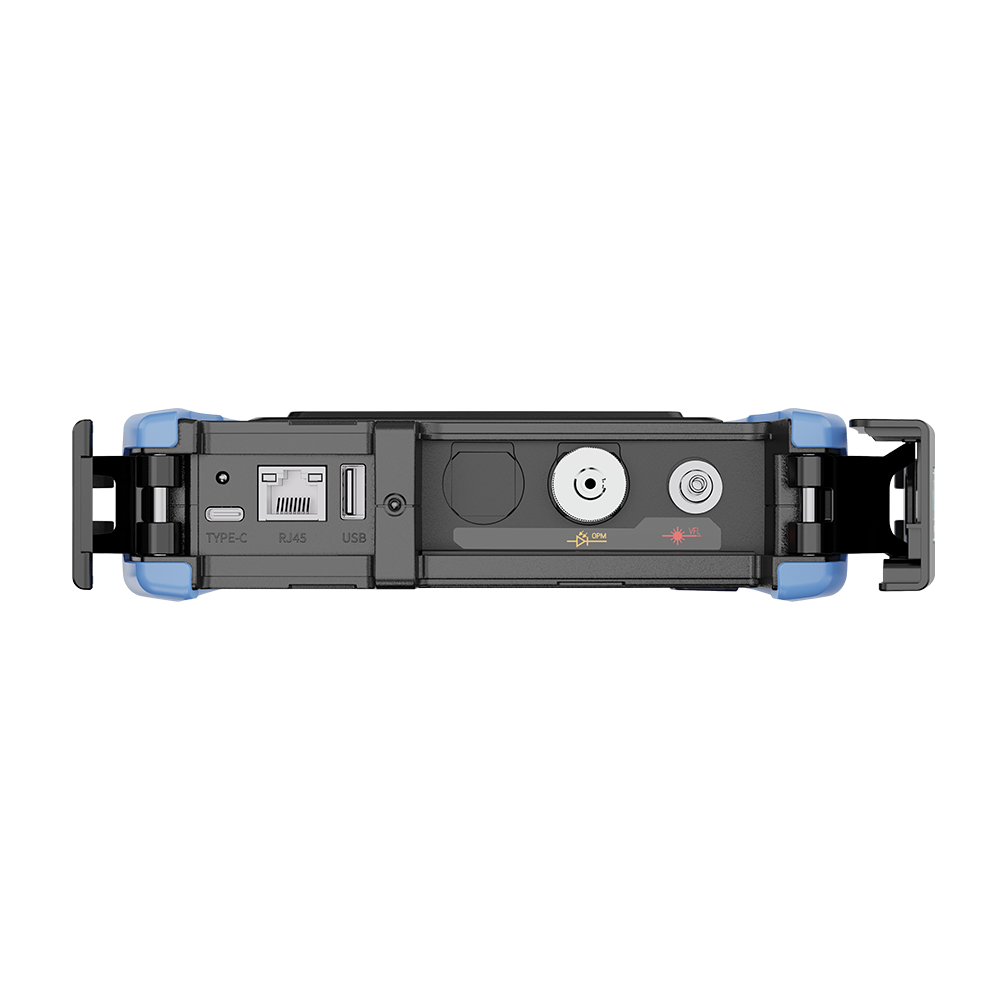

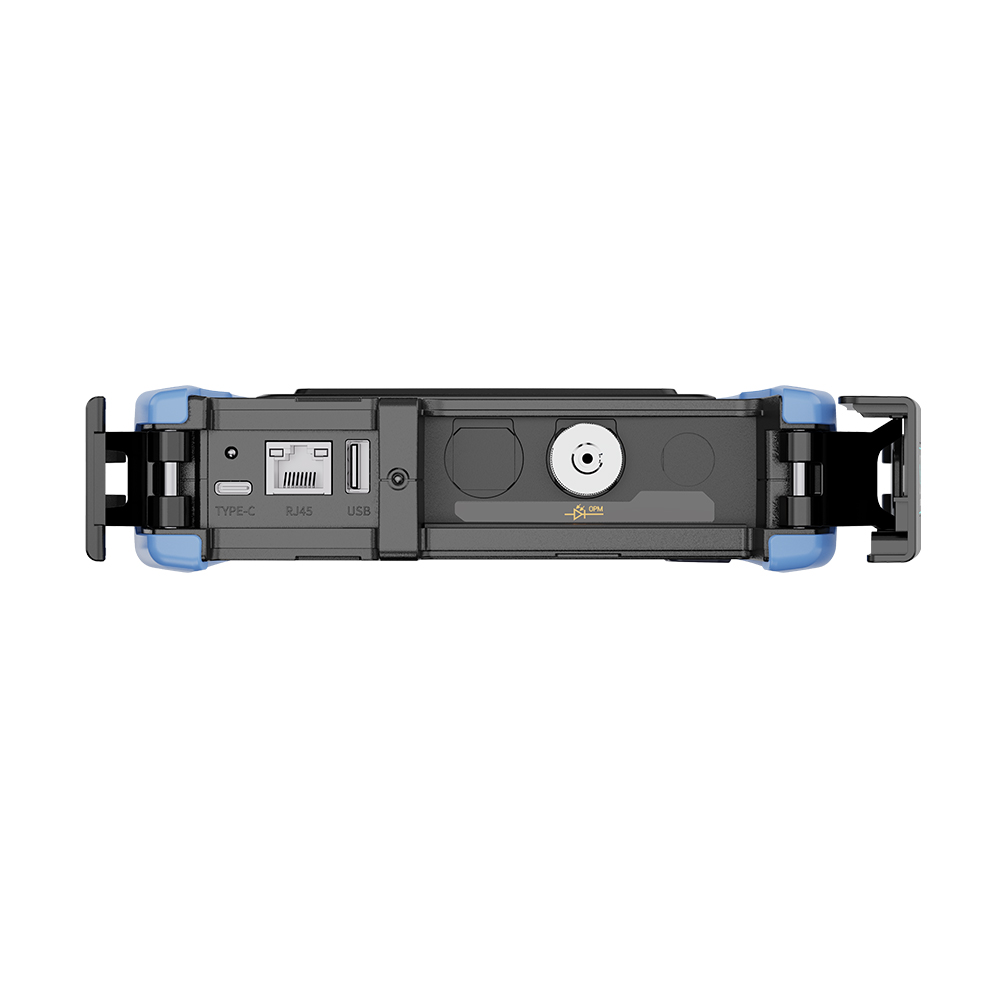

	Port	Charging Port x1，USB 2.0x1，RJ45x1
	Working Temperature	-10-50℃(0-40℃ for use with power, 0 to 35 ℃ battery charging)
	Storage Temperature	-20~60°C
	Height	4000 m
	Humidity	0 to 90% RH (20%-90% 739874 AC adapter, non-condensing)
	Power Mode	100-240V AC, 50/60Hz (AC adapter)
	Battery	3.7V, 5000mAh, ≥18.5Wh
	Lighting	Light Intensity>15000mcd
	Data Storage	Memory: Save 100 pieces of data for each wavelength（OPM）; External Storage:USB
	Size/Weight	179 mm (W)x 112 mm (H) x 48 mm(D/0.6 kg (Unit + Battery)
