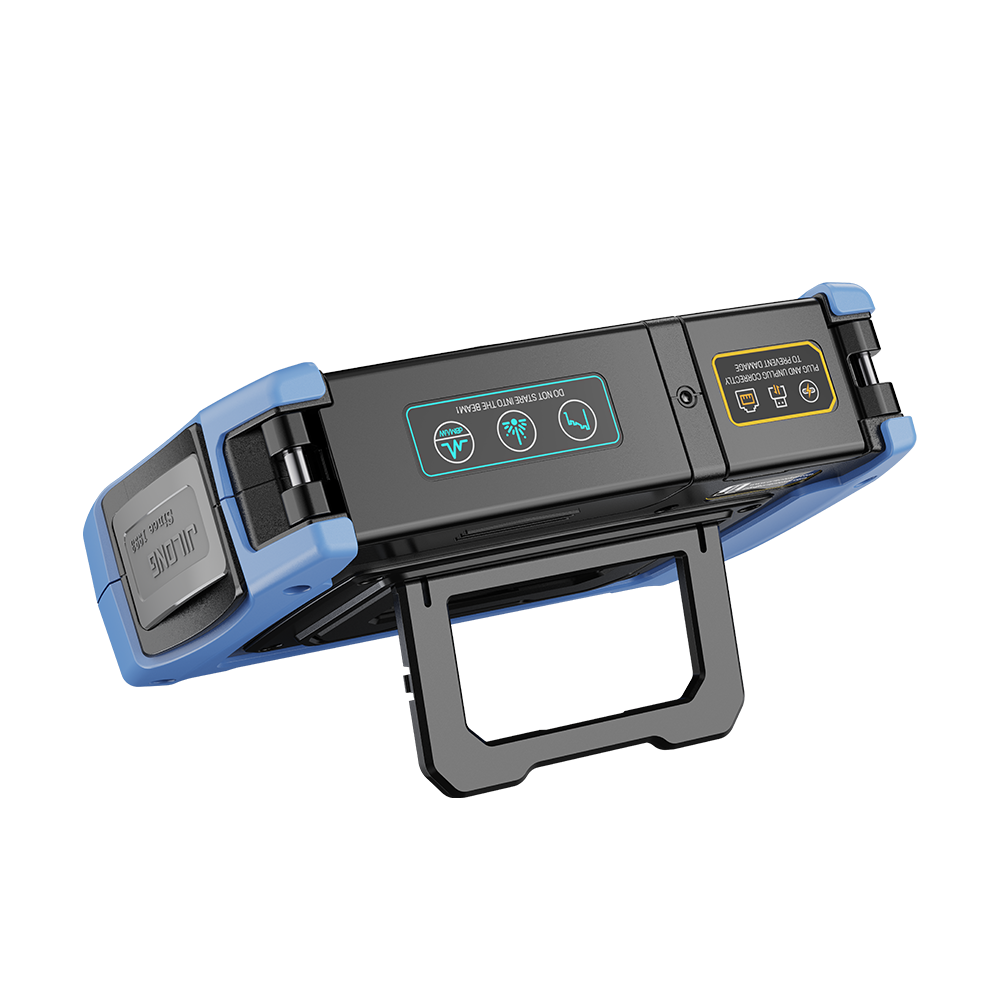

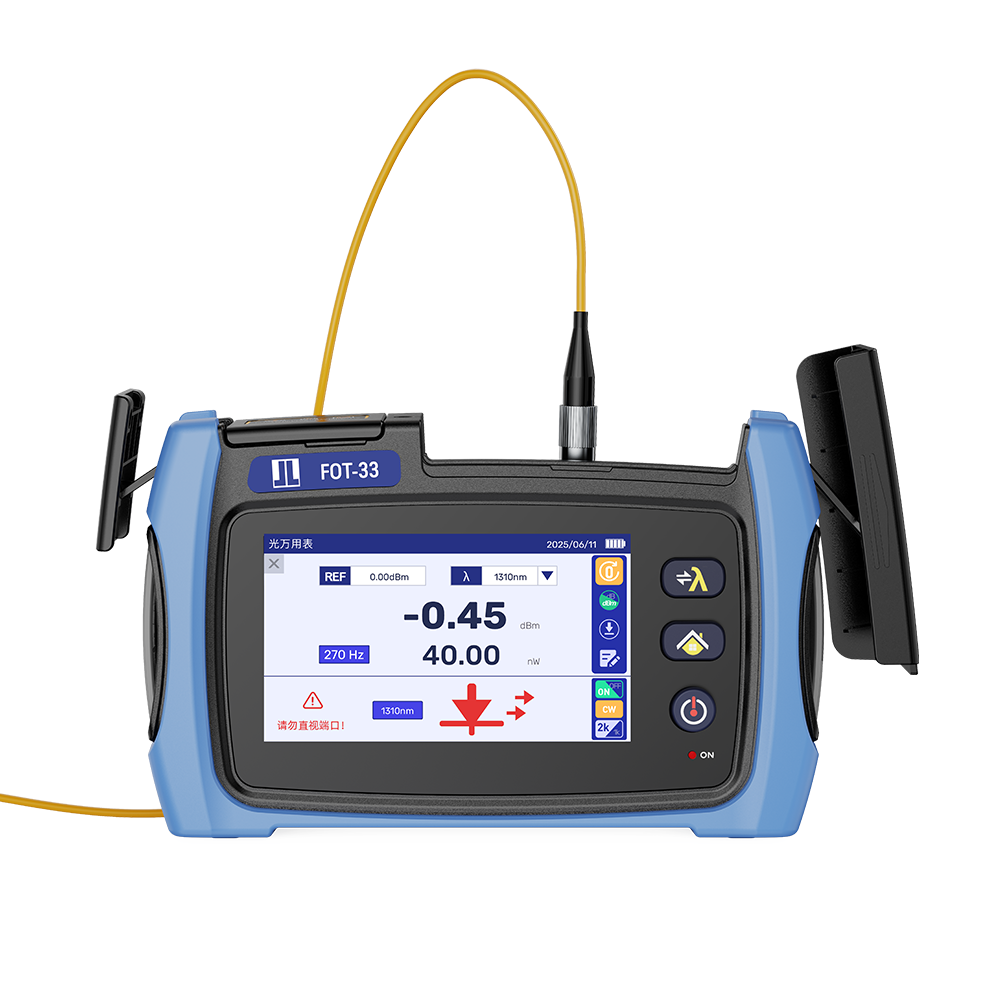

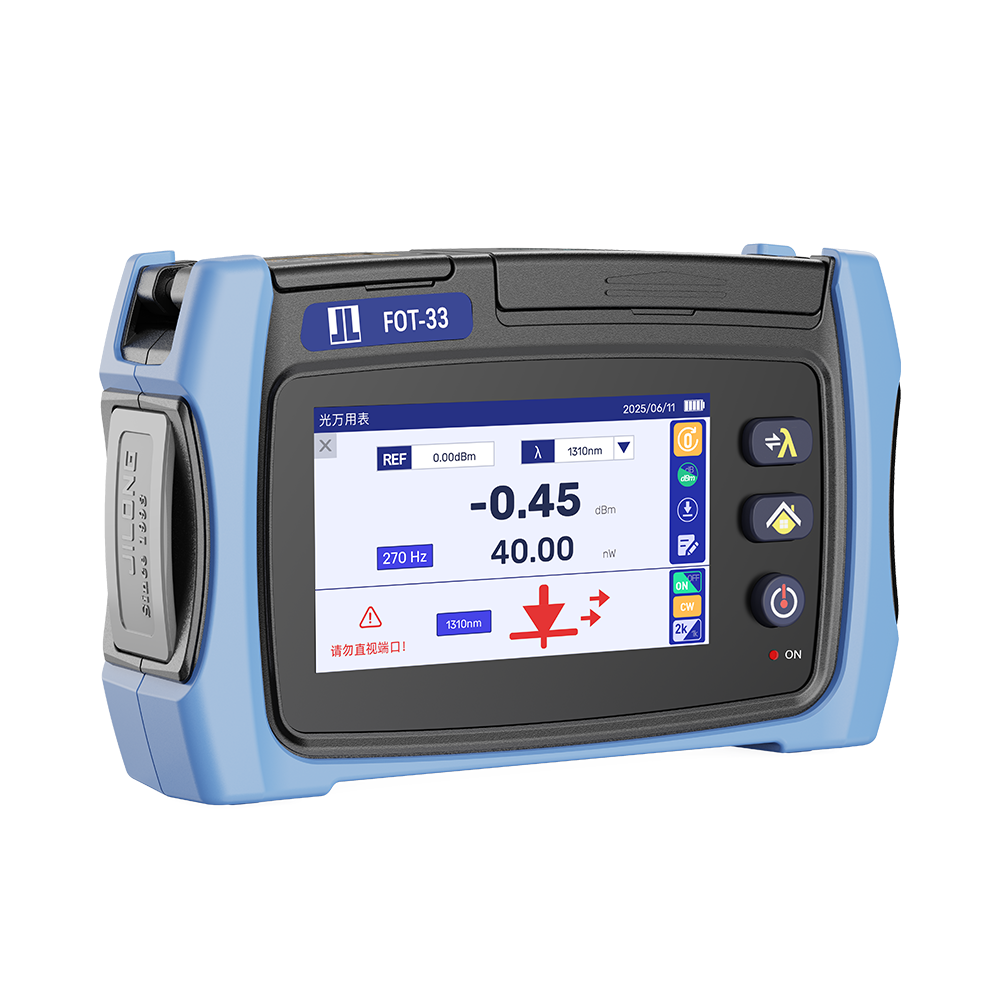

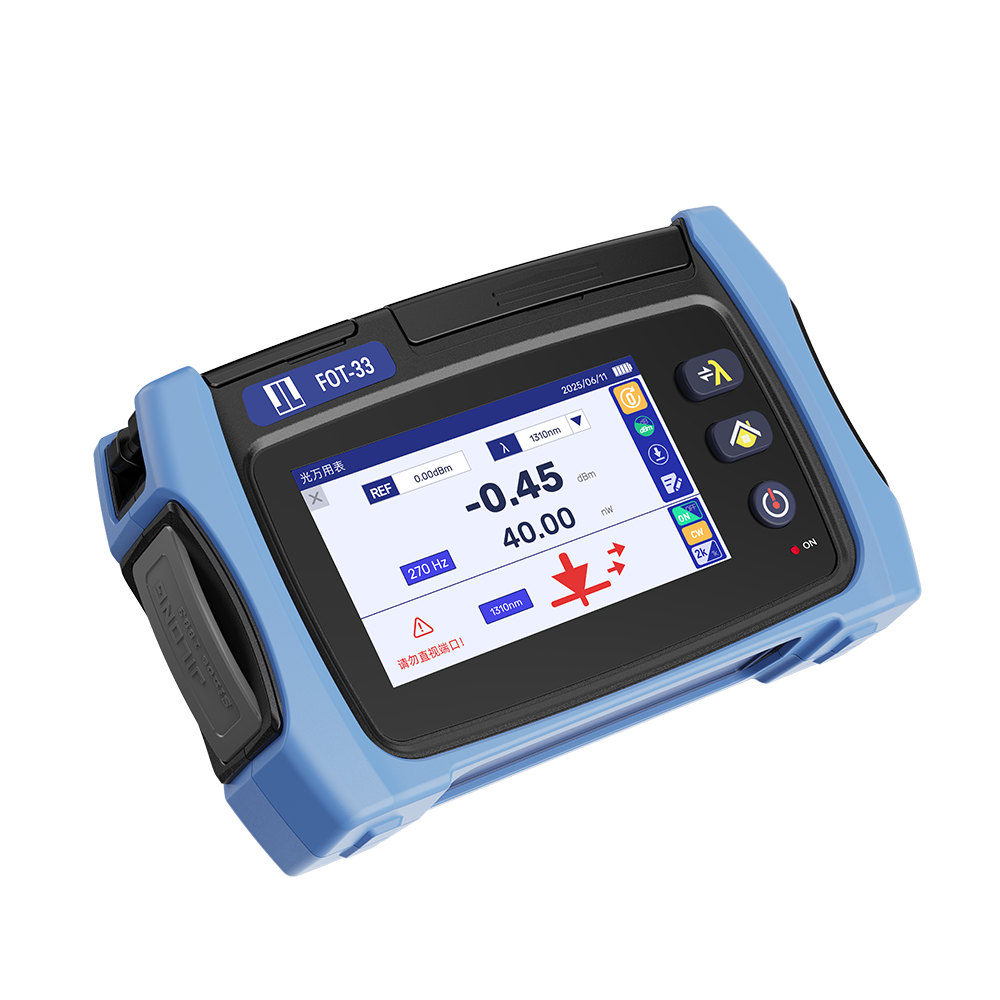

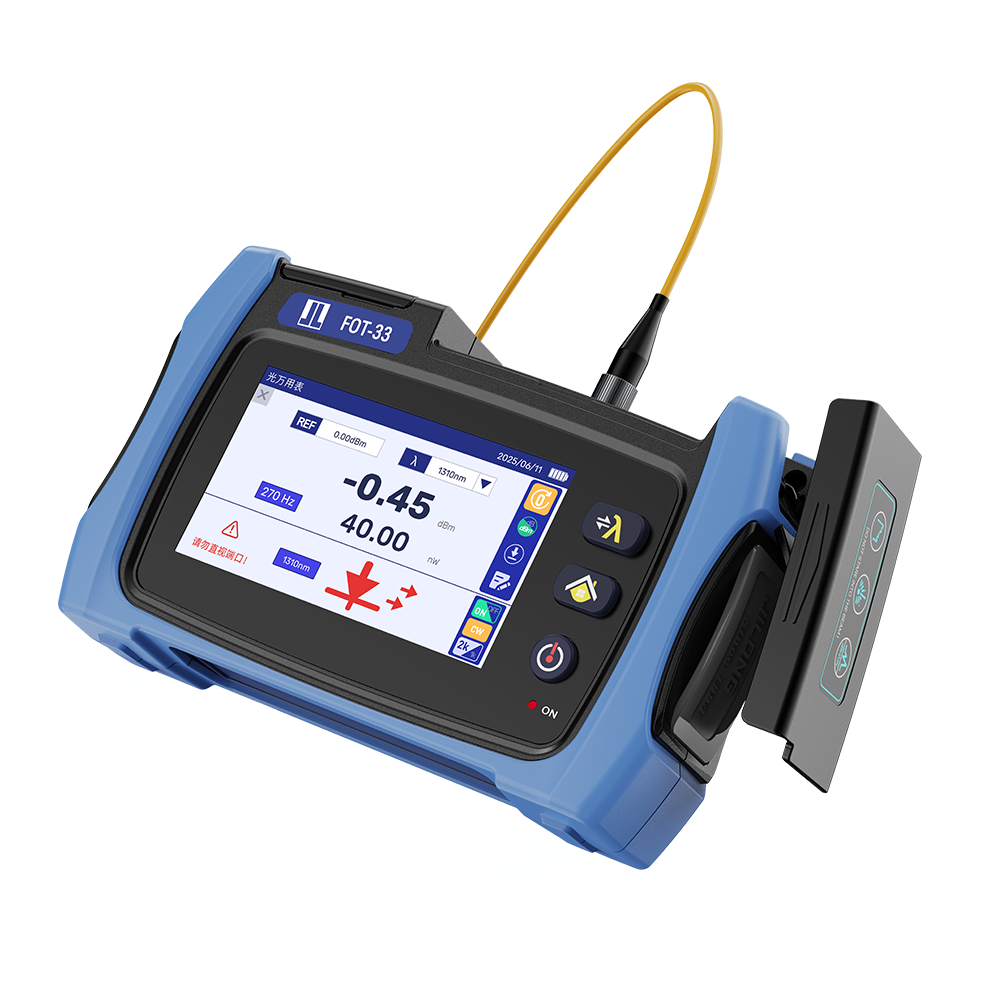

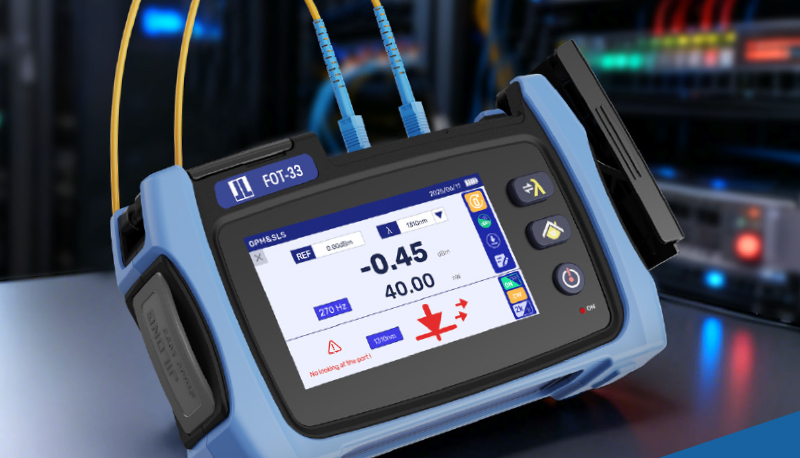

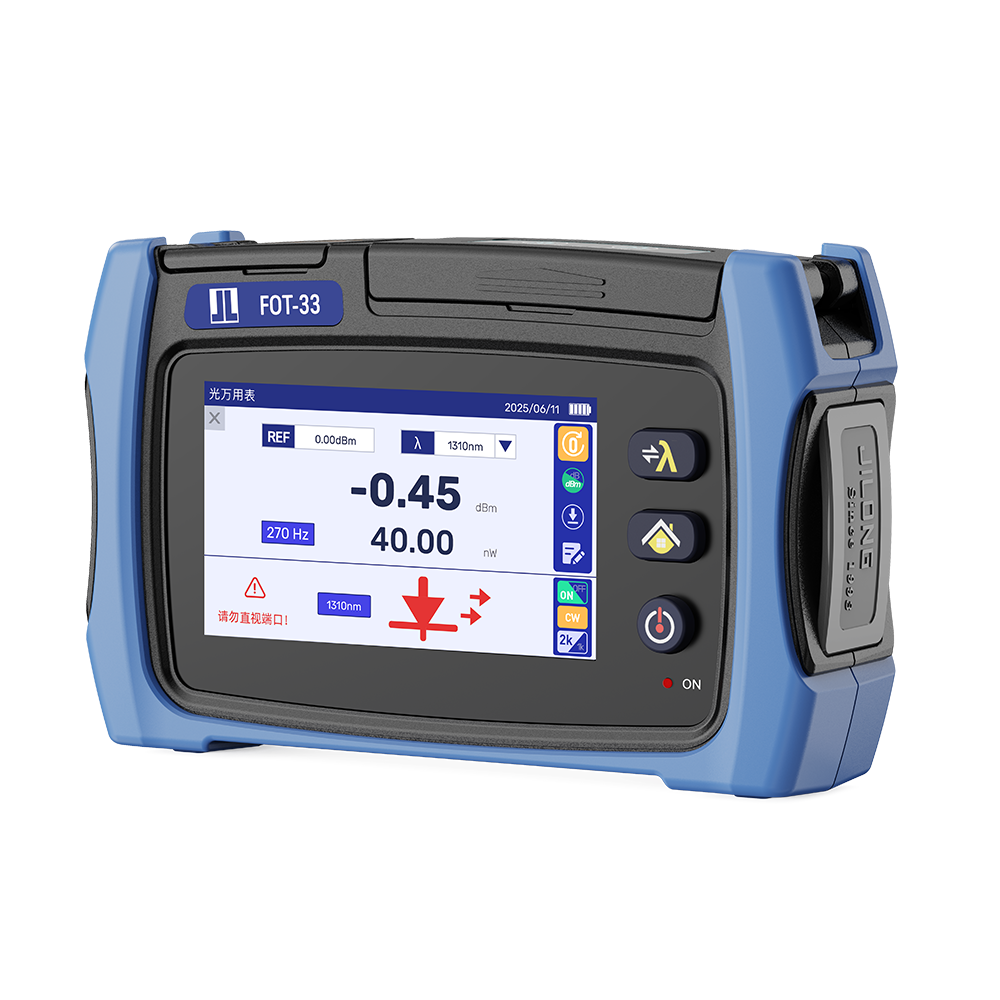

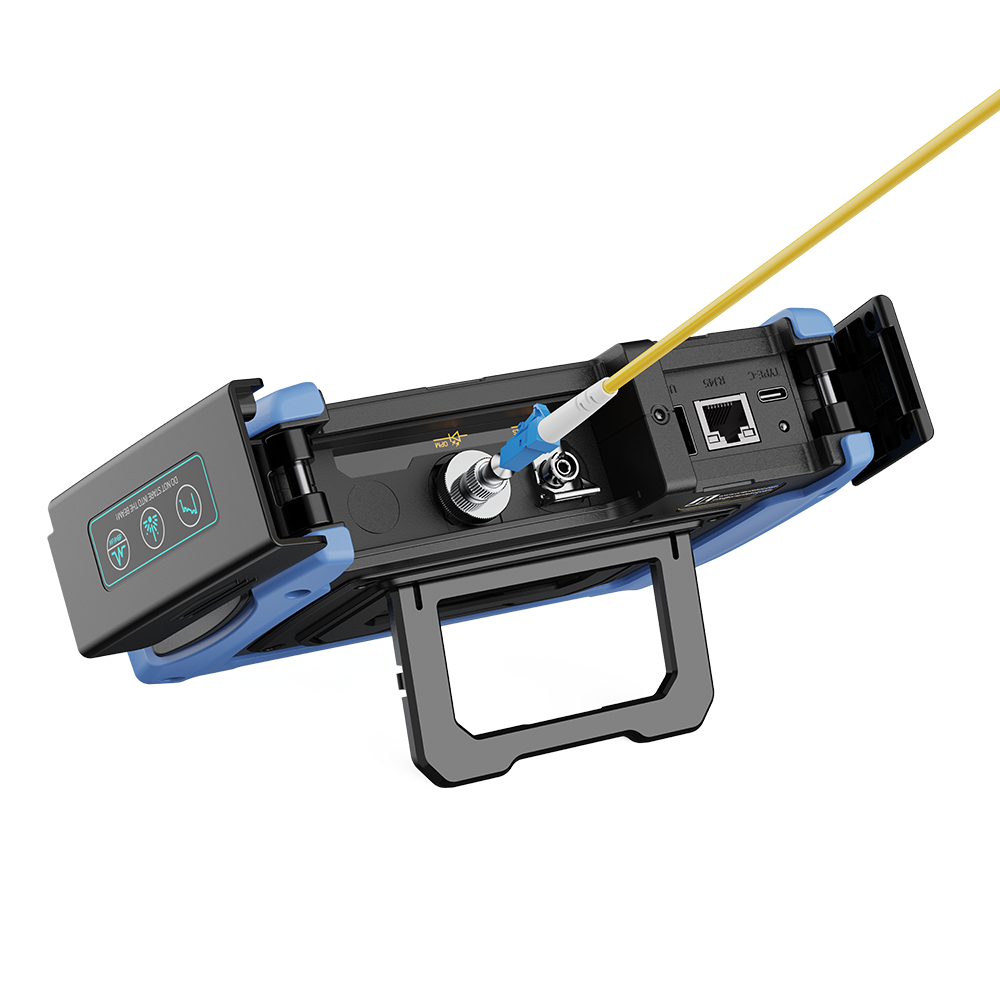

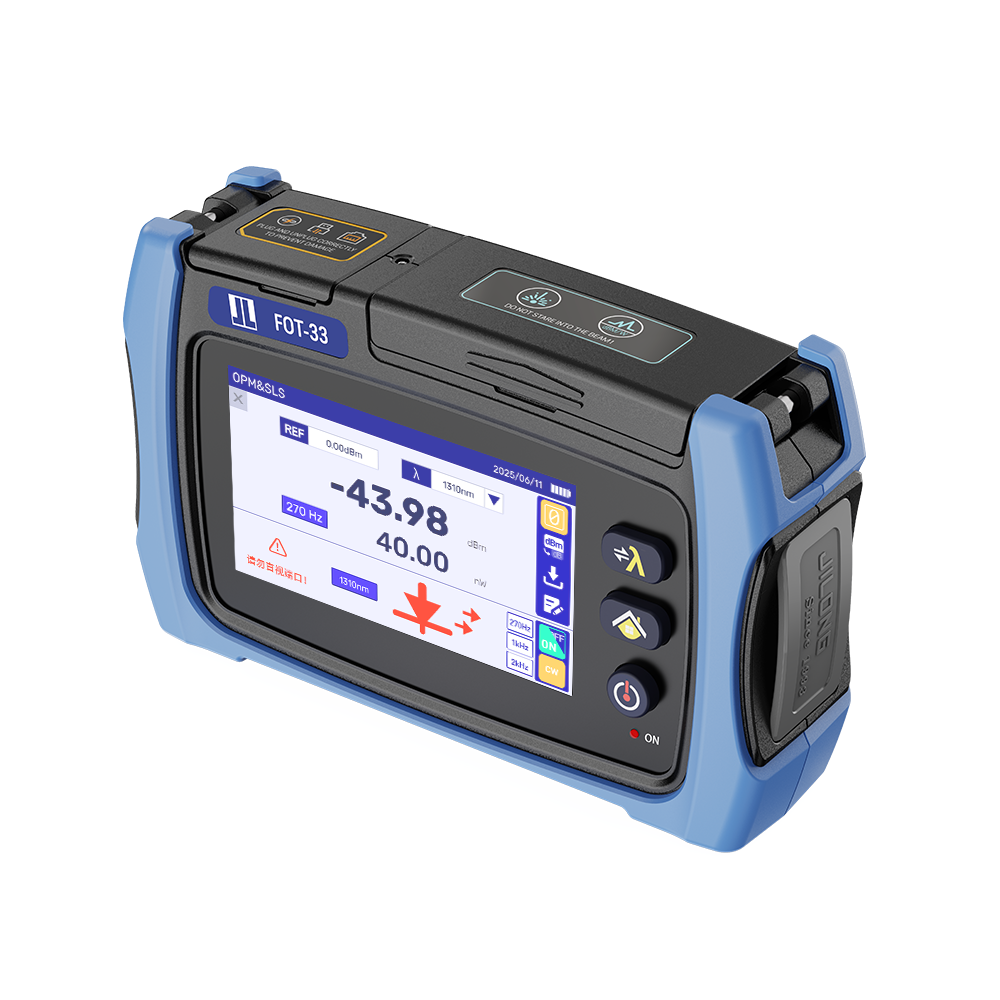

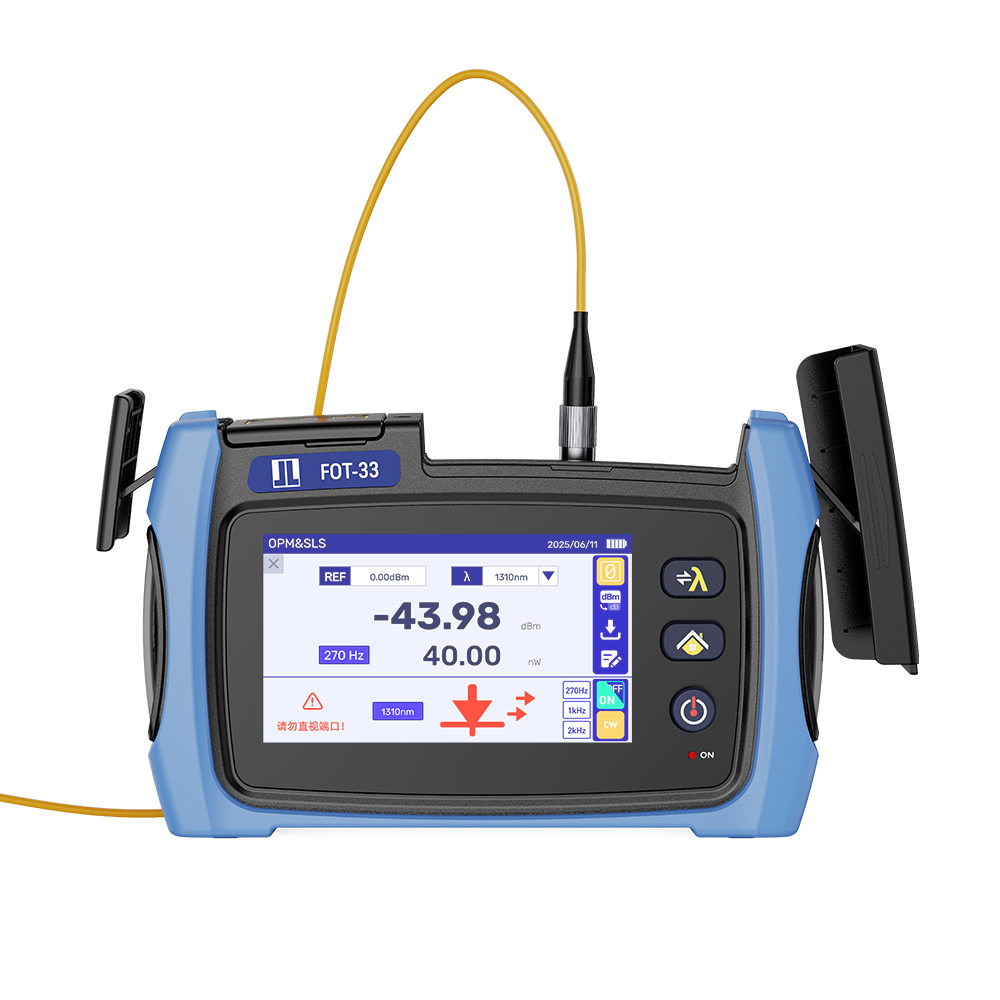

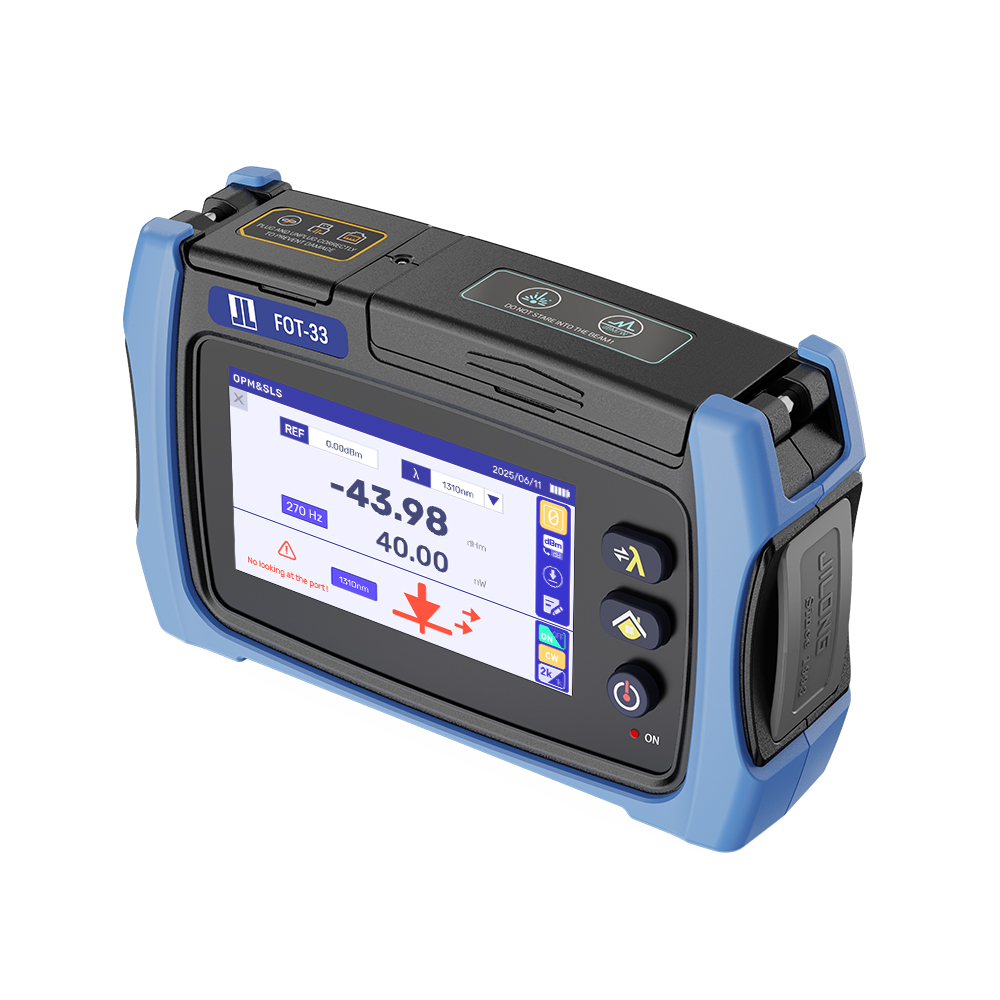

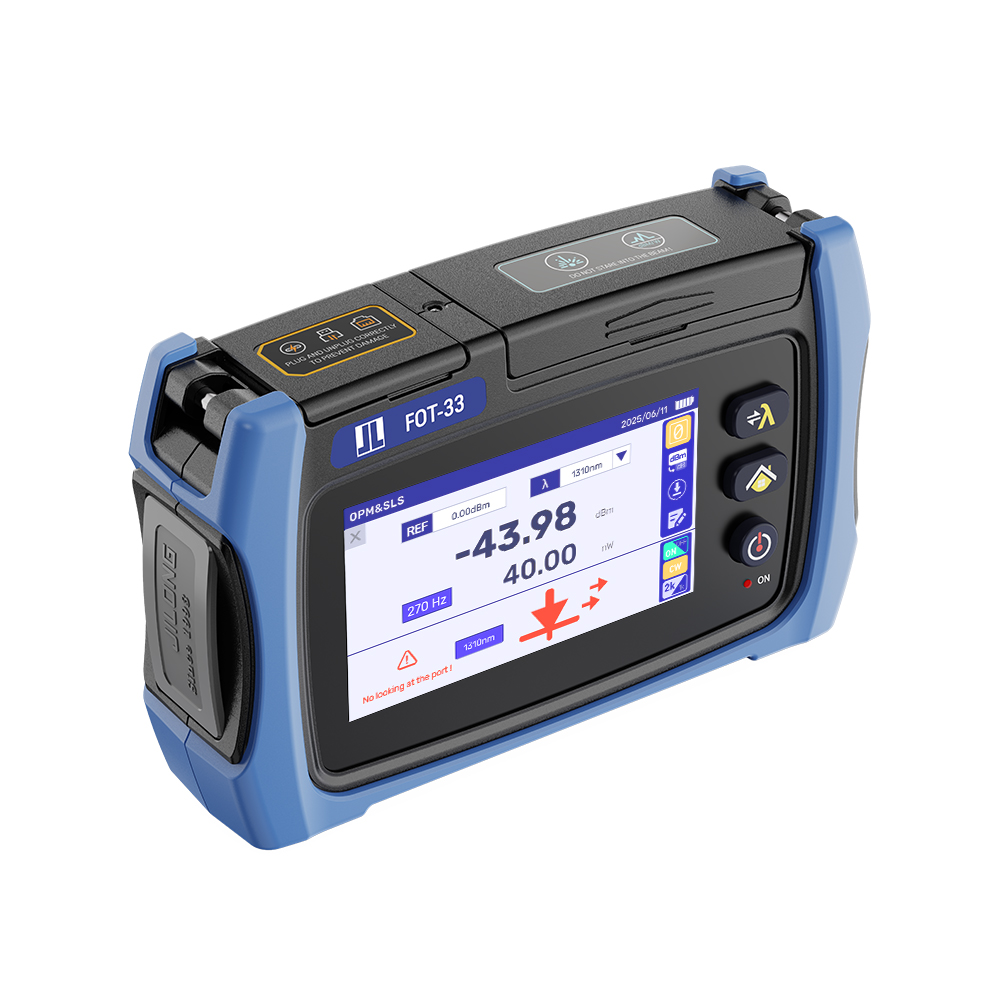

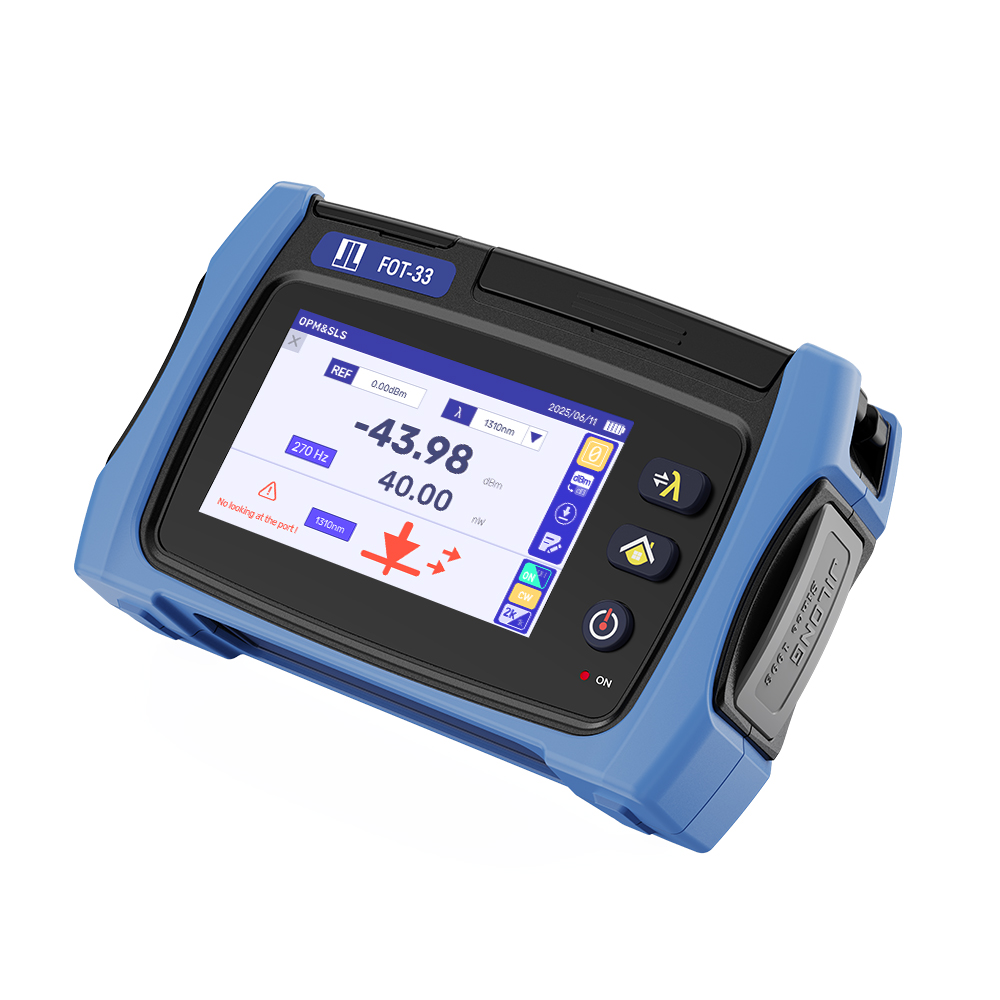

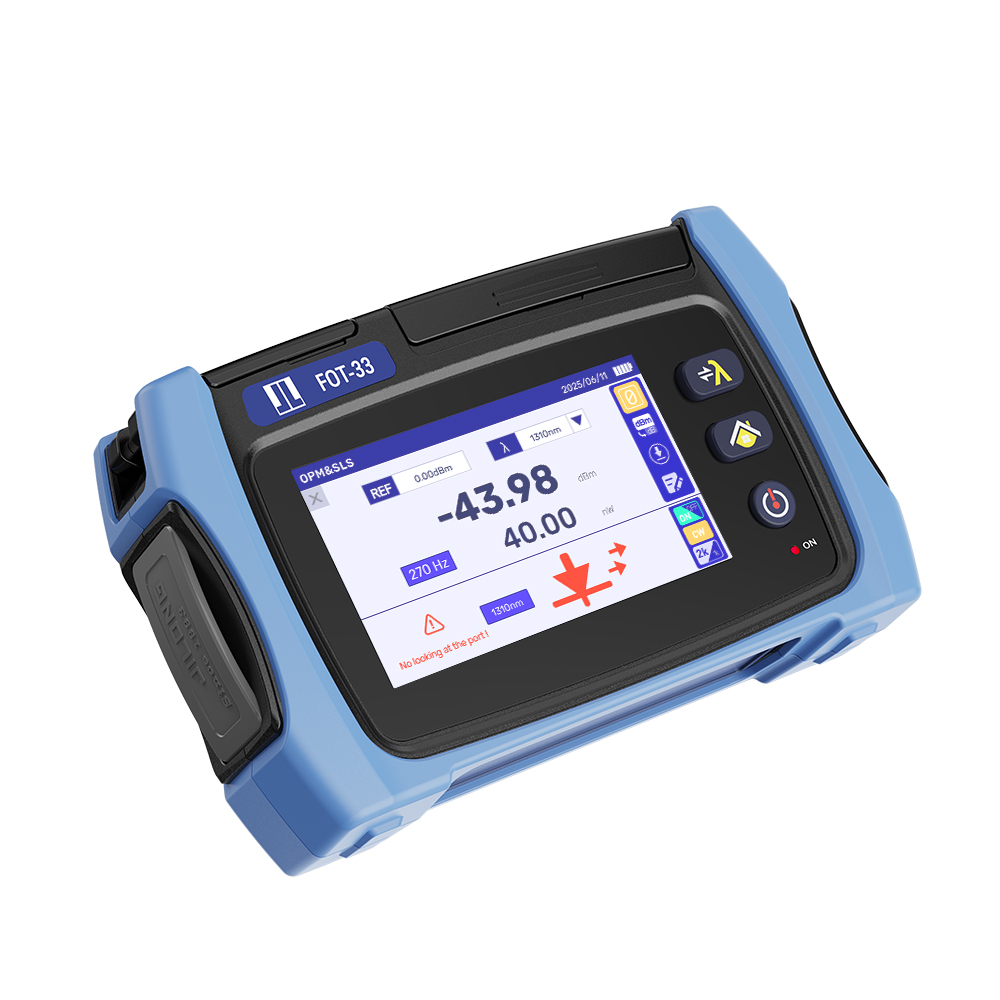

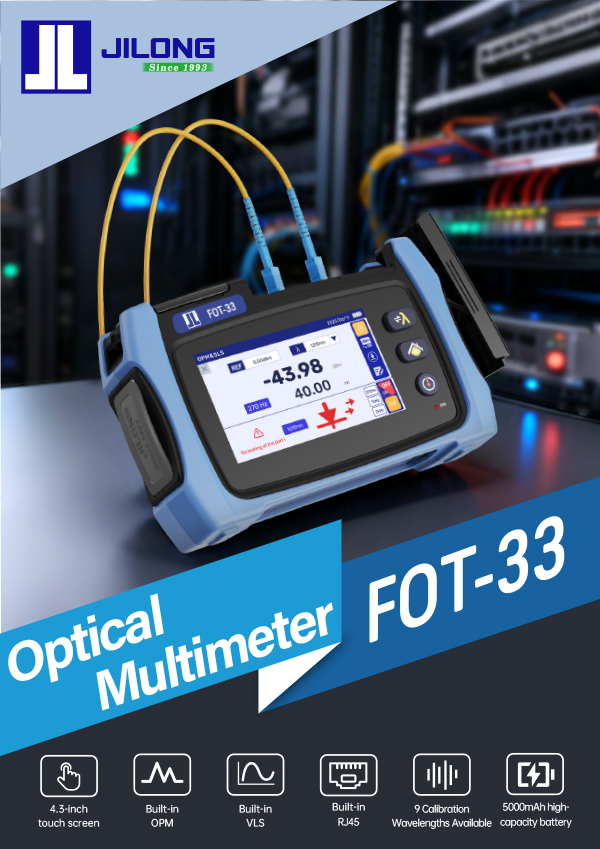

Multimeter Optical FOT-33

Manual Catalogue Tutorials VR

Core features

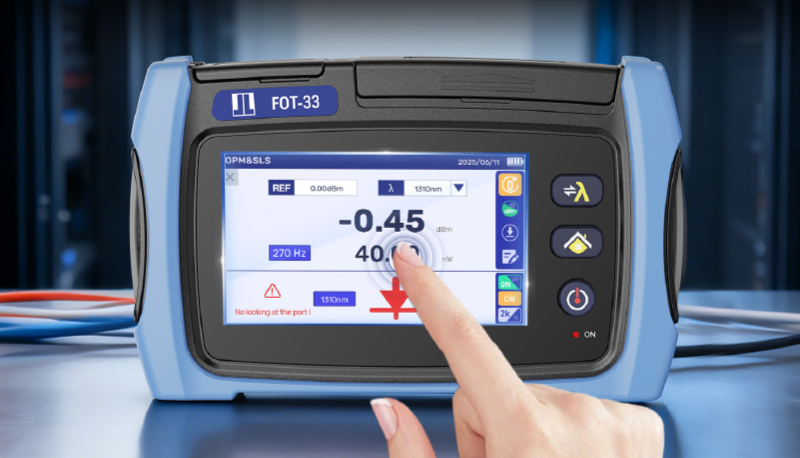

4.3-inch touch screen

Built-in OPM

Built-in VLS

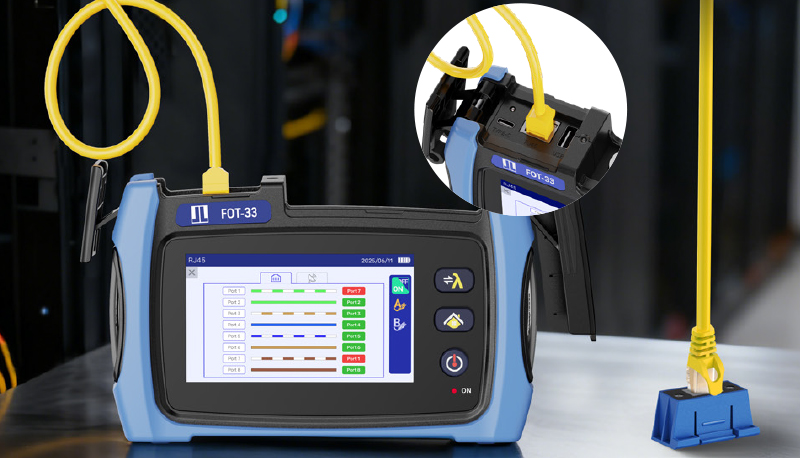

Built-in RJ45

9 Calibration Wavelengths Available

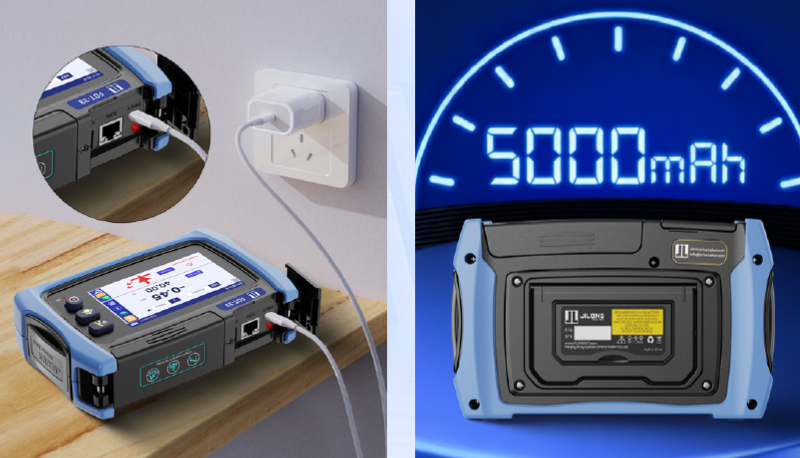

5000mAh high capacity battery

Recommended Products

Description
Specification
Download
Tutorials
Configuration

Multimeter Optical FOT-33

Request a quote consult

Online consultation Telephone

+86 4008836695

Features

LED lighting
● Equipped with high-brightness LED lighting
● Convenient for line inspection in dark environments
MiNi Stabilized Light Source
● All-in-one machine
● Self-contained LED lighting
● Mini and compact
Three wavelength combinations
● Single-mode dual-wavelength: 1310nm+1550nm
● Multimode dual wavelength: 850nm+1300nm
● PON three wavelengths: 1310nm+1490+1550nm

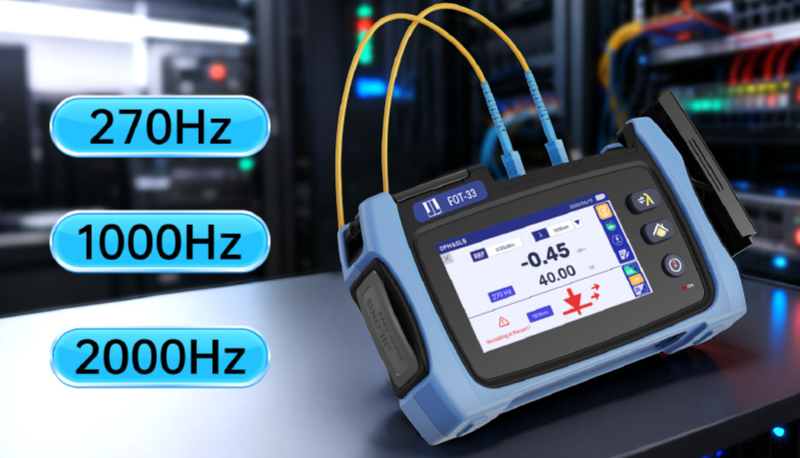

Modulated Carrier Output
● CW output with three modulation frequencies
● 270/1000/2000 (HZ)
pocket design
● The size is small and small, easy to carry
● Mini body, can be carried with you

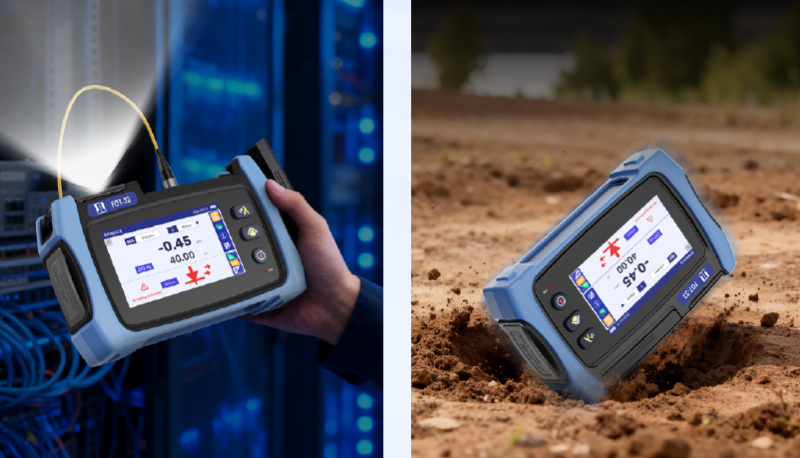

Comes with strong lighting
● Built-in LED function
● High-brightness LED lighting is convenient for line inspection in dark environment
Body soft rubber design
● Anti-shock, anti-fall
● Body silicone protective cover design
● Reduce measurement errors caused by accidental drops during construction
Body soft rubber design
● Anti-shock, anti-fall
● Body silicone protective cover design
● Reduce measurement errors caused by accidental drops during construction
Body soft rubber design
● Anti-shock, anti-fall
● Body silicone protective cover design
● Reduce measurement errors caused by accidental drops during construction
Body soft rubber design
● Anti-shock, anti-fall
● Body silicone protective cover design
● Reduce measurement errors caused by accidental drops during construction
Body soft rubber design
● Anti-shock, anti-fall
● Body silicone protective cover design
● Reduce measurement errors caused by accidental drops during construction
Body soft rubber design
● Anti-shock, anti-fall
● Body silicone protective cover design
● Reduce measurement errors caused by accidental drops during construction

Parameters
OPM	wavelength range	850-1650（nm）

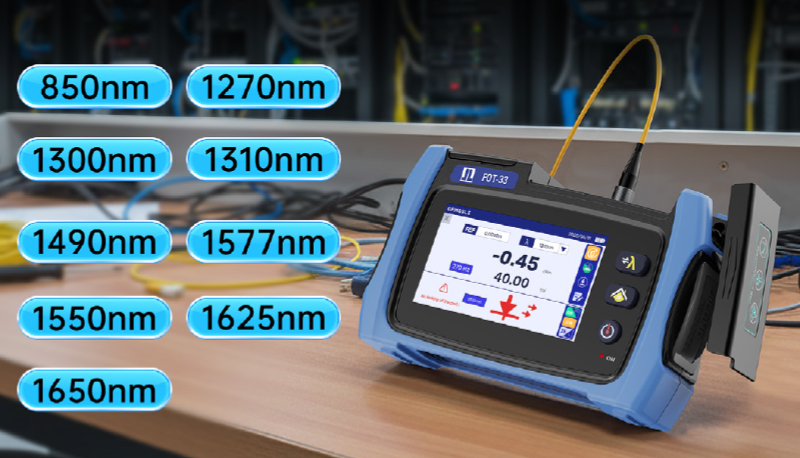

	Test Wavelength	850/1270/1300/1310/1490/1550/1577/1625/1650（nm）
	Power Test Range	-70~+6 (dBm)
	Uncertainty	＜（±0.2dB or ±5%）
	Power Stability	±0.1dB
	Resolution	0.01dB

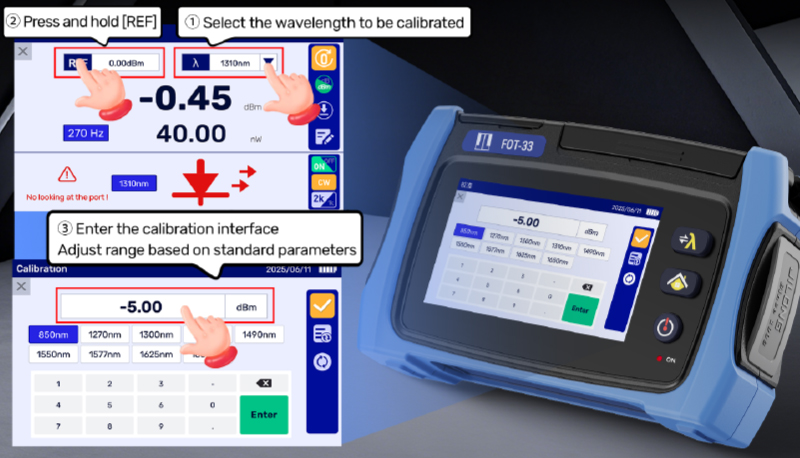

	User-independent calibration	√
VLS	Wavelength(nm)	1310/1550
	Spectral width (nm)	≤5
	Output power (dBm)	1mW ±0.2mW
	Output stability (dBm)	±0.05/15min，±0.2/8h
	Modulation frequency	CW, 270Hz，1kHz，2kHz
General Parameters	Auto Power-Off Time	10min
	Language	English, Chinese, Spanish, French, Portuguese, Russian, Thai, Korean

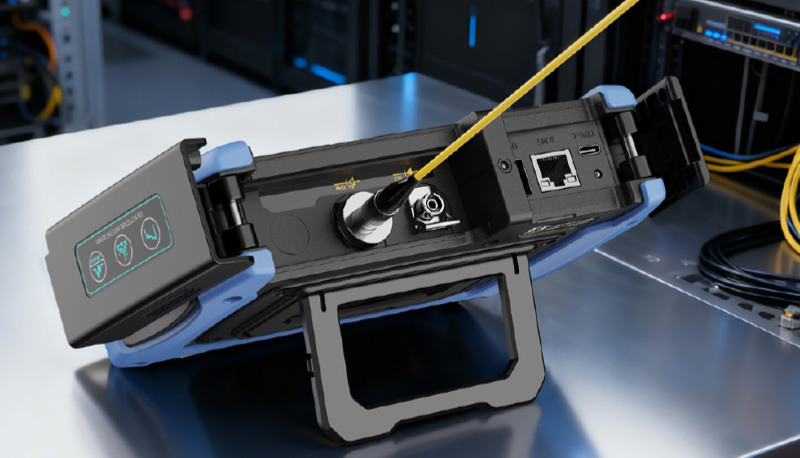

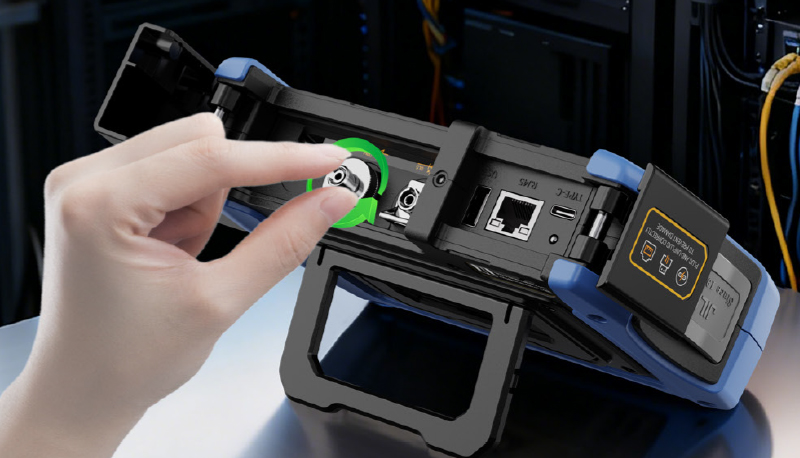

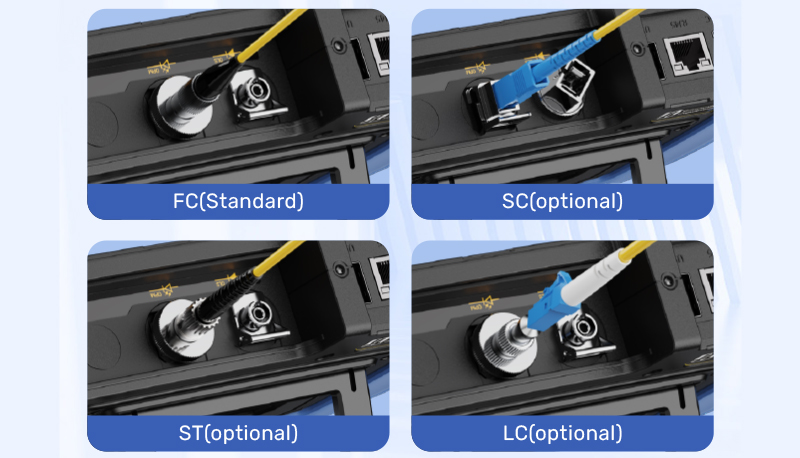

	Optical Fiber Port	FC/UPC (SC/UPC Optional)
	Display Screen	4.3-inch color LCD display screen

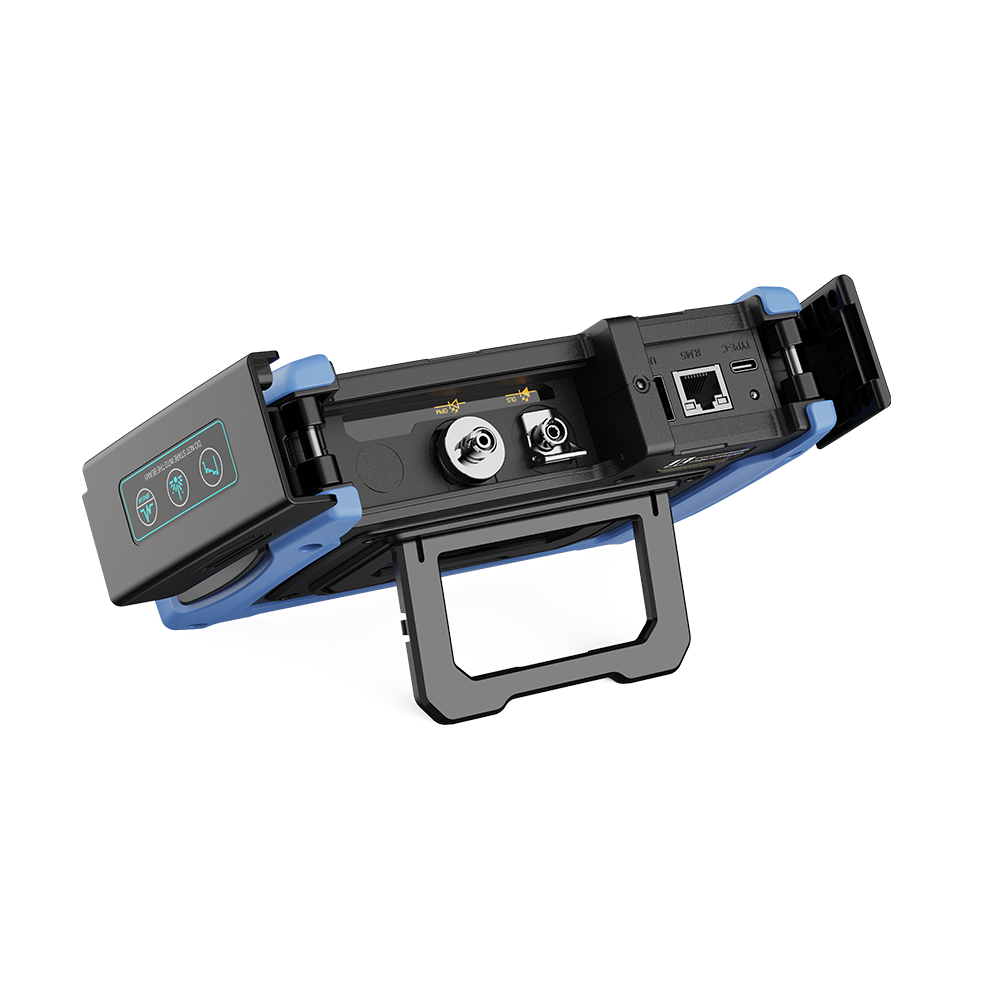

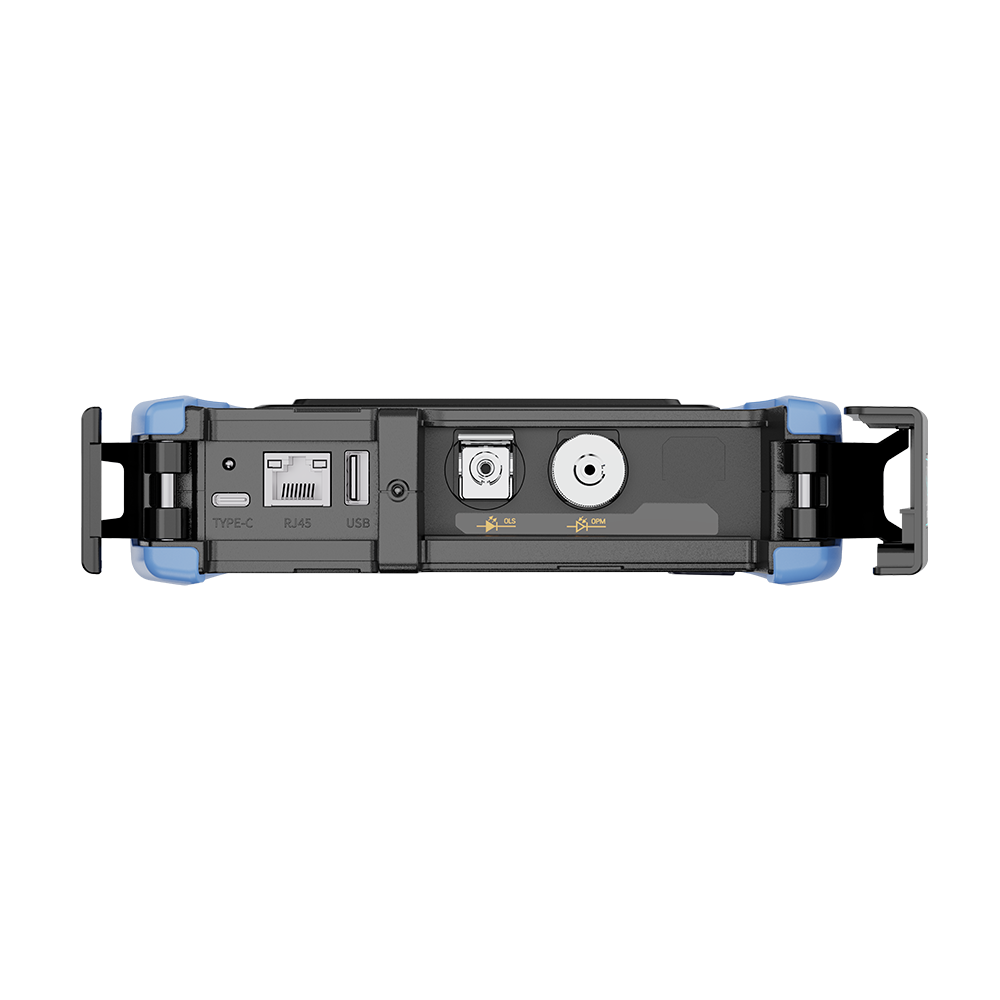

	Port	Charging Portx1，USB 2.0x1，RJ45x1
	Working Temperature	-10-50℃(0 to 40 ℃ for use with power, 0 to 35 ℃ battery charging)
	Storage Temperature	-20~ 60˚C
	Height	4000 m
	Humidity	0 to 90% RH (20%-90% 739874 AC adapter, non-condensing)
	Power Mode	100-240V AC,50/60Hz (AC adapter)
	Battery	3.7V,5000mAh,≥18.5Wh
	Lighting	Light Intensity>15000mcd
	Data Storage	Memory: Each wavelength can store 100 pieces of data; External Storage: USB
	Size	179 mm (W) × 112 mm (H) × 48 mm (D)
	Weight	0.6 kg (Unit + Battery)

Note: All specifications are based on measurements with a new battery at 23°C ± 2°C
