VFL-22P Pen Type Visual Fault Locator

VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator
VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator VFL-22P Pen Type Visual Fault Locator
Category:　Optical Light Source
Manual Catalogue Tutorials VR
Core features
● 40h continuous work● High quality laser chip, strong light source● Metal material, small and practical● Measuring up to 30km, high stability● Silicone dust cap ● 2.5mm universal adaptor for FC/ SC/ ST
Recommended Products
  • VFL-22M Mini Visual Fault Locator
  • KL-6200 FiberSMART OTDR
  • FIP-600V Fiber Optic Connector Inspection System
  • OPM-22/22V Mini Optical Power Meter
VFL-22P Pen Type Visual Fault Locator
Category:　Optical Light Source
RequestRequest a quote consultOnline consultation Telephone+86 4008836695
Features
  • VFL-22P Pen Type Visual Fault Locator
    Pen red light pen
    ● Metal body
    ● Stable performance
    ● Powerful light source
    ● Automatic shutdown
  • VFL-22P Pen Type Visual Fault Locator
    Strong light source and strong penetrating power
    ● The test distance can reach 25KM
    ● Fast test speed
    ● High stability
    ● LED indicator
  • VFL-22P Pen Type Visual Fault Locator
    2.5mm universal interface
    ● Replaceable ceramic ferrule
    ● Meet various connector requirements (LC adapter is optional)
    ● Replaceable ceramic core to prolong the service life of the machine
  • VFL-22P Pen Type Visual Fault Locator
    Imported laser chips
    ● Integrates power management
    ● signal modulation and switch control
  • VFL-22P Pen Type Visual Fault Locator
    Anti-stretch silicone dust cap
    ● Not easy to break
    ● Effective dustproof
  • VFL-22P Pen Type Visual Fault Locator

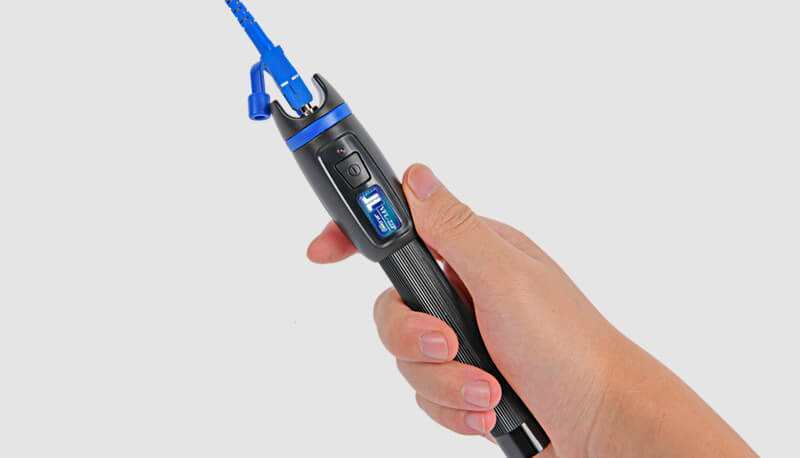

    Compact design can be operated with one hand
    ● Hidden button design
    ● Operable with one hand, practical and compact
Product Specifcations


ModelVFL-22P-10VFL-22P-20VFL-22P-30
Output power10mW20mW30mW
Detection distance5-8km12-15km20-25km
Operating hours12H10H4H
Wavelength650nm
Laser typeLD
Modulation frequencyCW / 2Hz
Operating temperature-20 ~ +60 (℃)
PowerAAA 1.5V batteries x 2
Dimensions197 x 30 (mm)
Weight115g (Including batteries)
Product manual
Products Tutorials
Product configuration
  • Pen red light source
    Pen red light source
