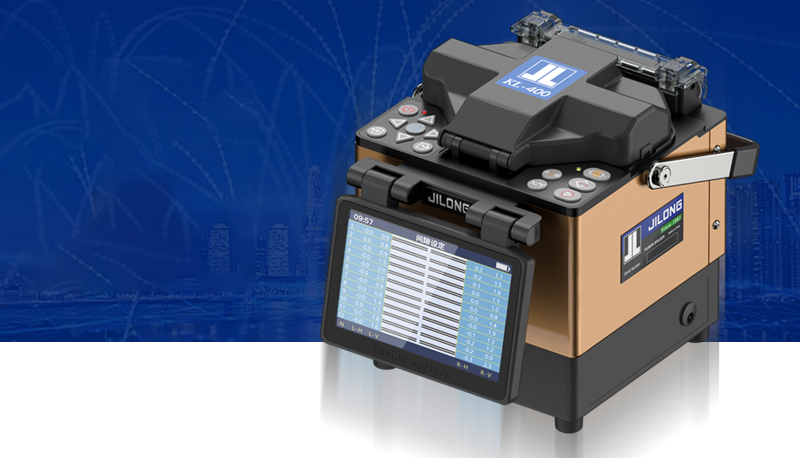

KL-400 Ribbon Fiber Fusion Splicer

KL-400 Ribbon Fiber Fusion Splicer KL-400 Ribbon Fiber Fusion Splicer KL-400 Ribbon Fiber Fusion Splicer KL-400 Ribbon Fiber Fusion Splicer
KL-400 Ribbon Fiber Fusion Splicer KL-400 Ribbon Fiber Fusion Splicer KL-400 Ribbon Fiber Fusion Splicer KL-400 Ribbon Fiber Fusion Splicer
Category: Fusion Splicer
Core features
● Internal charging● 18s splicing,25s heating● Electrodes life: 5000 times● 5.0"640x480 color LCD monitor● 36/ 48 / 72X Magnifcation● Average splicing loss: 0.01dB
Recommended Products
  • KL-22F Hand Held High Precision Fiber Cleaver
  • JL-ELE-N Electrodes for Fiber Fusion Splicer
  • 500E Mini FTTx Fiber Fusion Splicer
  • KL-500S FTTx Fusion Splicer
  • KL-6200 Fiber Master OTDR
  • KL-22F Hand Held High Precision Fiber Cleaver
  • FIP-600V Fiber Optic Connector Inspection System
  • OPM-22/22V Mini Optical Power Meter
KL-400 Ribbon Fiber Fusion Splicer
Features
  • Ribbon Fiber Fusion Splicer
    Ribbon Fiber Fusion Splicer
    ● Applicable to various types of optical fibers
    ● High-precision fixed V-groove
    ● Three-year warranty
  • Fiber Fusion Splicer
    Application Scenario
    ● Main line project
    ● Metropolitan area network
  • fiber splicing machine
    Bearing upgrade double-layer cooling tank
    ● Double-layer design
    ● 2 times more carrying capacity than conventional
  • fusion splicing machine
    High-precision V-groove
    ● High-precision fixed V-groove for multi-core cladding alignment
    ● Suitable for single-core/2/4/6/8/12-core ribbon fiber
  • optical splicing machine
    Compatible with various types of optical fibers
    ● It can deal with a large heating area of 12-core optical fiber at most. The tension effect on the surface of the optical fiber during the discharge process can reduce the influence caused by the deviation of the optical fiber
  • optic fibre machine
    Quad-core CPU
    ● Industrial-grade quad-core CPU
    ● GPU built-in WcatPro graphics accelerator, the response speed is further improved
  • Compatible with thermal strippers
    Compatible with thermal strippers
    ● The power supply of thermal stripping pliers can choose the built-in lithium battery of the fusion splicer or the external power adapter.
    ● Ribbon optical fiber: cladding outer diameter: 125um; fiber thickness: 280um~400um
    ● Single-core optical fiber: cladding outer diameter: 125um; fiber outer diameter: 250um, 500um, 900um. )

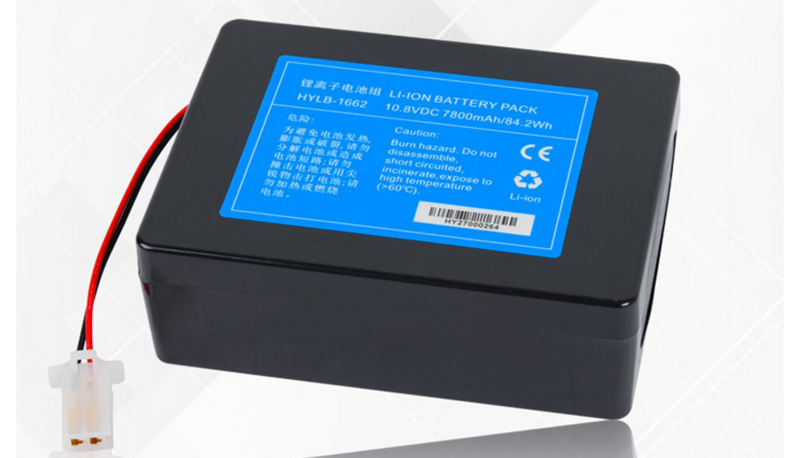

  • 7800mAh large capacity lithium battery
    7800mAh large capacity lithium battery
    ● Each charge supports about 300 splicing + heating
    (It is largely affected by battery usage status and operating environment)
  • Full Body Silicone Protective Cover
    Full Body Silicone Protective Cover
    ● Adapt to welding + heating in various environments
    ● Waterproof body
    ● Shockproof and drop resistant
    ● Dirty and dustproof
Product Specification


Splice Method :Active Clad-Alignment
Applicable Fibers :SM(ITU-T G.652&G.657) / MM(ITU-T   G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable :Ribbon : 0.25~0.4 mm / Single : 250μm & 900μm
Fiber Holder :Replaceable (Universal: FH-60)
Fiber Diameter :Cladding: 80-150μm,Coating: 100~1000μm
Fiber Cleave Length :8~16 mm
Splice mode :Max 128 modes
Typical Splice Loss :SM: 0.03dB / MM: 0.01dB / DS: 0.04dB /   NZDS: 0.04dB / G.657: 0.03dB ★①
Return Loss :>>60dB
Splicing Time :Quick mode : 18 sec
Estimated Splice Loss :Available
Heating Time :Quick mode 25 sec
Protection Sleeve Length20mm, 30mm, 40mm, 50mm, 60mm
Heat Programs:Max 32 modes
Battery7800mAh Battery Capacity, Typical 300   Cycles (Splice&Heat) per Charge ★②
Electrode Life5000 arcs, can be extended by using an   electrode grinder ★③
Auto-start :Splice / Heating
Automatic Fiber IdentificationSupport
Automatic ARC IdentificationAutomatic arc calibration by air pressure   and temperature
Results Storage :The last 10,000 splice records and 2,000   result images
Tension Test1.96~2.25N
Operating ConditionAltitude: 0~5000m, 0~95% relative   humidity, -20~50°C, Max Wind 15m/s
Storage Condition0~95% relative humidity, -20~60°C
Display5” color high resolution (800 x 480)   display
Fiber Magnification36 / 48 / 72X Magnifcation
Power Supply :AC 100-240V, DC 9-14V
TerminalUSB2.0
Weight2.1kg without battery / 2.6kg with   battery
Size168H x 150W x 165D mm

★①  With identical fibres(in room temperature). Measured by cut-back method relevant to ITU-T and IEC standards.

★②  Splice & Heat cycles may vary depending on the battery status and the operating environment.

★③  Electrode life may vary depending on the operating environment.


Products Tutorials
    No data
