● Smart link diagram ● 6000mAh large capacity battery ● Maximum dynamic range: 31dB ● ≤1.5m event blind zone, ≤5m attenuation blind zone

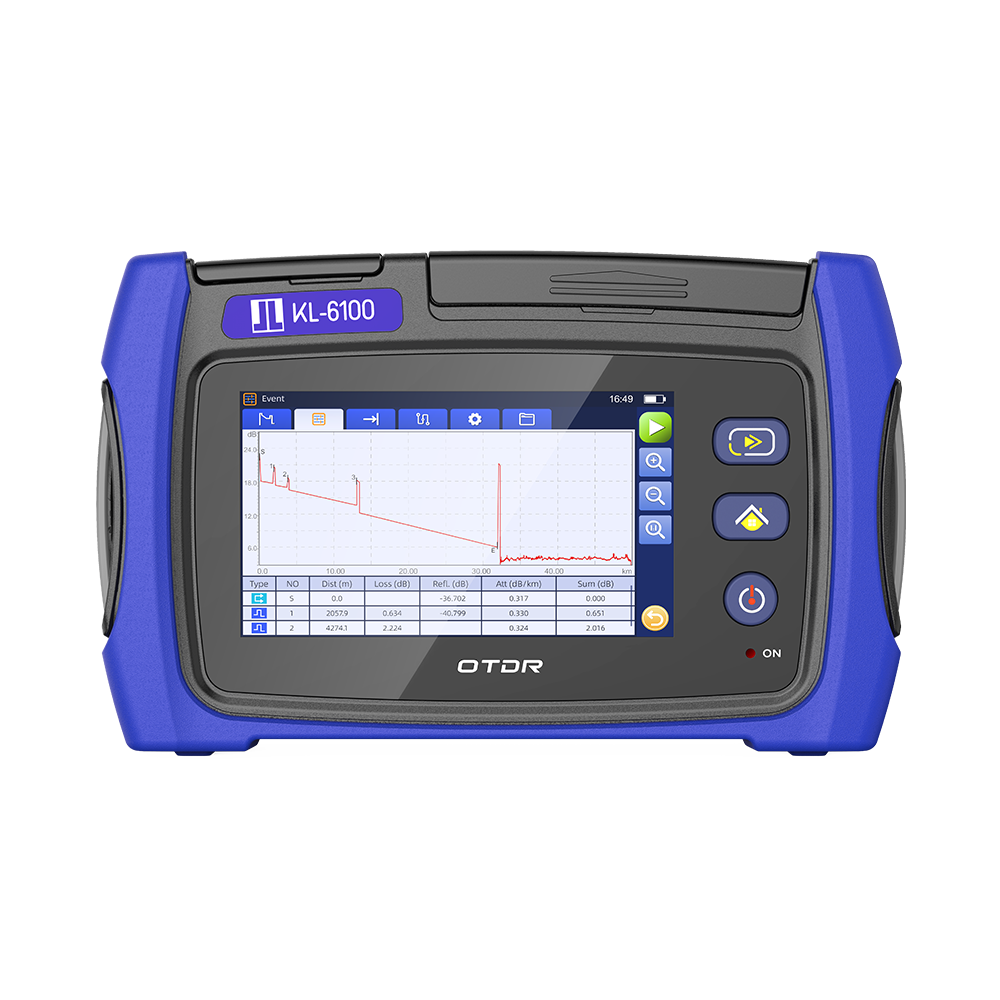

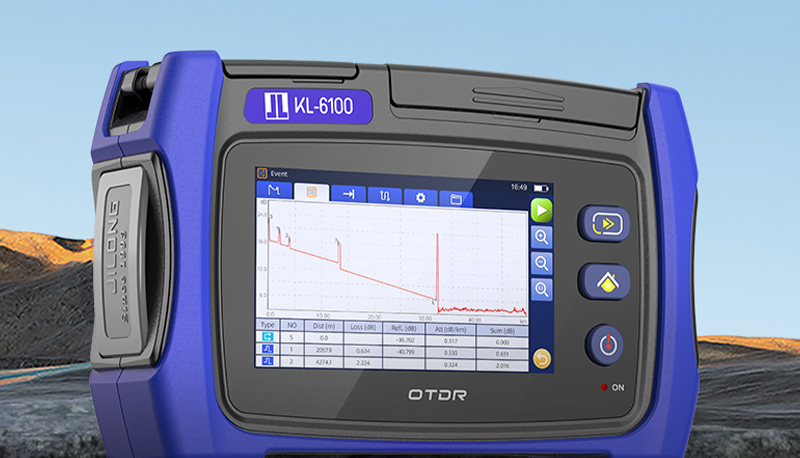

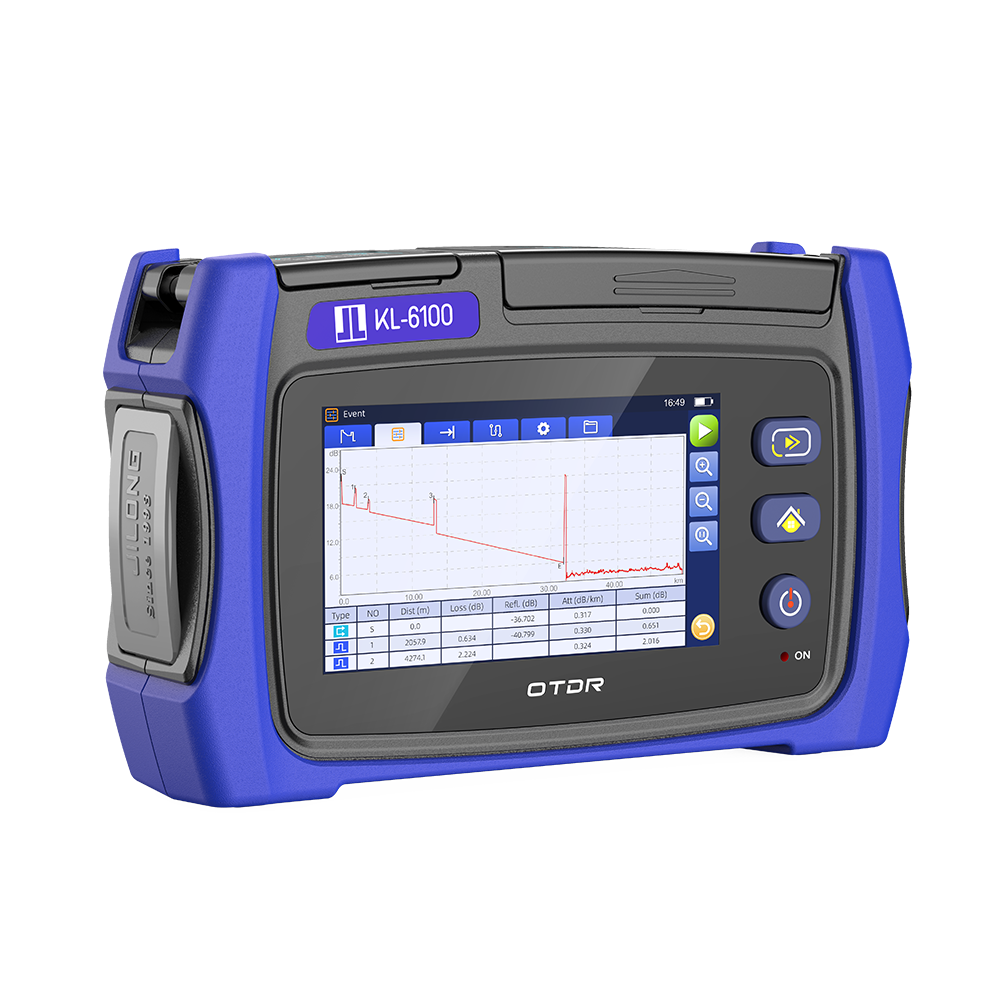

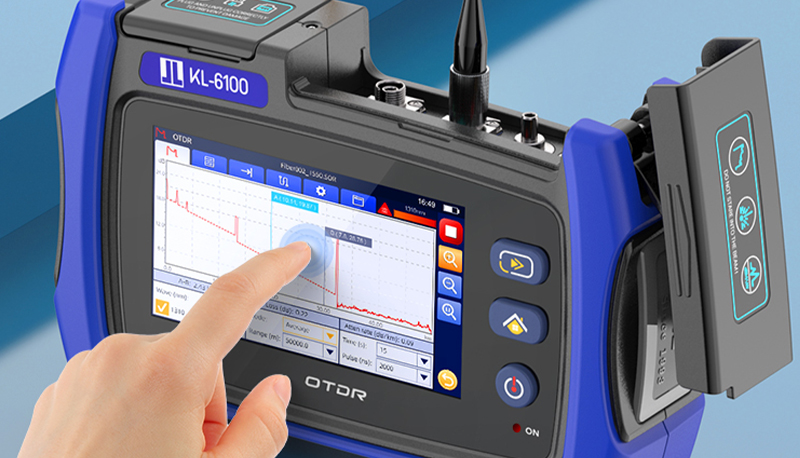

4.3-inch capacitive touch screen
The OTDR curve supports zoom in/out, with clear screen colors and a concise interface.

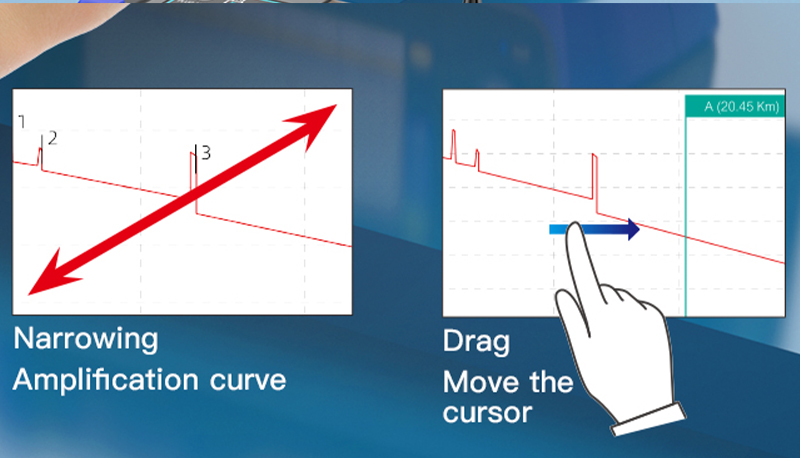

NarrowingAmplifcation curve
Drag Move thecursor
Auto Mode: Measures continuous 8x3m optical fiber events(Industry benchmark)
Short distance test: Accurately test out fiber events and losses

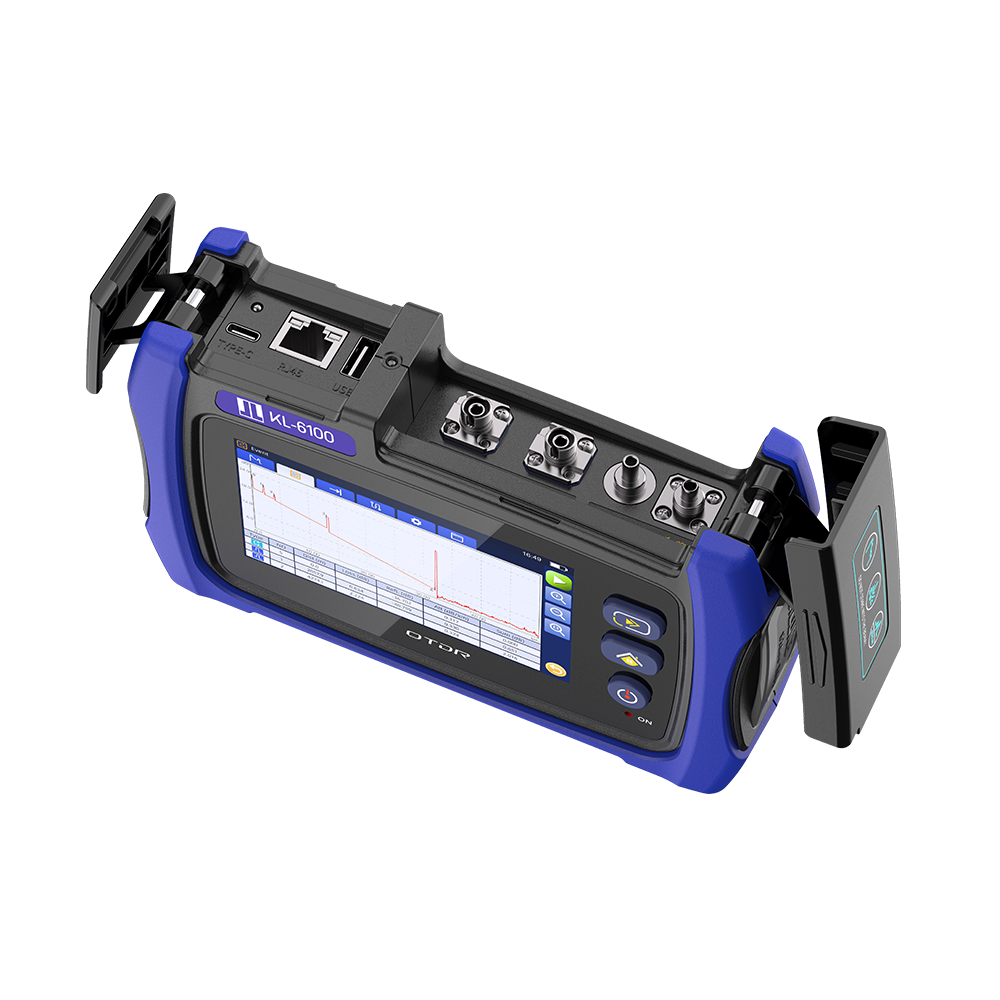

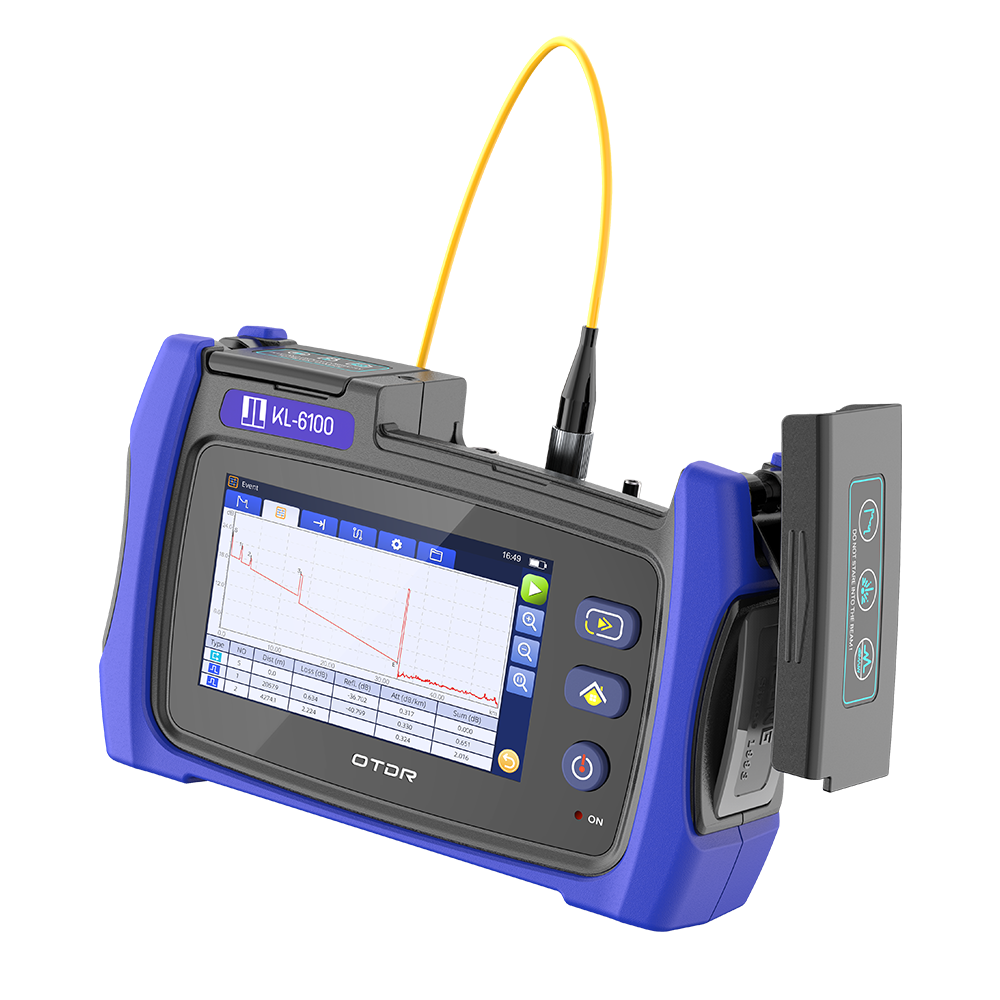

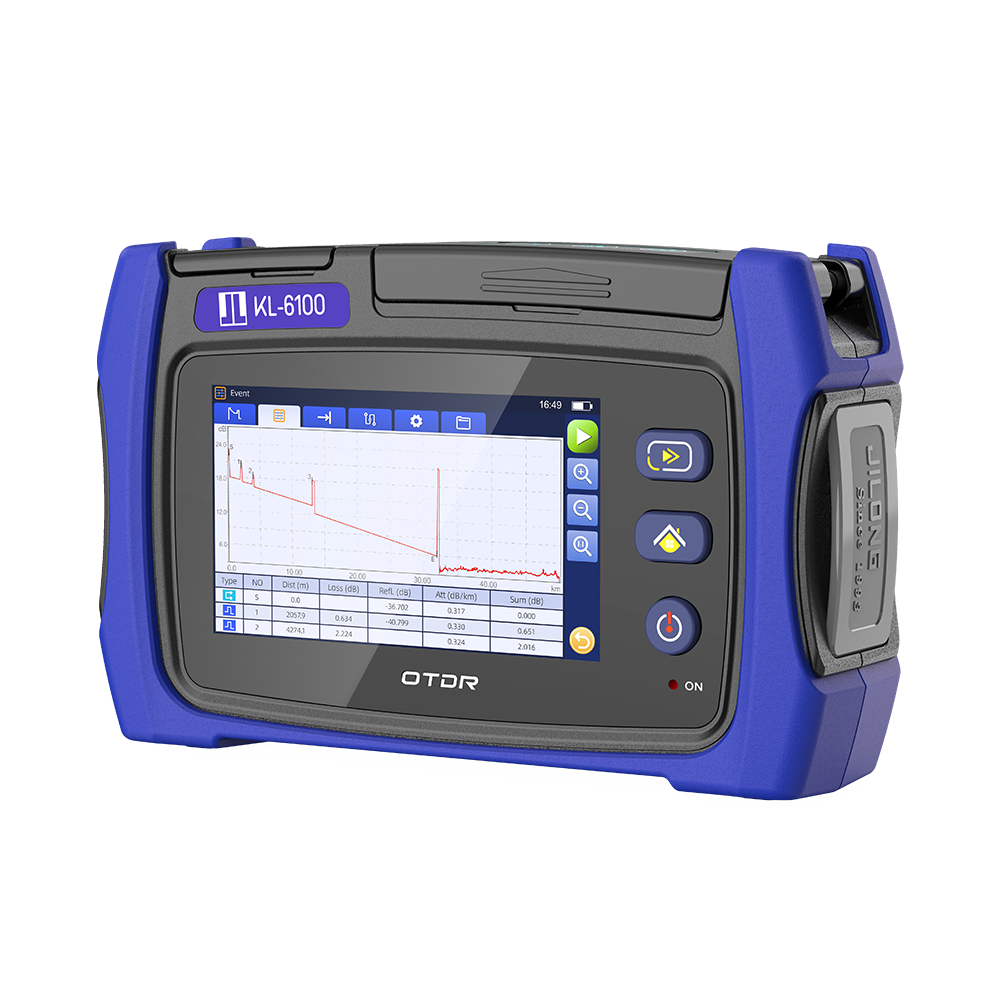

JILONG KL-6100 OTDR is widely used for FTTx network installation and troubleshooting. accessnetwork testing (P2P), passive optical LAN (POL), cable TV (CATV) and hybrid fiber coaxial (HFC)network testing, as well as FTTA and Distributed Antenna System (DAS) installation.

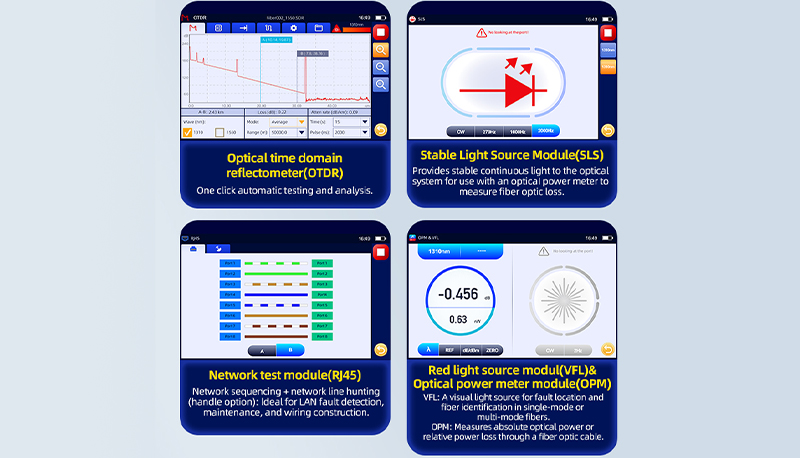

Far more than just OTDR

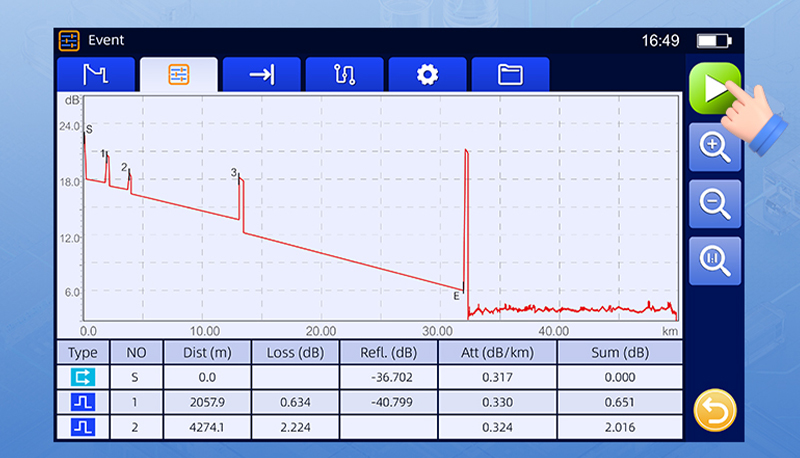

Intelligent curve analysisrecords all events
Accurate trajectory line display, don't miss any eventand understand the losses of optical cable breaks, lengths, bends，fusion points, connectors, etc.through curves

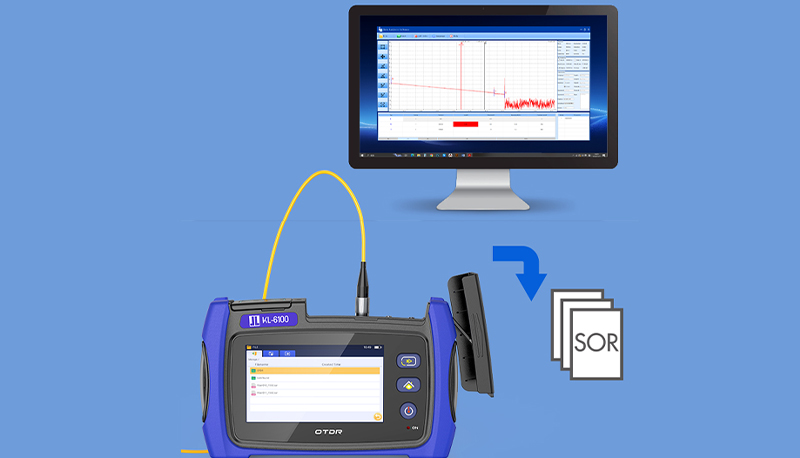

Can save SOR format andsupport host computer viewin
Built-in post-processing software saves OTDR measurement results as SOR filesstoring over 1,000 files.

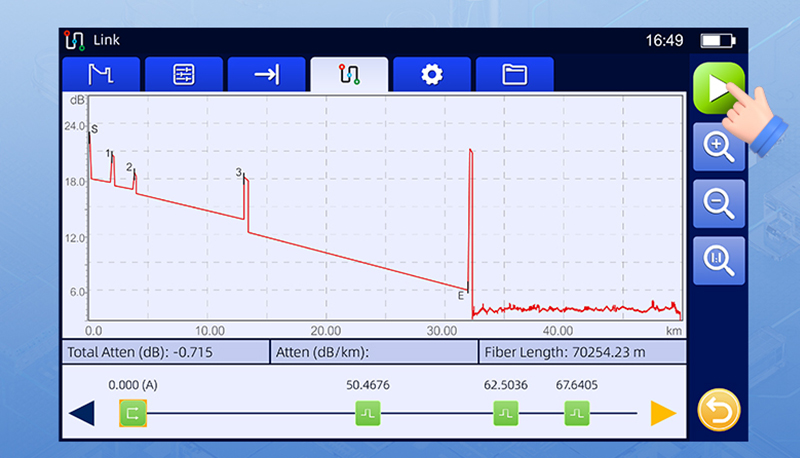

Smart Map Graphical Links
Smart Map makes OTDR test results graphical, intuitively displaying fiber loss, breakpoints, and fault locations. Clearly view test results at a glance, improving detectionefficiency and speeding upaccurate maintenance.

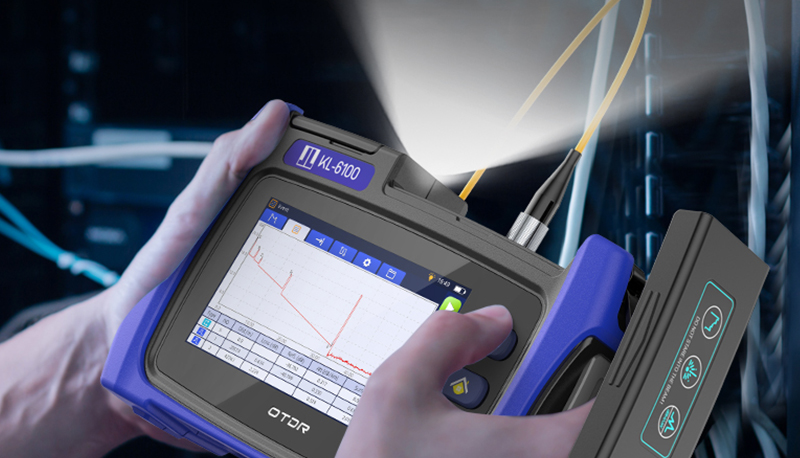

Lighting lamps makework easier
High-brightness lighting design for convenientline inspection in dim environments

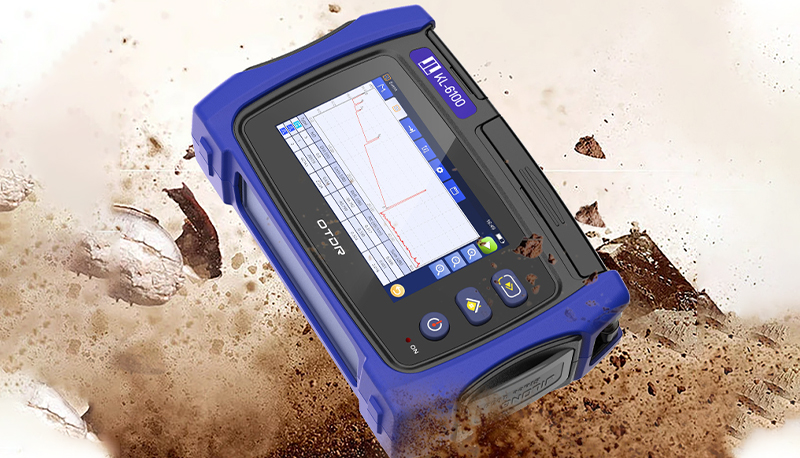

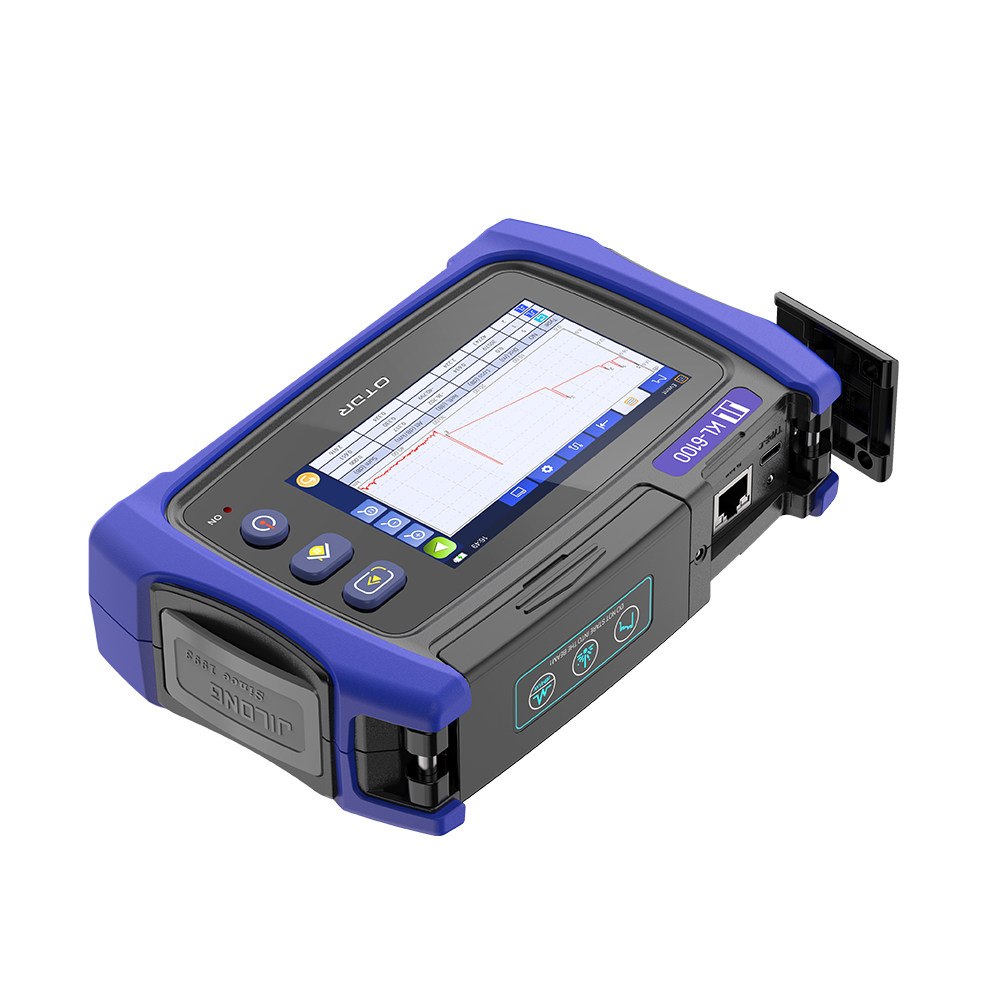

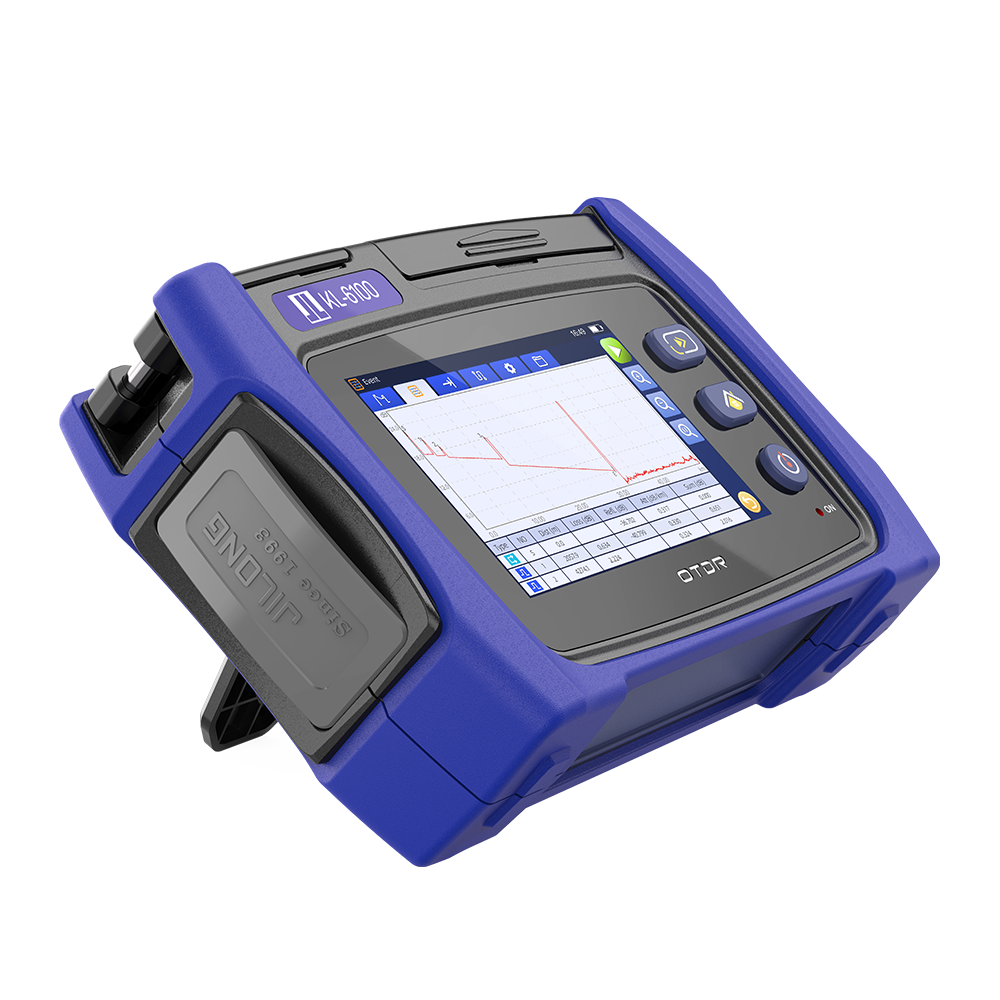

Anti-seismic rubbercoating design
Rubber protection design for effectiveshock absorption, anti-fall, and anti-bump to protect the machine

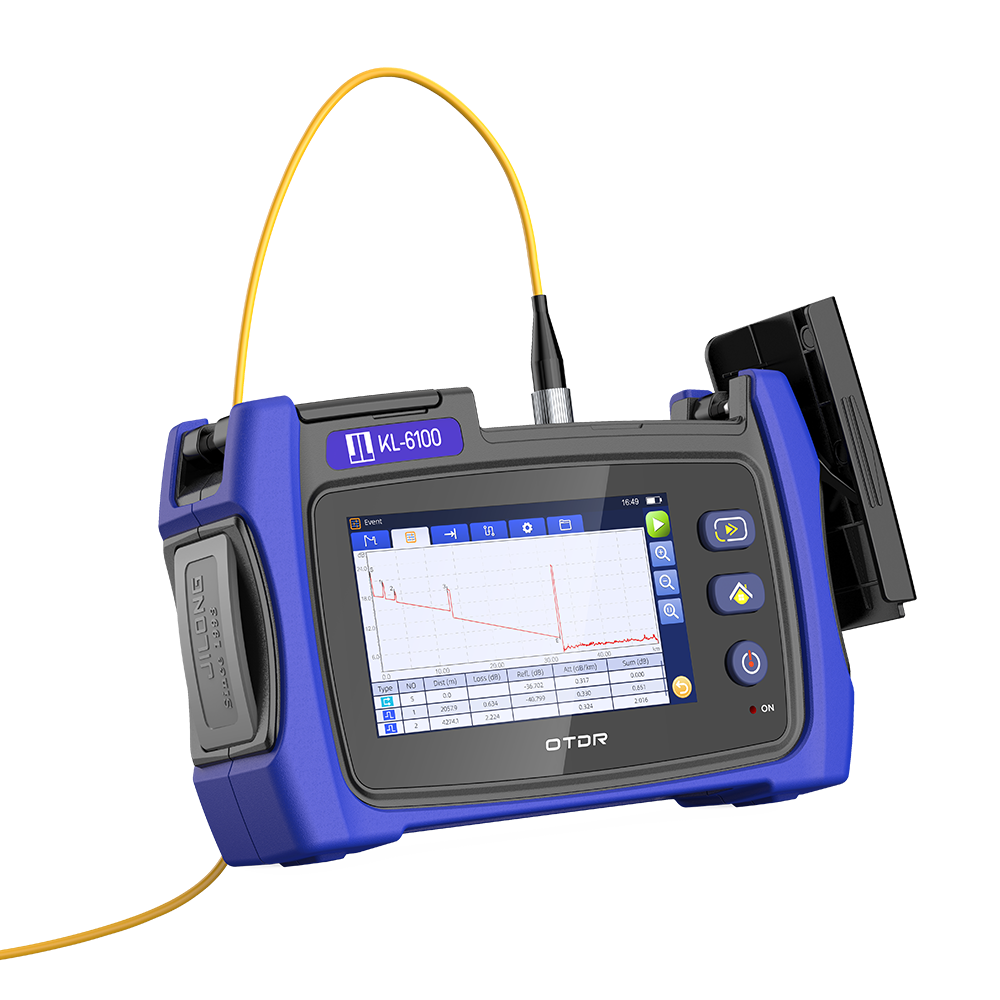

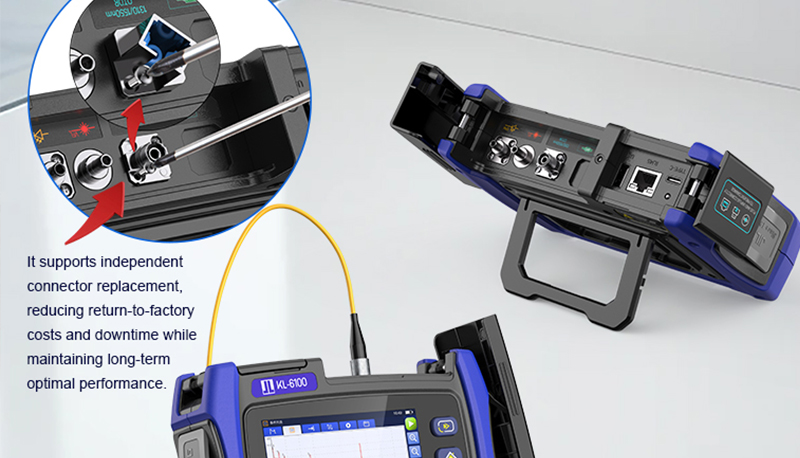

Stable support for convenient desktopoperation and versatile scenario use
The bracket can support the product on the platform, reducethe measurement error caused by equipment shaking duringoptical fiber measurement, and improve the measurement accuracy
