TAWAA ACS-1 Armored Cable Slitter

TAWAA ACS-1 Armored Cable Slitter TAWAA ACS-1 Armored Cable Slitter TAWAA ACS-1 Armored Cable Slitter TAWAA ACS-1 Armored Cable Slitter
TAWAA ACS-1 Armored Cable Slitter TAWAA ACS-1 Armored Cable Slitter TAWAA ACS-1 Armored Cable Slitter TAWAA ACS-1 Armored Cable Slitter
Category: Construction Tools
Core features
● Wire stripping diameter is 8-28.6mm ● Precision pulley, stable and labor-saving ● Blade angle can be rotated 90° for horizontal cutting ● Longitudinal cutting and circular cutting can be carried out, and the blade depth can be adjusted
Recommended Products
  • TAWAA RCS-4529 Round Cable Slitter
  • TAWAA MSAT4 Mid Span Cable Slitter
  • KL-51 Precision V-Groove Fiber Aligner
  • TAWAA 45-164 Cable Stripper
  • KL-6200 Fiber Master OTDR
  • OPM-22/22V Mini Optical Power Meter
TAWAA ACS-1 Armored Cable Slitter
Category: Measuring Instruments
  • 1679993604523603.jpg
    Armored cable cutter
    ● Precision pulleys
    ● Stable and labor-saving
    ● Can be rotated 90°
  • 1679993619569885.jpg
    Titanium alloy blade
    ● Blade made of titanium alloy, depth adjustable
    ● Steel ground and heat treated
  • 1679993635404970.jpg

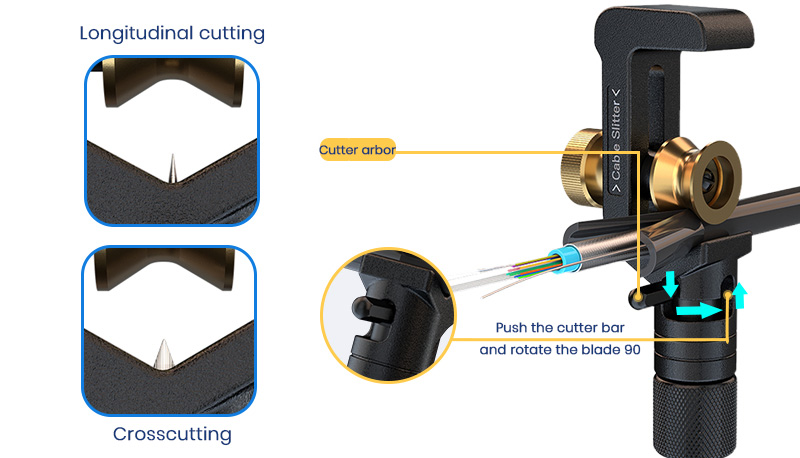

    Adjust the cutter head to switch the stripping direction
  • 3.jpg
    Horizontal and vertical stripping can be rotated and switched blades
    ● Longitudinal cutting: Fix the cable in the cable opening channel and pull the cable opening knife to make the built-in blade cut the cable sheath
    ● Horizontal cutting: Fix the cable in the cable opening channel and rotate the cable knife to cut the built-in blade cable sheath
  • 1679993659545305.jpg
    Blade Depth Adjustment
    ● Cutting depth can be adjusted according to the thickness of the cable sheath
    ● Cutting depth 0-5.5mm
  • 1679993672282839.jpg
    Guide Wheel - Stabilizing Cable
    ● Cable guide wheels improve the firmness of the cable so that the tool can move along the cable firmly
Product parameters
nameArmored cable cutter
modelACS-1
Stripping specifications8-28.6mm caliber
fiber typeArmored, aluminum and other optical cables
Blade Depth5.5mm
Product Size130mm
product weight280g
Product manual
    No data
Products Tutorials
    No data
Product configuration
  • Armored cable cutter
    Armored cable cutter
