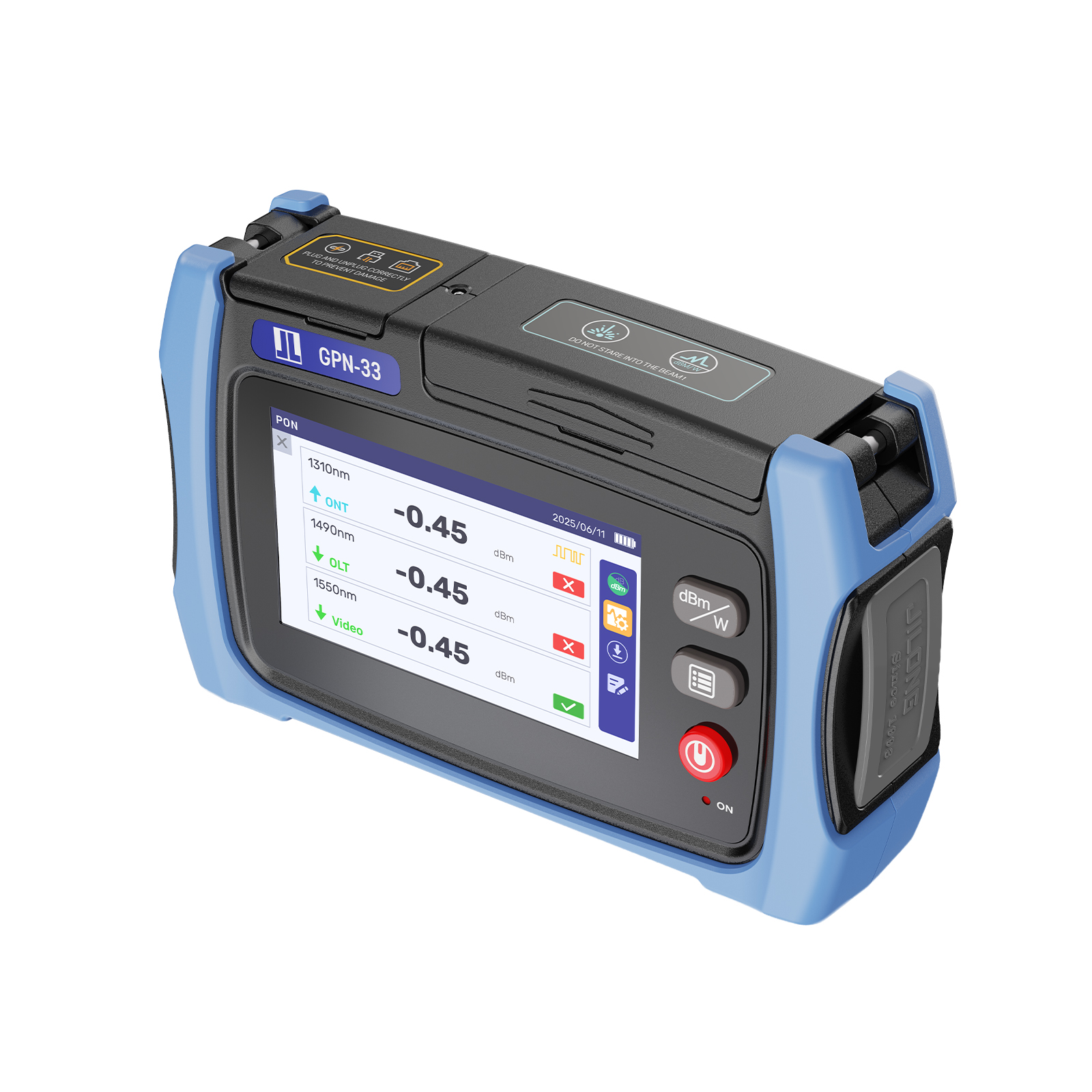

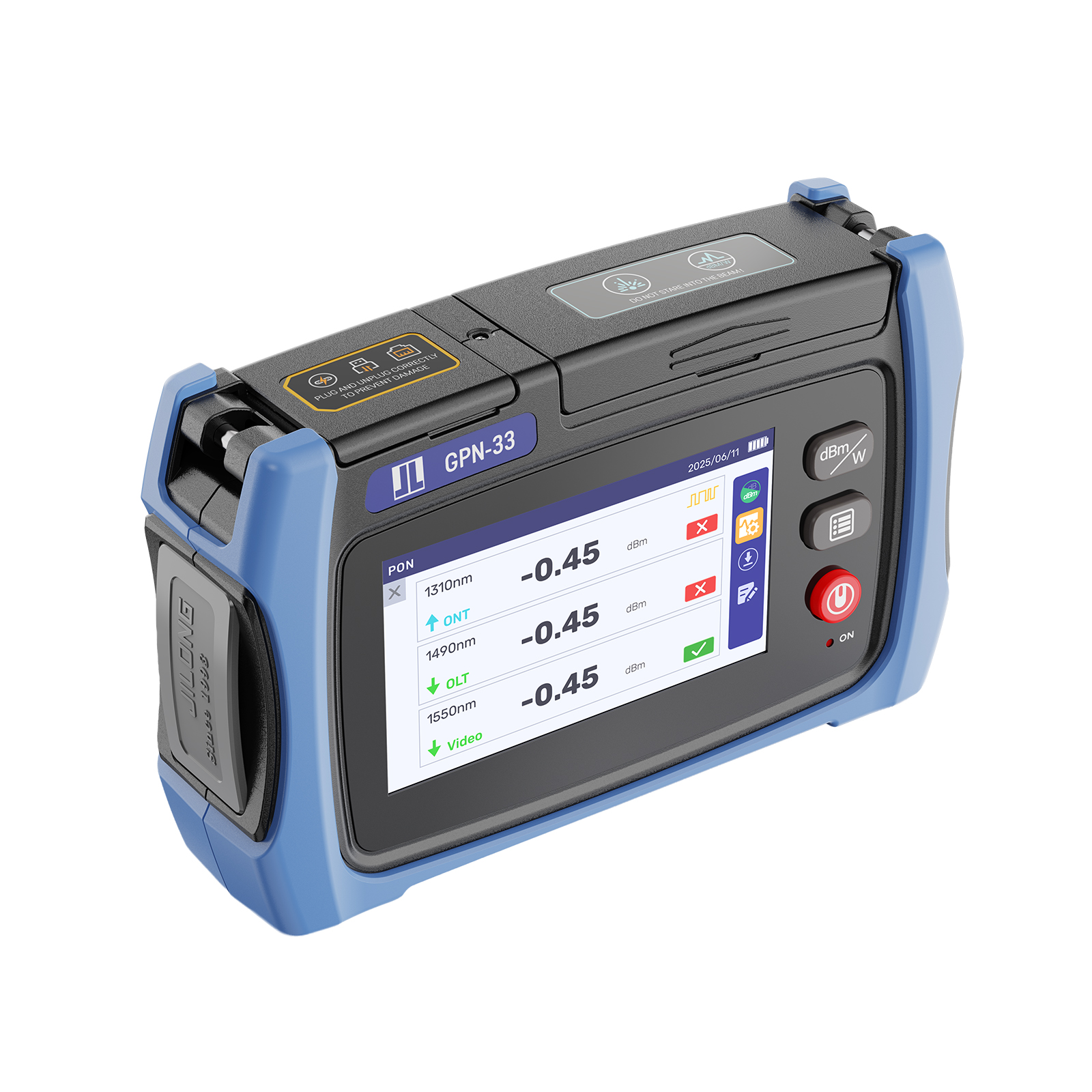

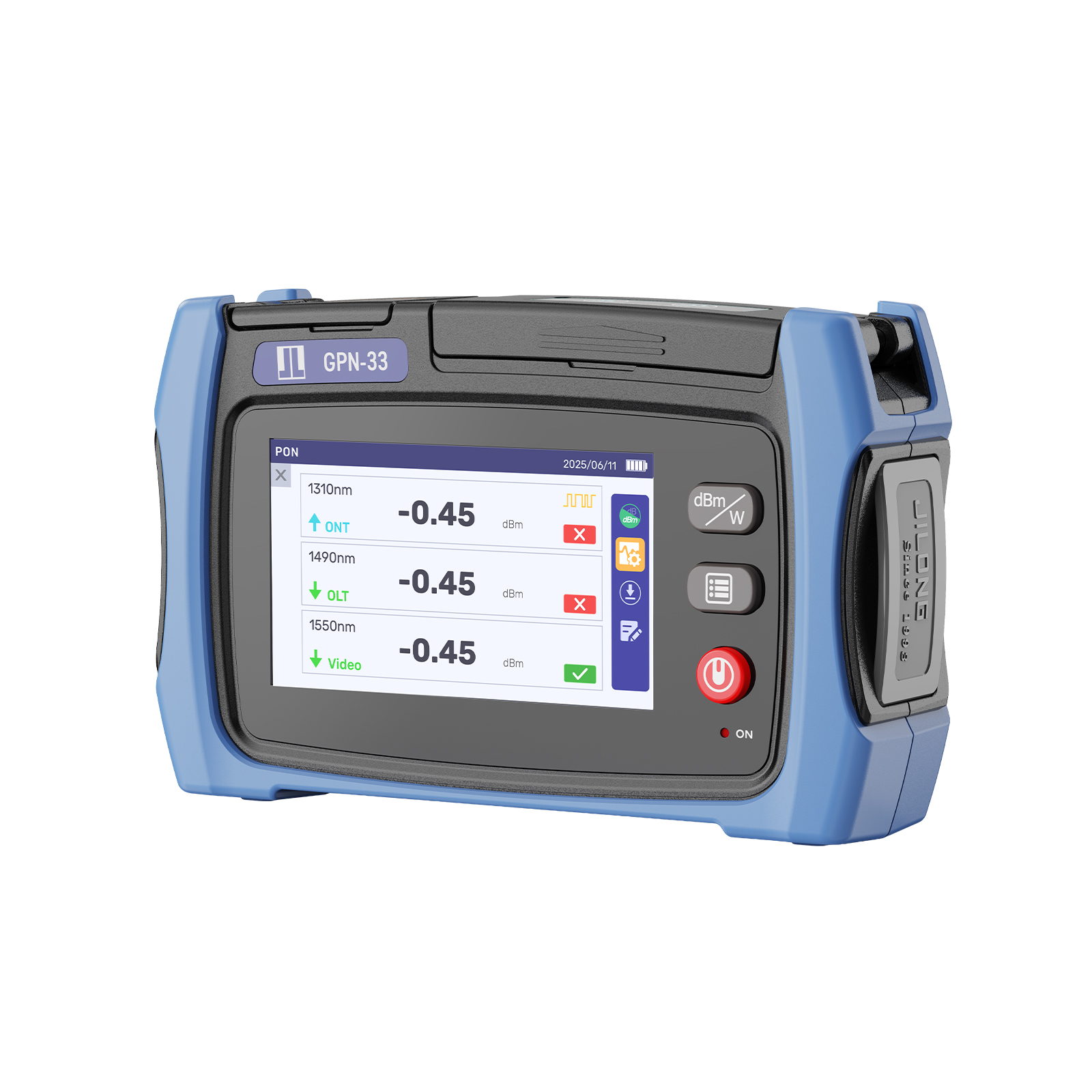

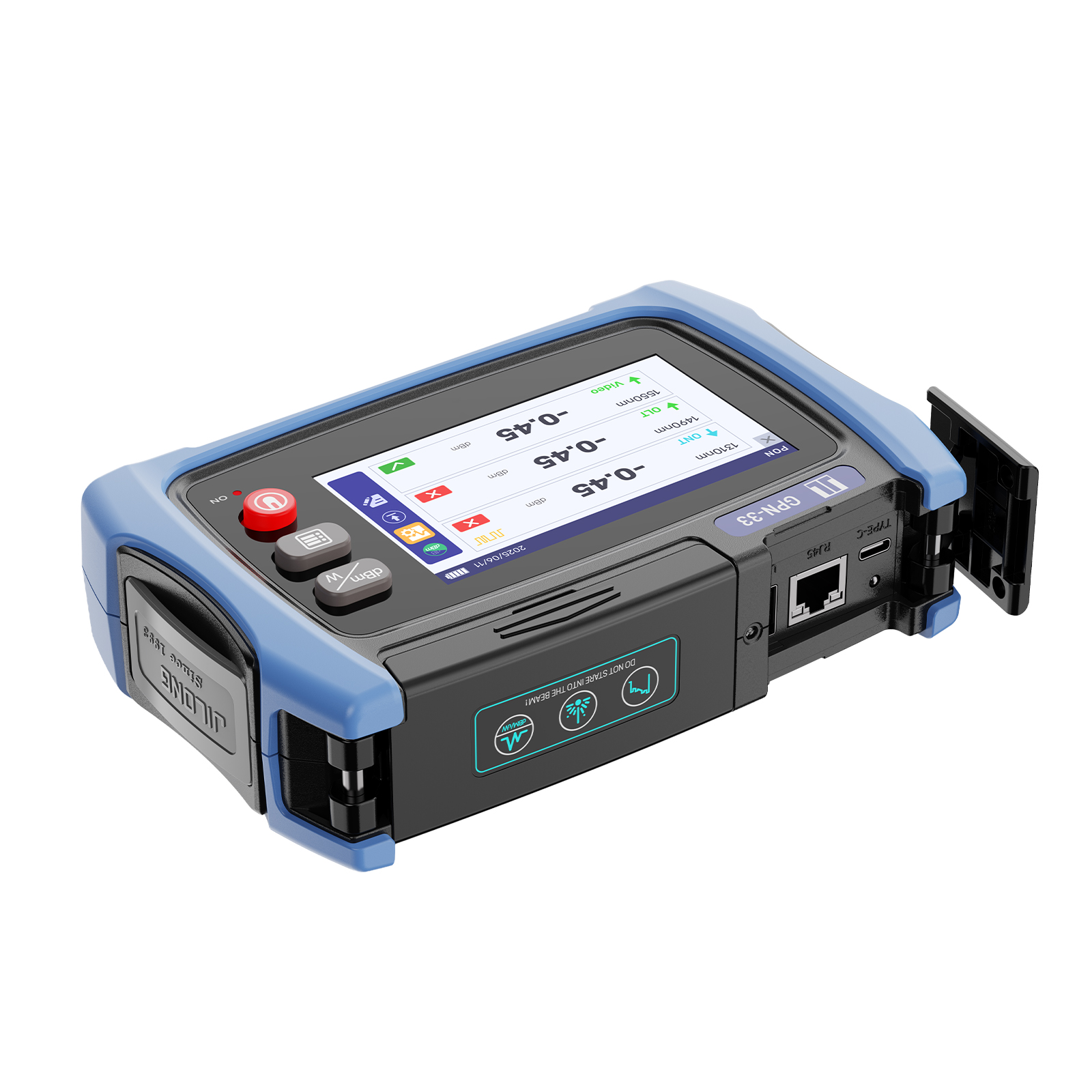

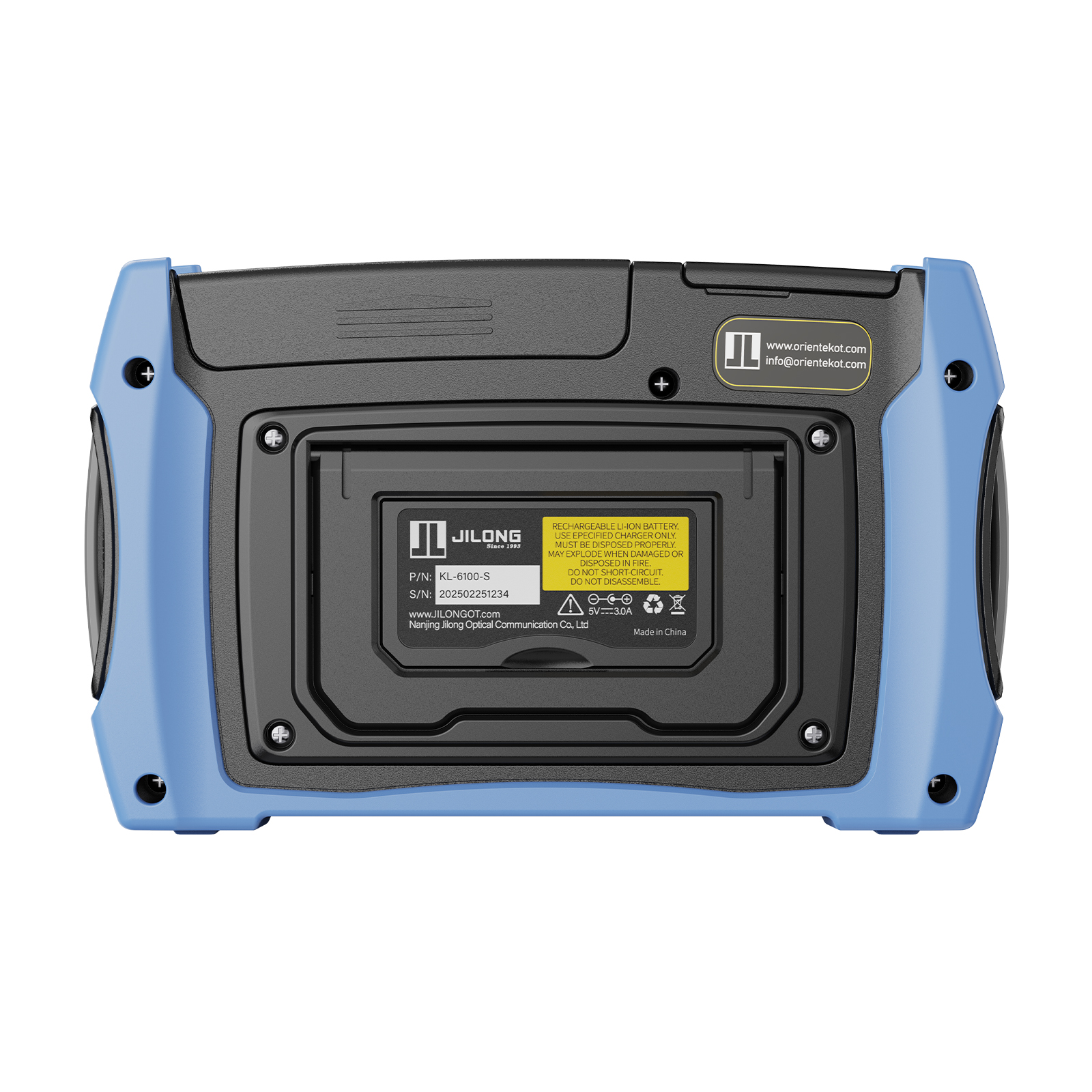

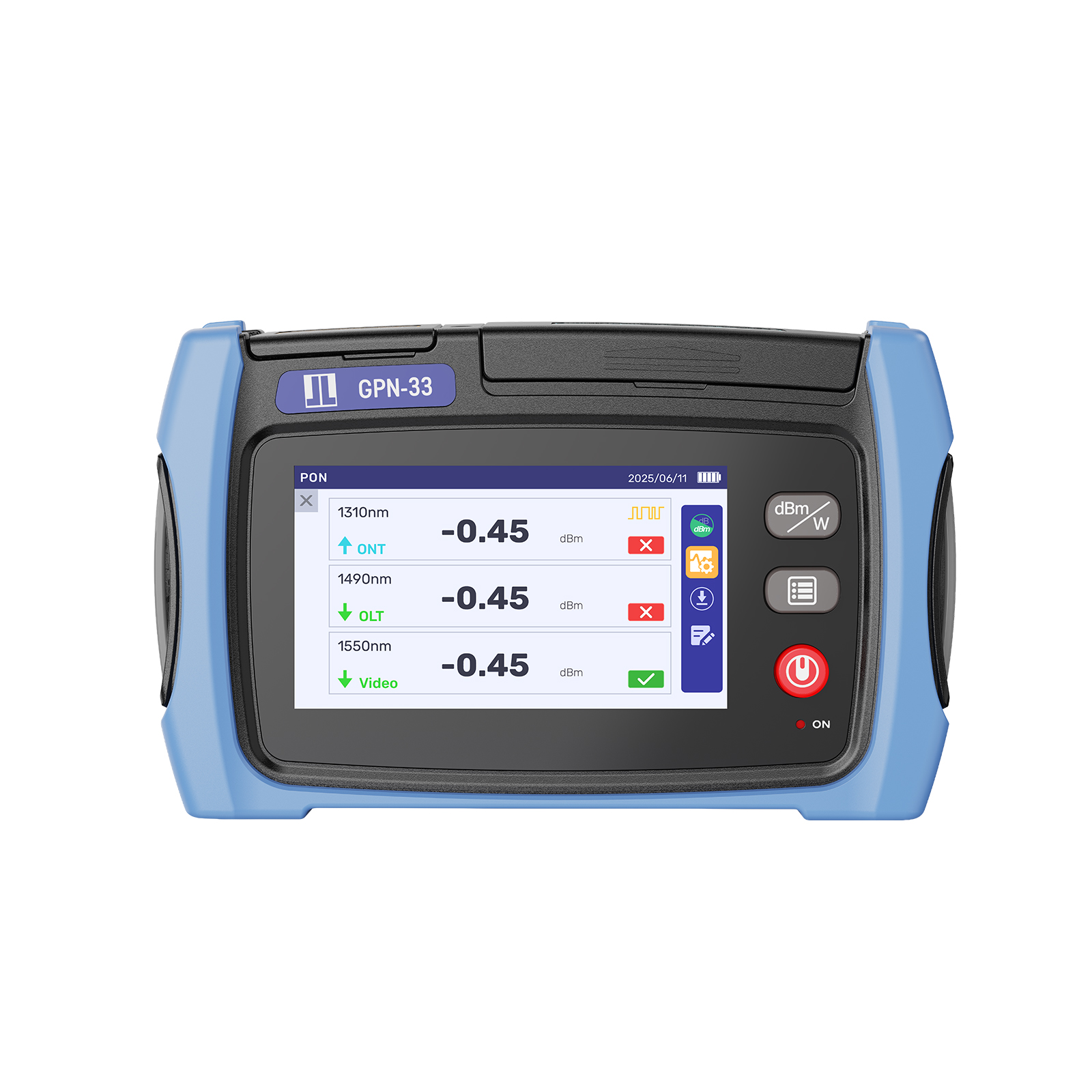

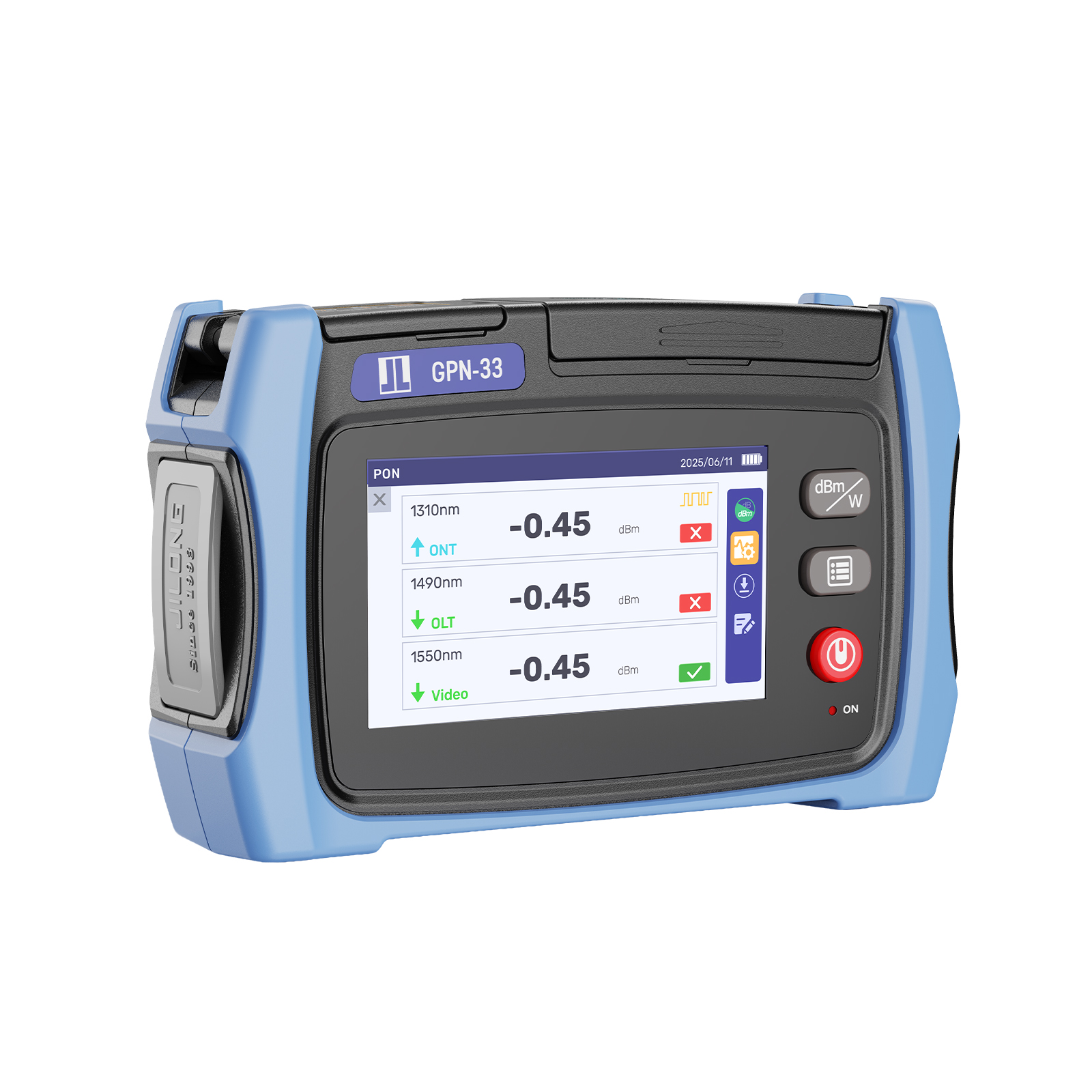

GPN-33 GPON Power Meter

Manual Catalogue Tutorials VR

Core features

4.3-inch Touch Screen

RJ45:Wire sequencing

User-initiated Calibration

5000mAh High-capacity Battery

Handheld, Compactand Light

Redesigned User Interface

Recommended Products

GPN-33 GPON Power Meter

+86 4008836695

Features

GPN-33 GPON Power Meter
● 4.3-inch Touch Screen
● RJ45:Wire sequencing
● User-initiated Calibration
● 5000mAh High-capacity Battery

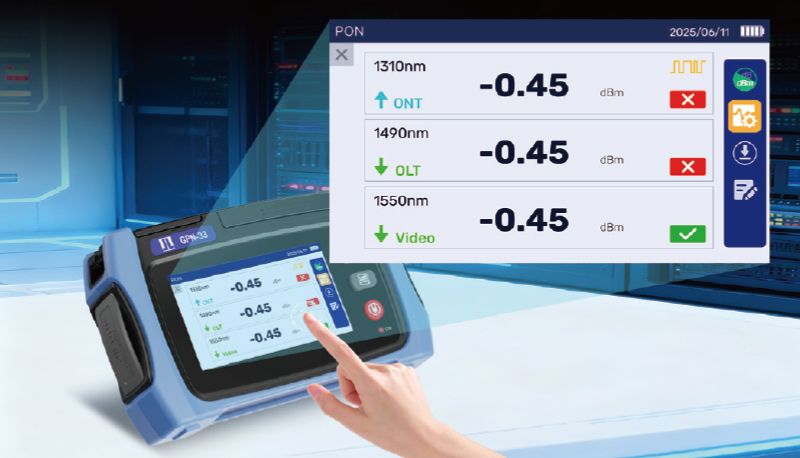

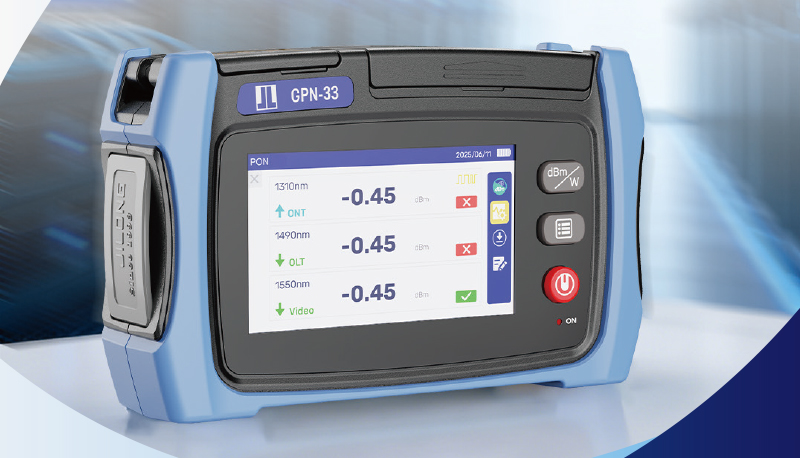

4.3" HD Capacitive Touchscreen

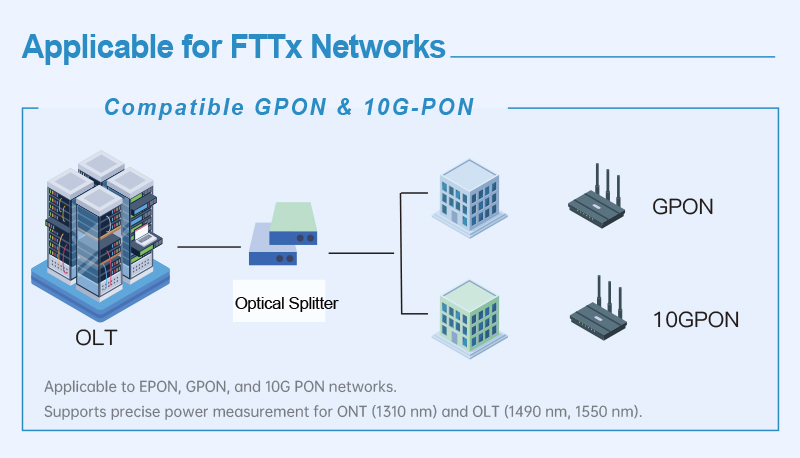

Applicable for FTTx Networks
● Applicable to EPON, GPON, and 10G PON networks.
● Supports precise power measurement for ONT (1310 nm) and OLT (1490 nm, 1550 nm).
Application scenarios
● Field Installation & Maintenance
● Network Troubleshooting
● Equipment Monitoring

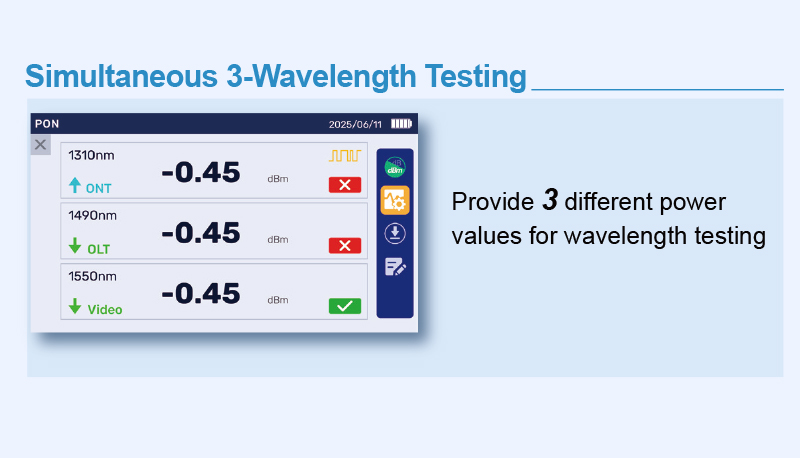

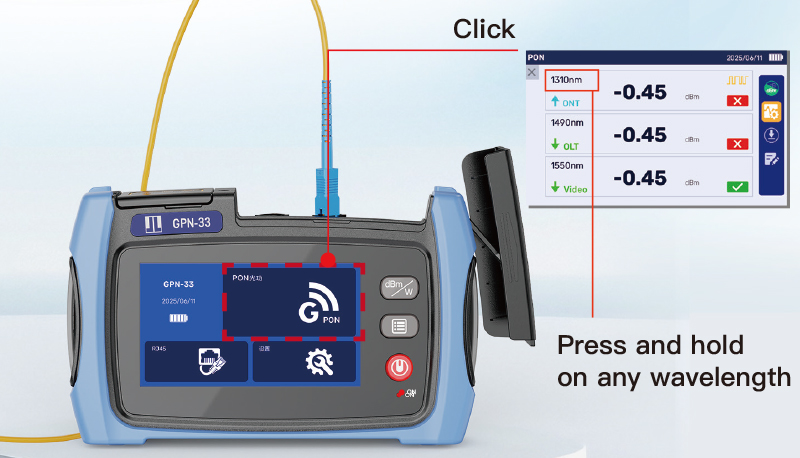

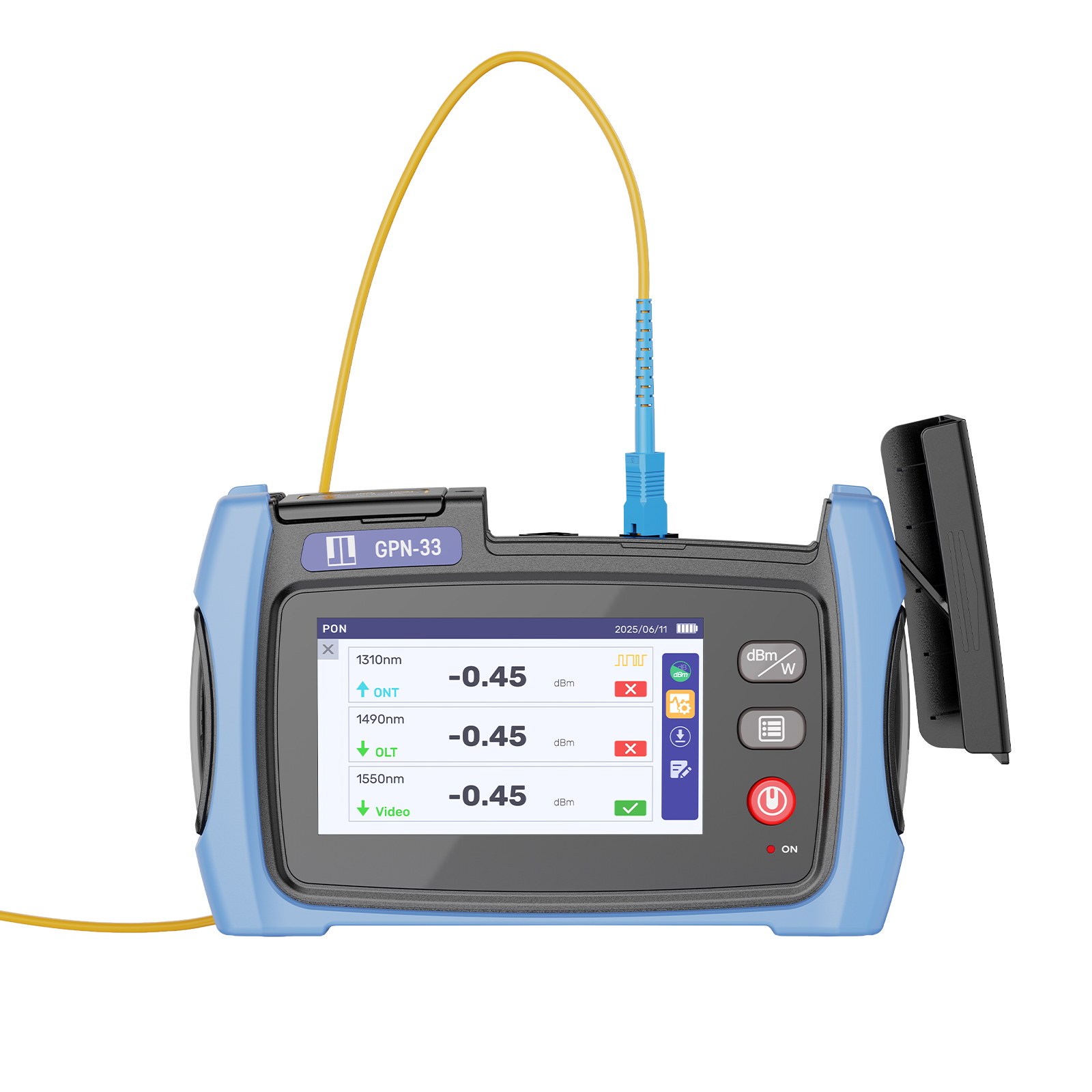

Simultaneous 3-Wavelength Testing
Provide 3 different power values for wavelength testing

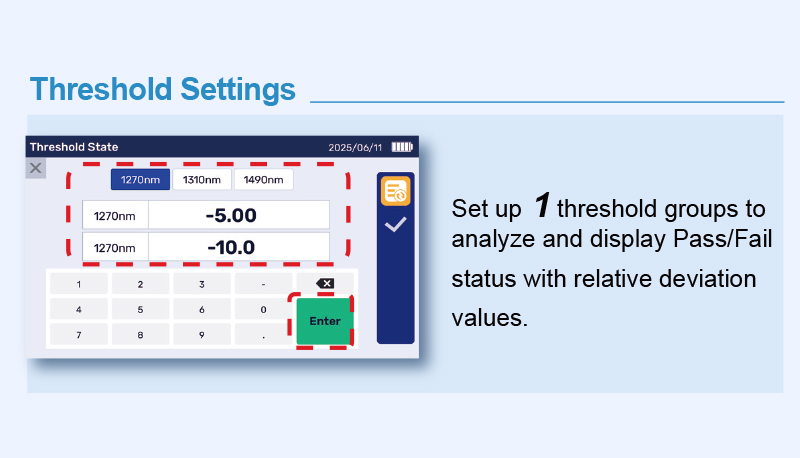

Threshold Settings
Set up 1 threshold groups to analyze and display Pass/Fail status with relative deviation values.

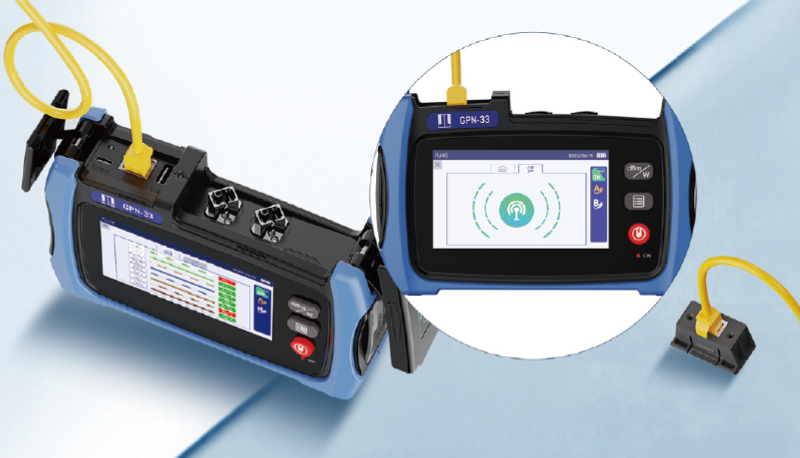

Network Testing
Stop guessing. Instantly identify cable issues and solve network problems.
5000mAh High-capacity Battery
No matter the environment. No interruptions to your work

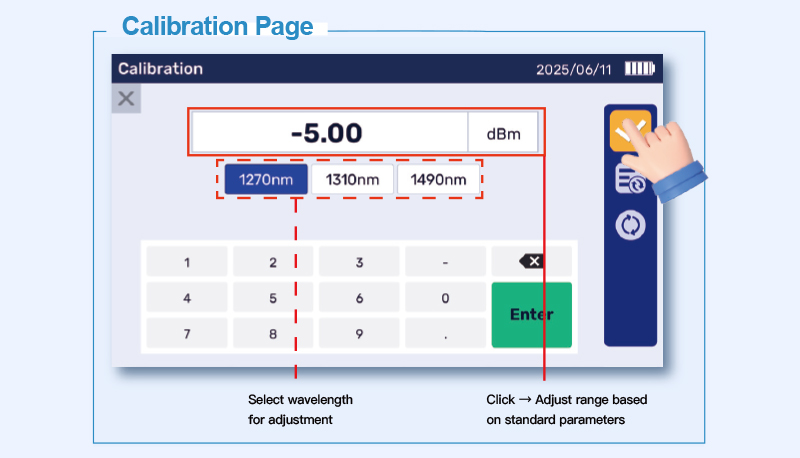

User-initiated Calibration
Calibration Page

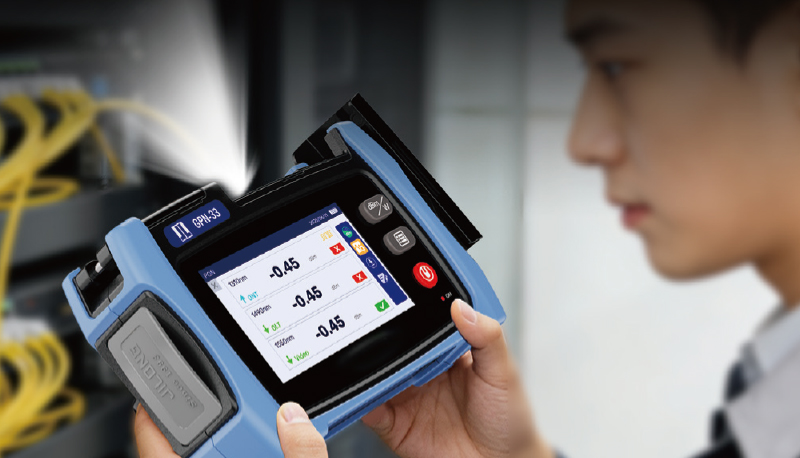

Built-in Lighting for Easier Operation
High-brightness built-in work light. Enables effortless cable work in low light.

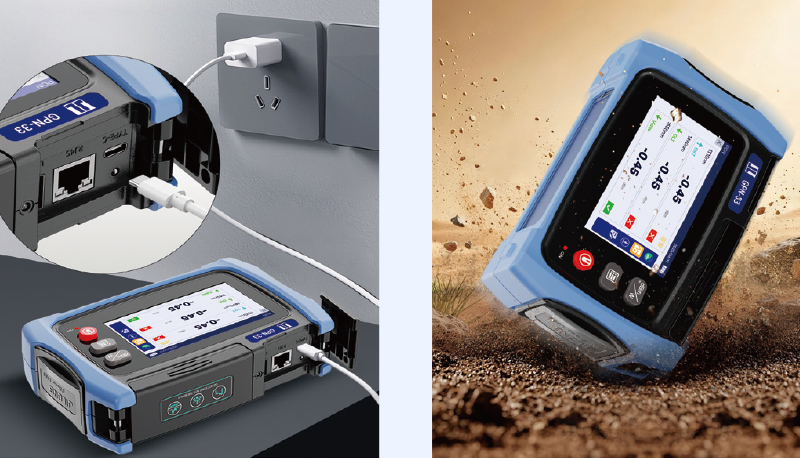

Type-C Charging
All-Body Shock-Absorbing Rubber Casing
● Universal Power, 99% Compatible.
● Rubber design reduces shock, falls, and bumps, protecting the machine

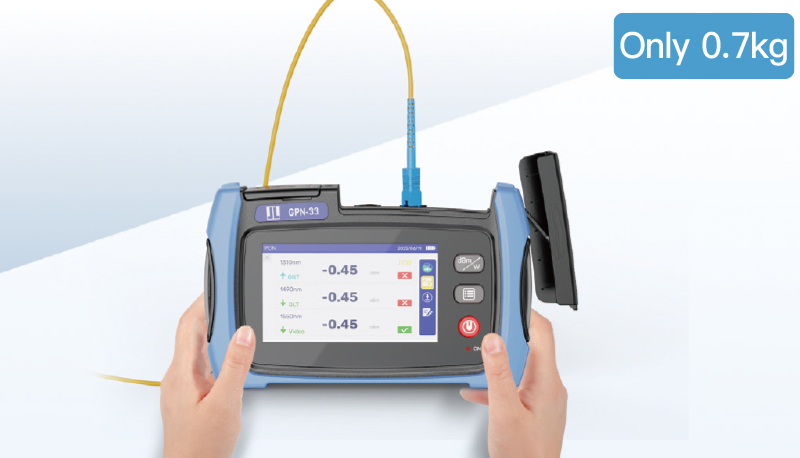

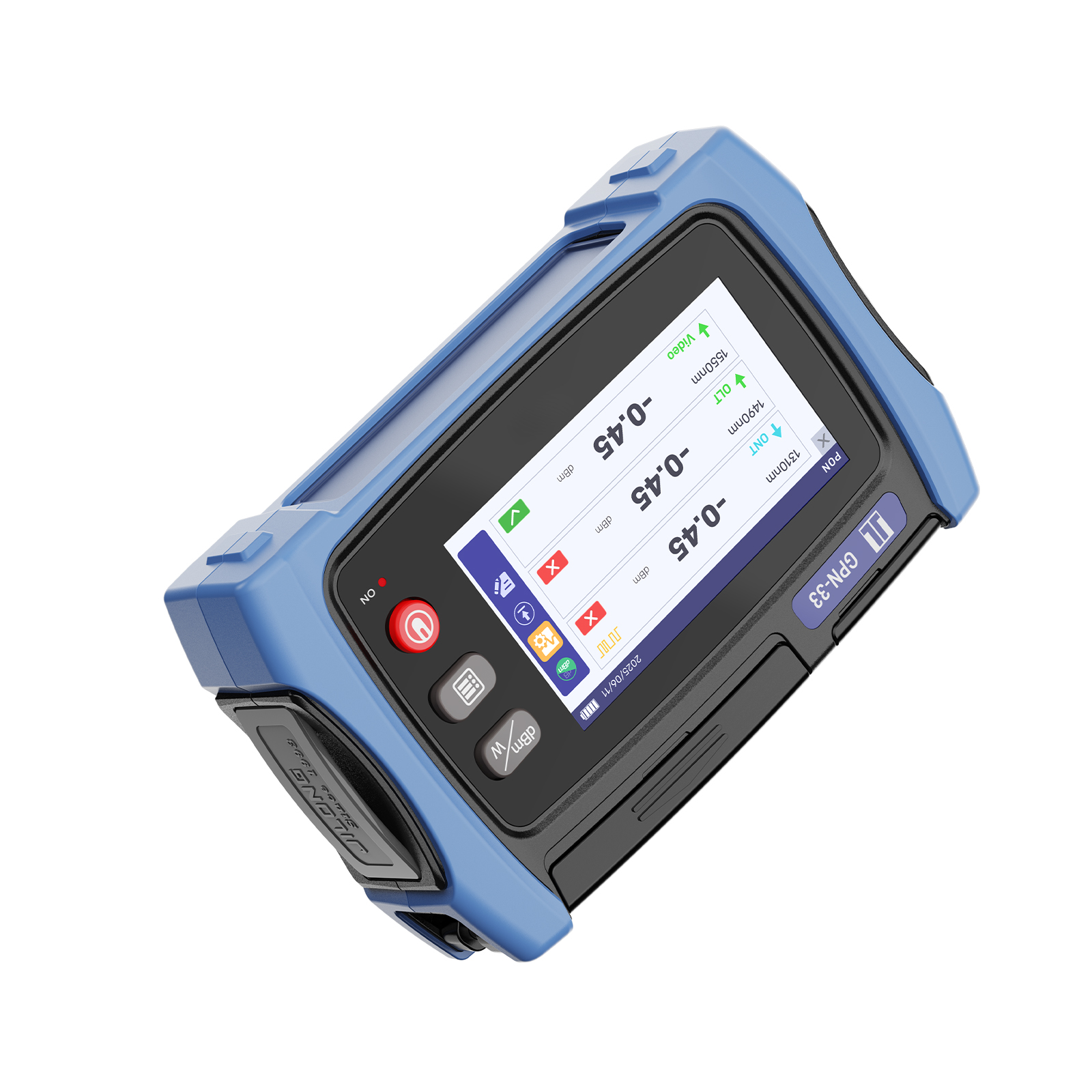

Handheld, Compact and Light

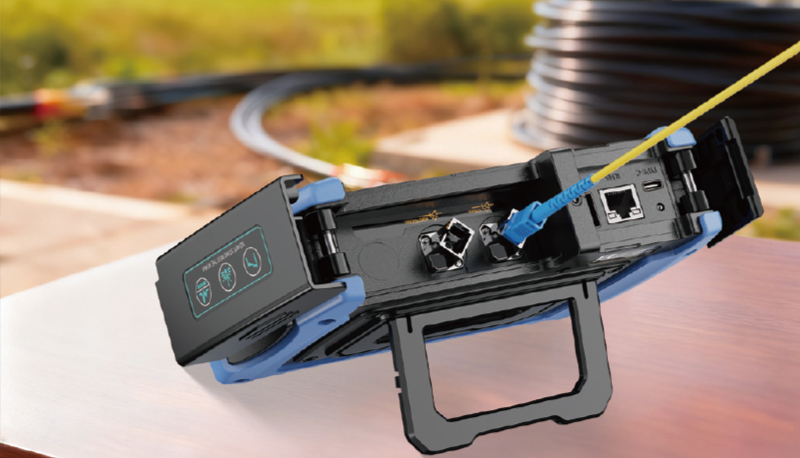

Default SC Interface

Parameters
Test Wavelength	1310nm	1490nm	1550nm
Spectral Passband (nm)	1260~1360(nm)	1480~1500(nm)	1539~1565(nm)
Isolation with Filtering Function	1490nm band＞40dB	1310nm band＞30dB	1310nm band＞30dB
	1550nm band＞40dB	1550nm band>40dB	1490nm band＞40dB
Burst Test Function	CO to ONT
Burst Measurement Range	-30~+8(dBm)	×	×
Power Uncertainty	0.2dB
Power Stability	±0.1dB
Insertion Loss in Through Path	<1.5dB
Inherent Uncertainty	0.25dB±1nW@1550nm
Threshold Group	5 configurable threshold groups
Dual-port passthrough	1310/1490/1550(nm)
ONT	1490nm
OLT	1550nm
OPM Module
Test Wavelength	1310nm	1490nm	1550nm
Test Range	+10~-35(dBm)	+10~-40(dBm)	+25~-40(dBm)
Calibration Wavelength	1310/1490/1550(nm)
Power Uncertainty	0.2dB
General Parameters
Pass/Fail	√
Language	English, Chinese, Spanish, French, Portuguese, Russian, Thai, Korean
Optical Fiber Port	SC/UPC
Display Screen	4.3-inch color LCD display screen
Port	Charging Port x 1, USB 2.0 x 1, RJ45 x 1
Working Temperature	-10 ~ 50˚C (0-40 ℃ for use with power, 0 to 35 ℃ battery charging)
Storage Temperature	-20 ~ 60˚C
Height	4000 m
Humidity	0 to 90% RH (在20% -90% 739874 AC adapter, non-condensing)
Power Mode	100 - 240V AC, 50/60Hz (AC adapter)
Battery	3.7V, 5000mAh, ≥18.5Wh
Auto Power-O Time	10min
LED Lighting	Light Intensity>15000mcd
Data Storage	Memory: 1000 power measurement recordsExternal Storage: USB
Size	179 mm (W) × 112 mm (H) × 48 mm (D)
Weight	0.6 kg (Unit + Battery)
