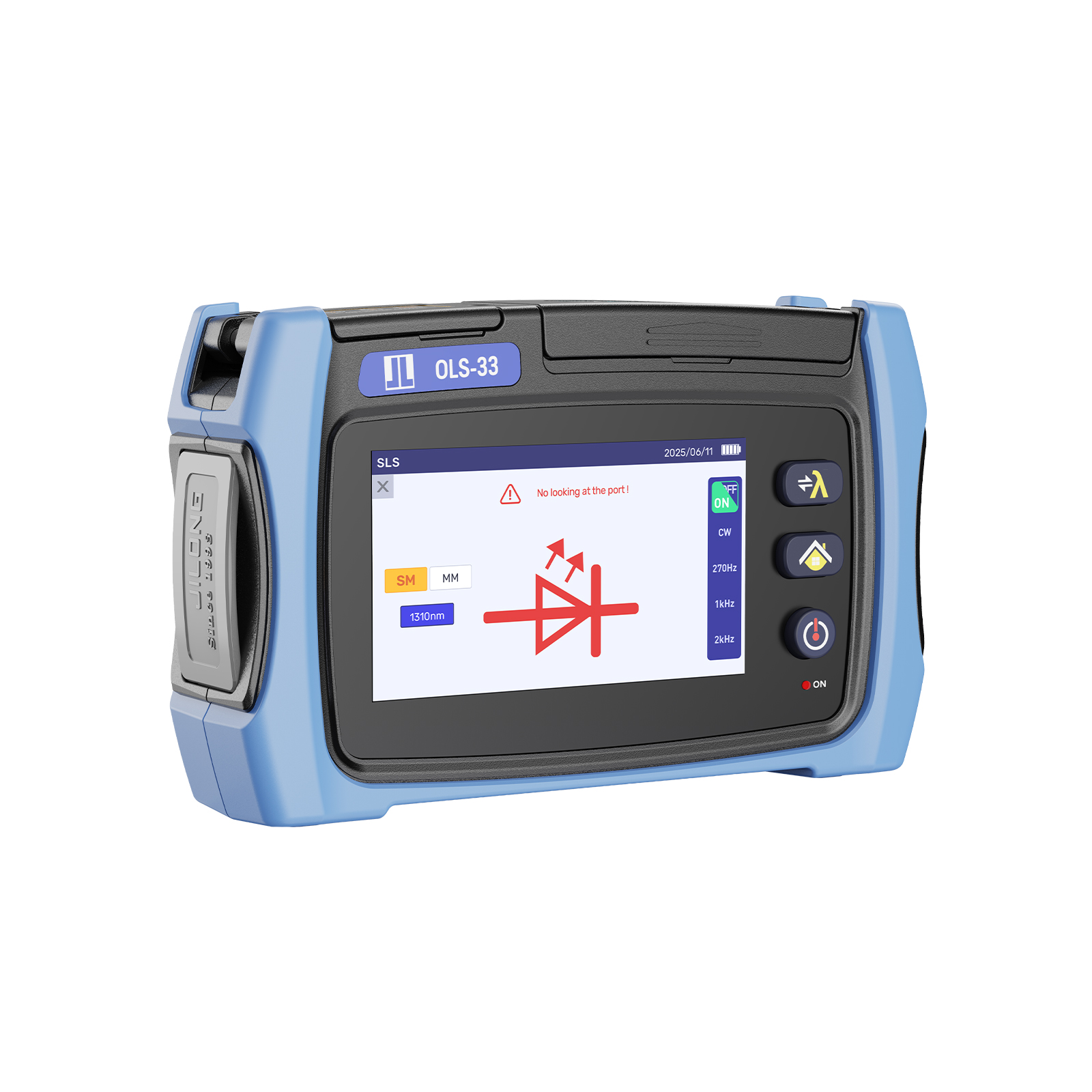

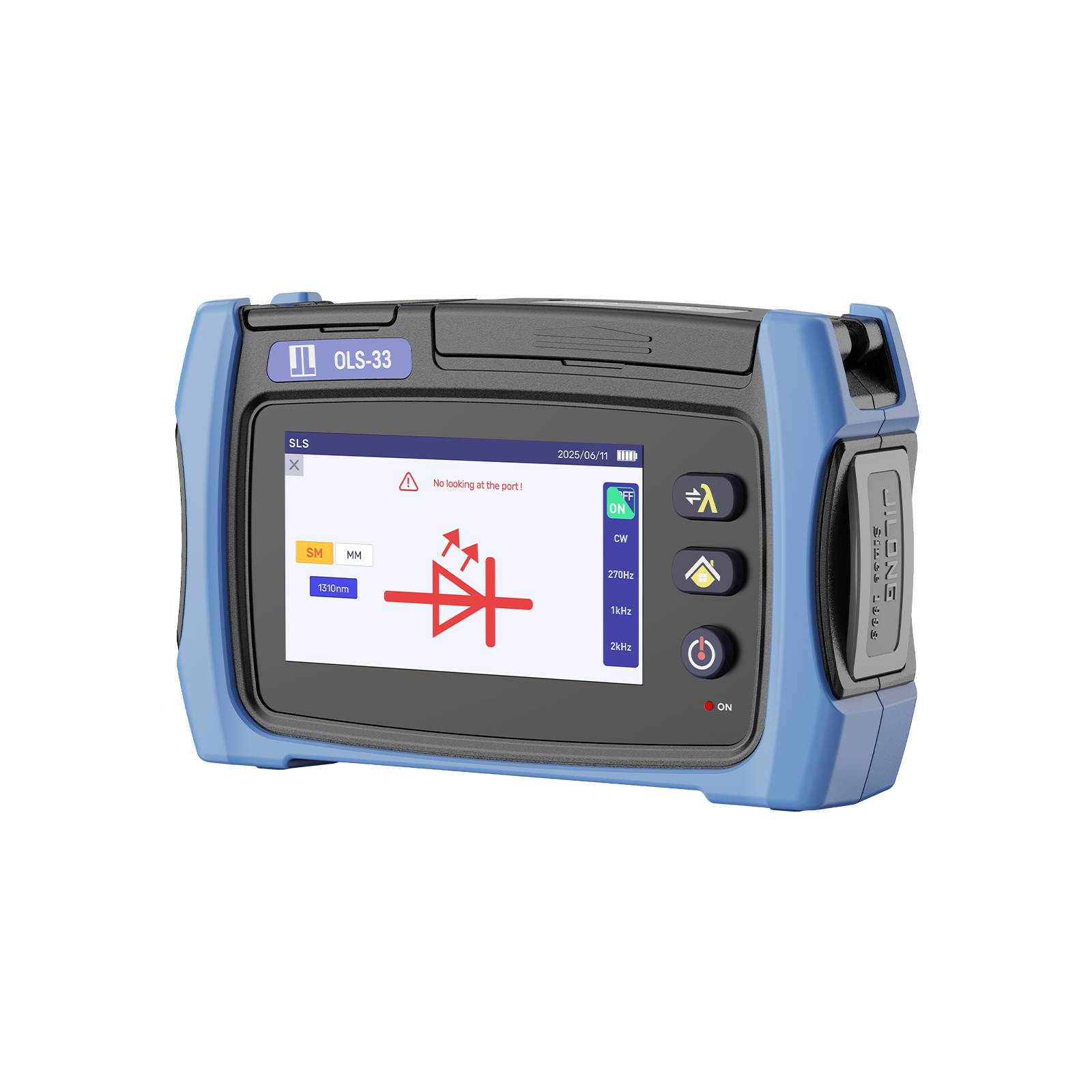

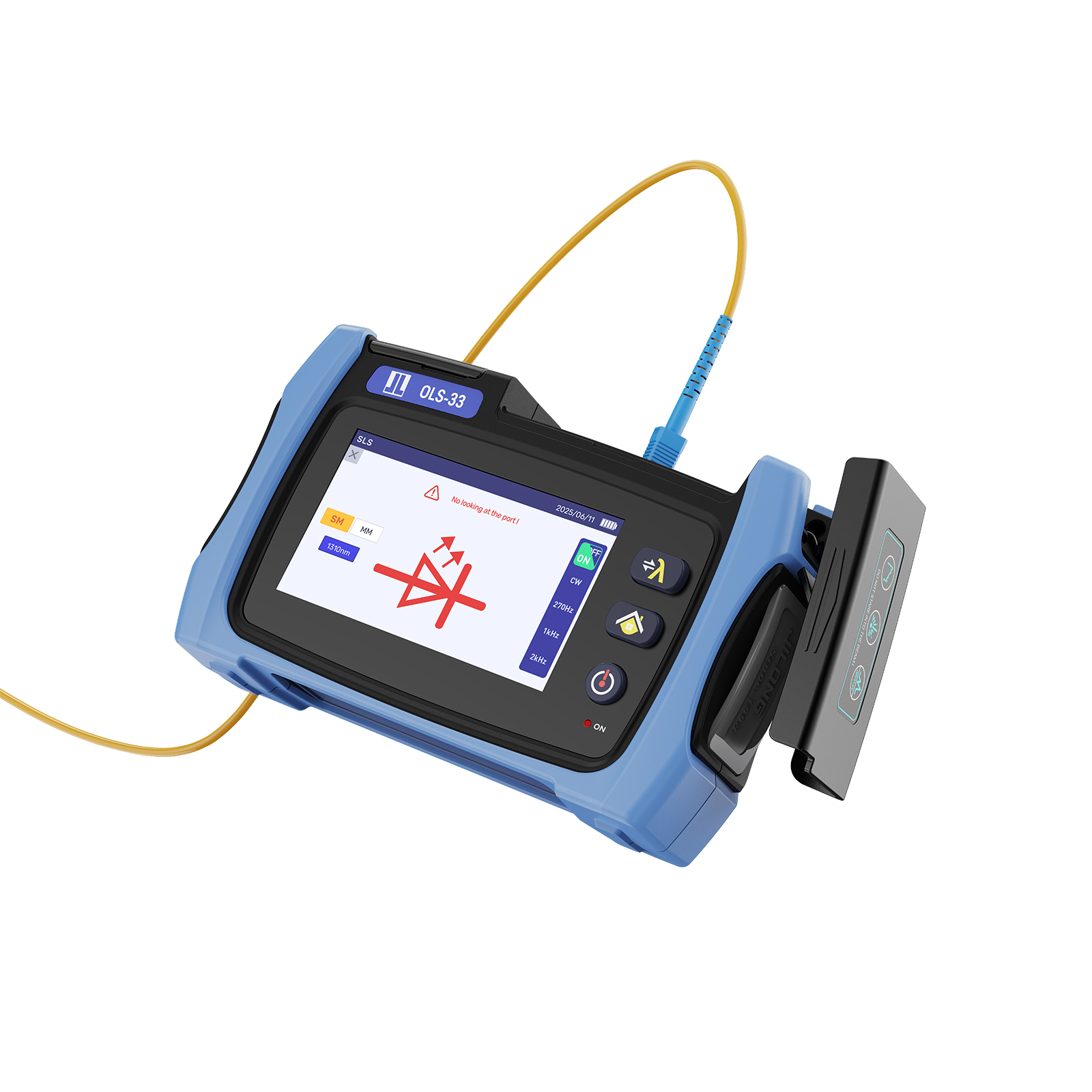

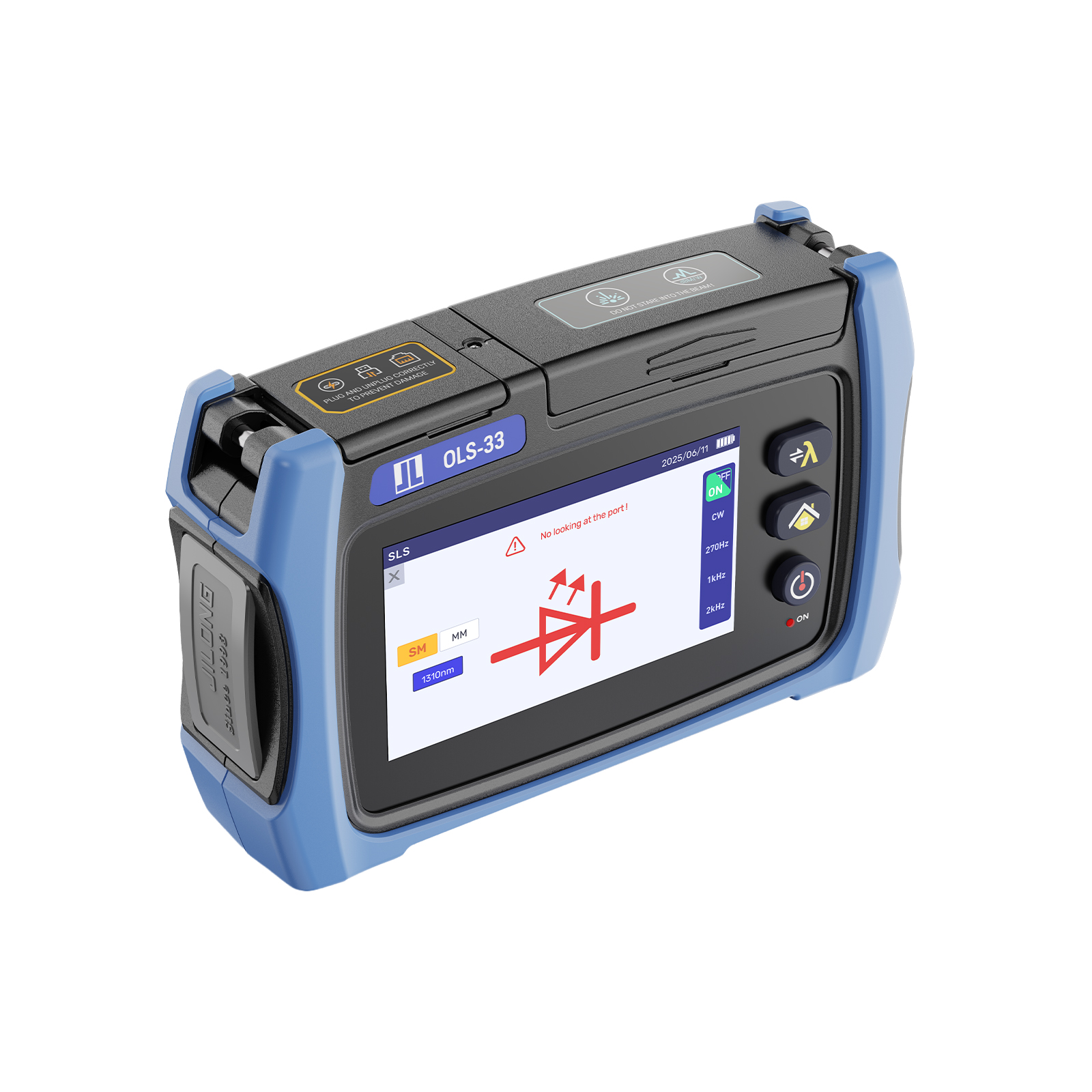

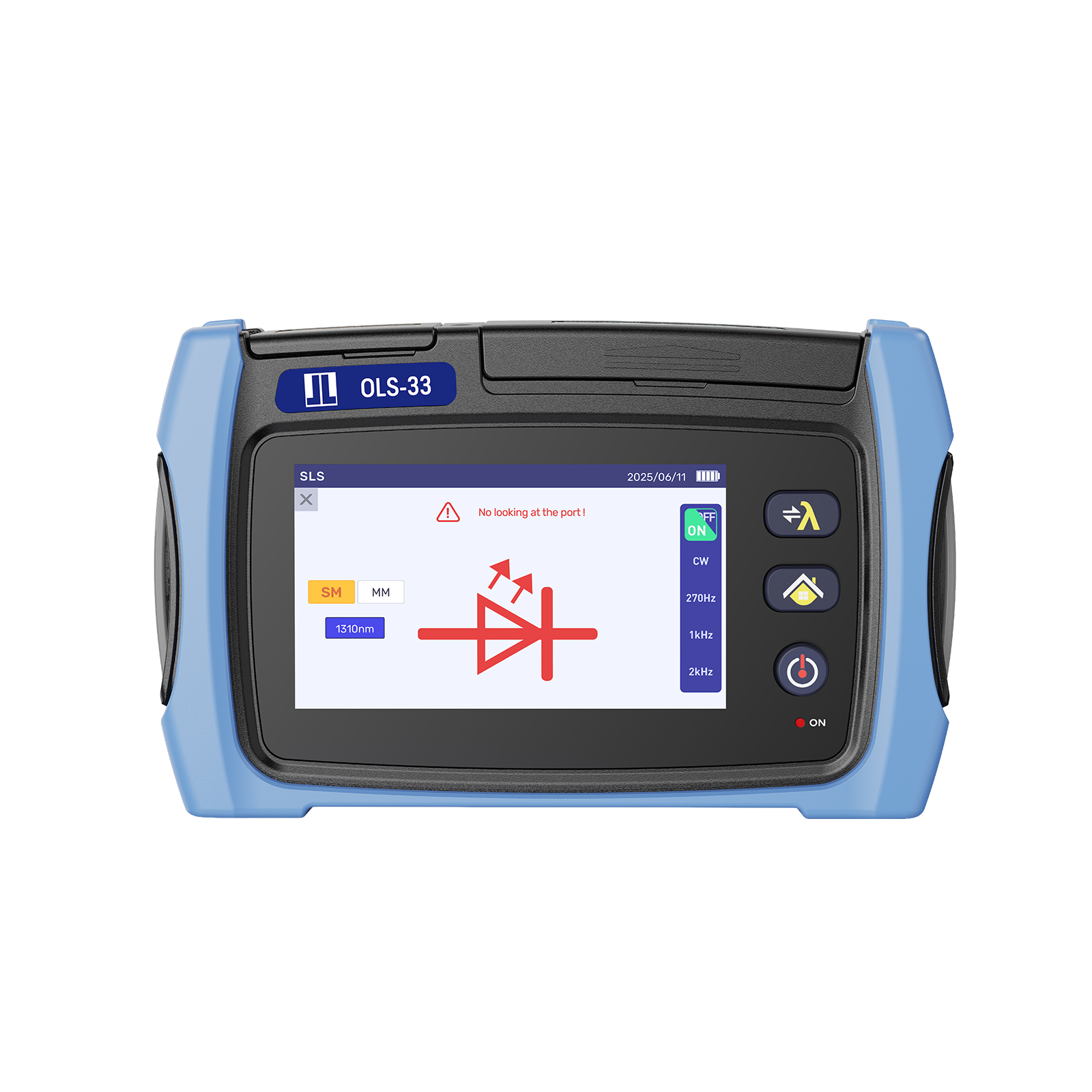

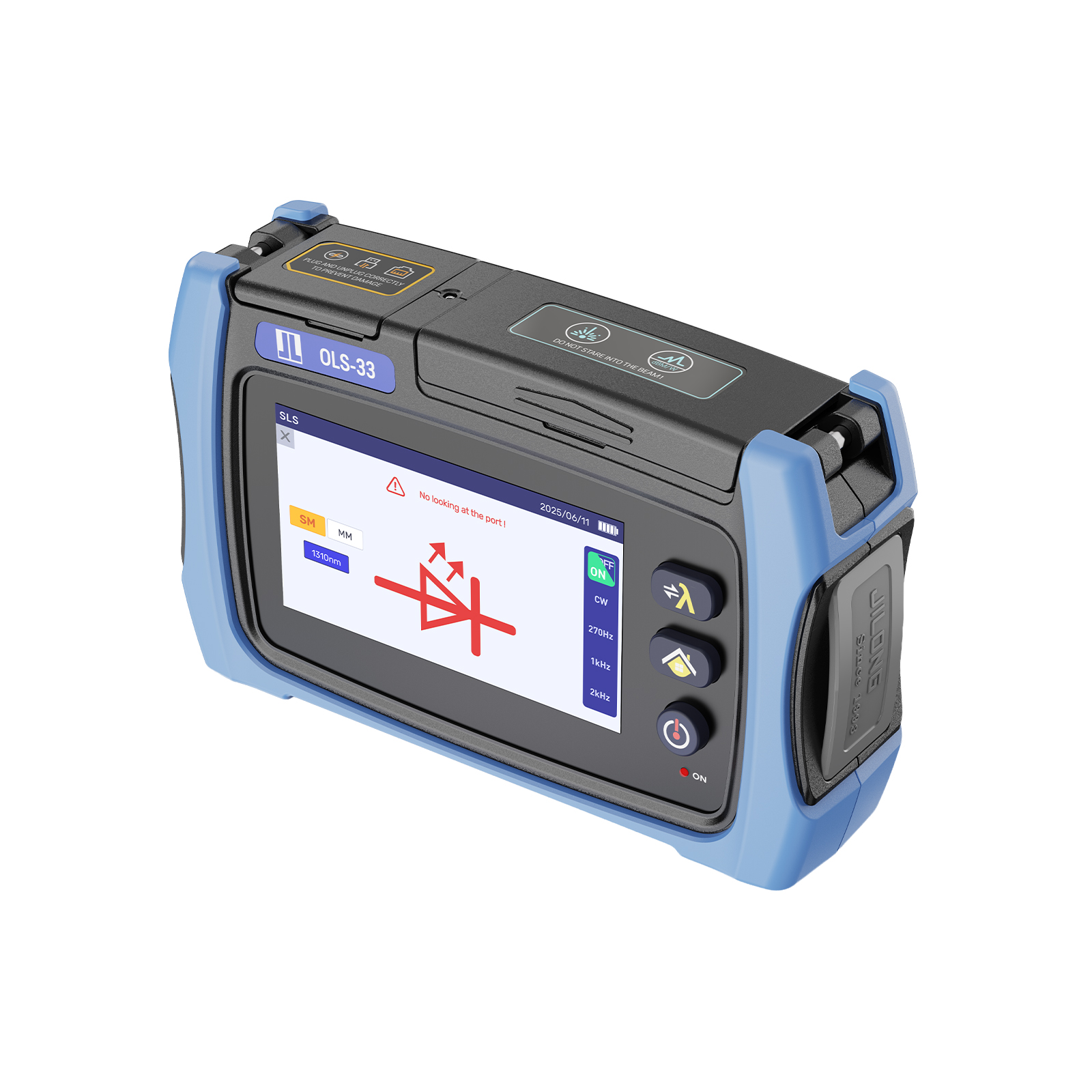

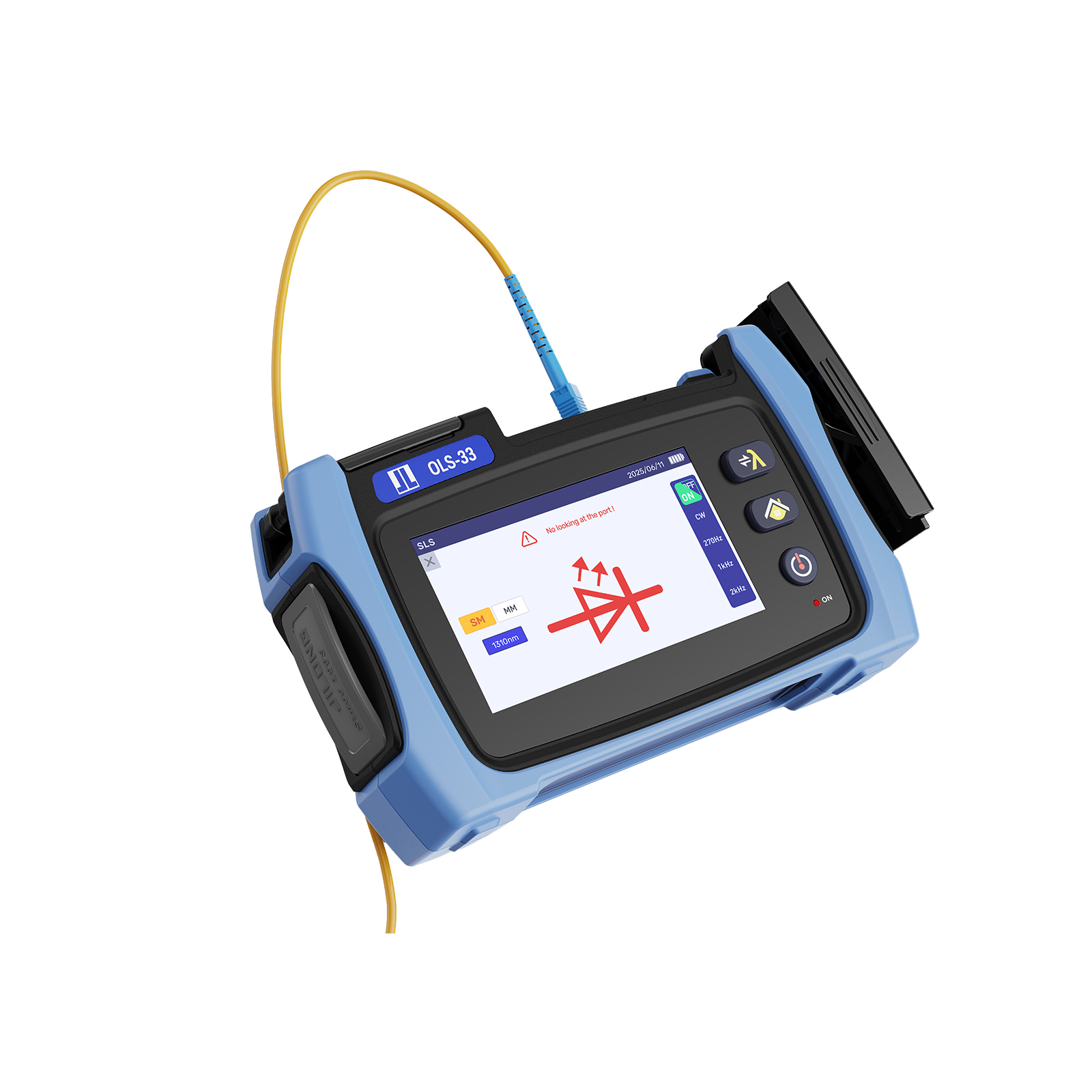

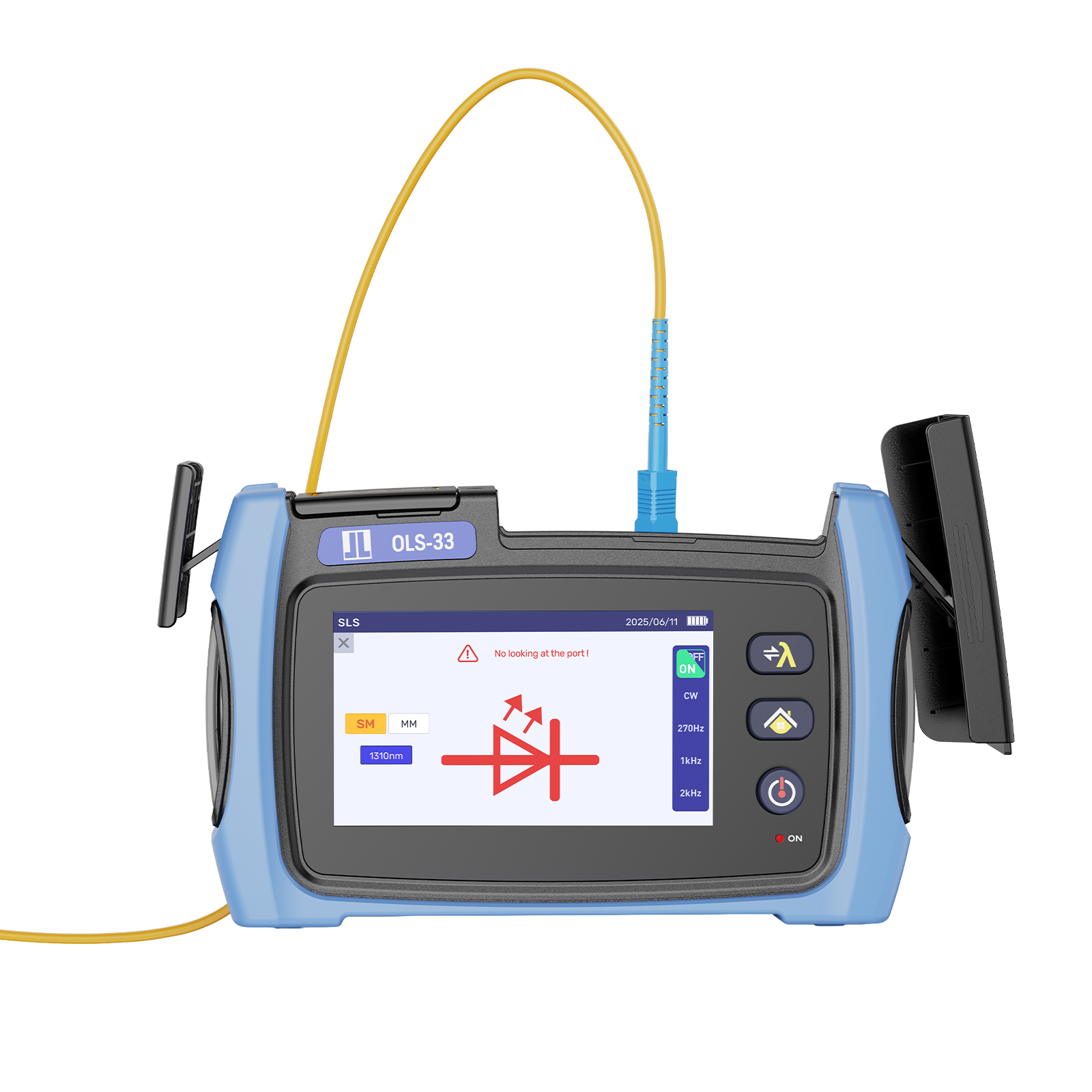

Optical Light Source OLS-33

Optical Light Source OLS-33 Optical Light Source OLS-33 Optical Light Source OLS-33 Optical Light Source OLS-33 Optical Light Source OLS-33 Optical Light Source OLS-33 Optical Light Source OLS-33 Optical Light Source OLS-33 Optical Light Source OLS-33
Optical Light Source OLS-33 Optical Light Source OLS-33 Optical Light Source OLS-33 Optical Light Source OLS-33 Optical Light Source OLS-33 Optical Light Source OLS-33 Optical Light Source OLS-33 Optical Light Source OLS-33 Optical Light Source OLS-33
Manual Catalogue Tutorials VR
Core features

4.3-inch Touch Screen

RJ45:Wire sequencing

Carrier Output

Lighting

Handheld, Compact and Light

5000mAh High-capacity Battery


Recommended Products
  • OLS-22 Mini Multi-functional Optical Light Source
  • KL-6200 FiberSMART OTDR
  • 300T 6-Motor G654E Trunk Fusion Splicer
  • OPN-35 PON Power Meter
  • OFI-45P Optical Fiber Identifier
Optical Light Source OLS-33
RequestRequest a quote consultOnline consultation Telephone+86 4008836695
Features
  • 1.jpg

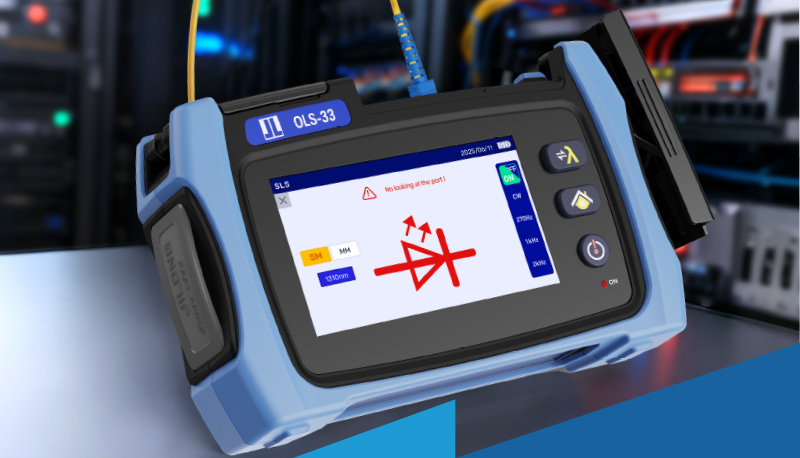

    OLS-33 Optical Light Source
    ● 4.3-inch Touch Screen
    ● RJ45:Wire sequencing
    ● Carrier Output
    ● Lighting
    ● Handheld, Compact and Light
    ● 5000mAh High-capacity Battery
  • 2.jpg
    Application scenarios
    ● Optical Link Test
    ● Fiber optic sensing
    ● Optical cable construction and maintenance
  • 3.jpg

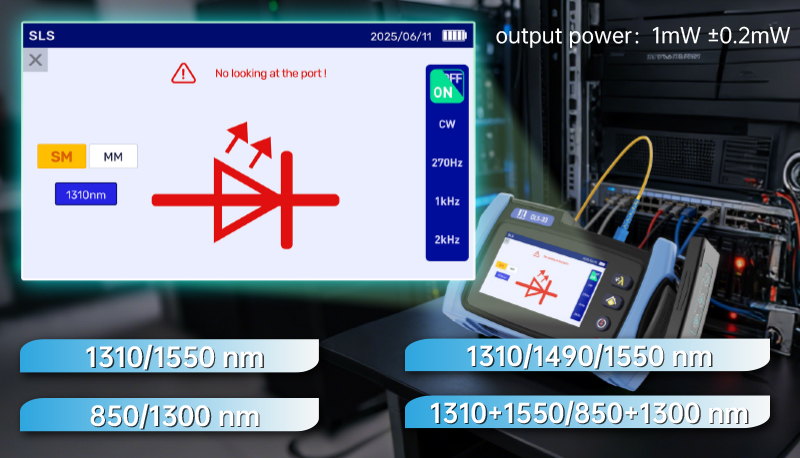

    4 Models Available
  • 4.jpg

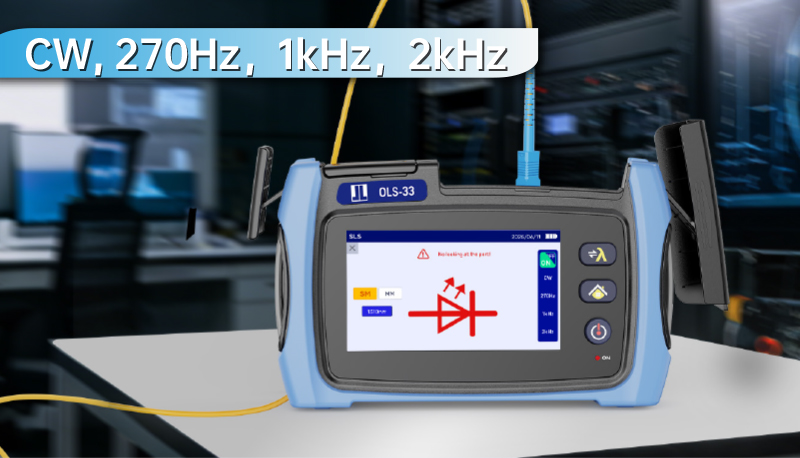

    Modulated Carrier Output
    Continuous Wave (CW) output with multiple modulation frequencies.
  • 5.jpg

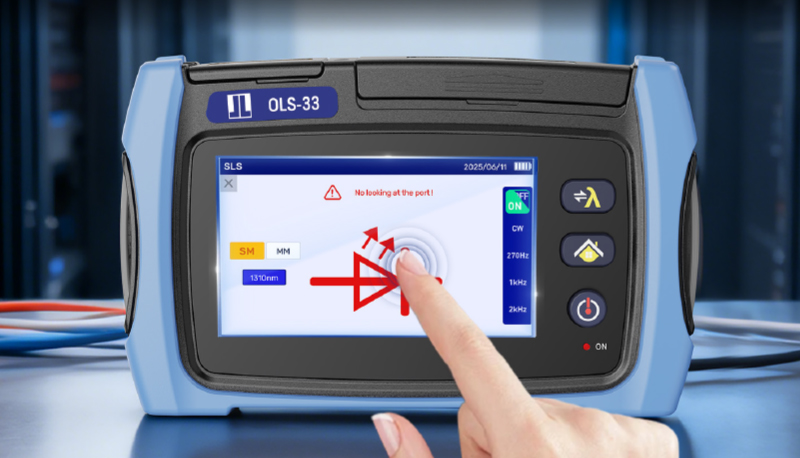

    4.3-inch touch screen
  • 6.jpg

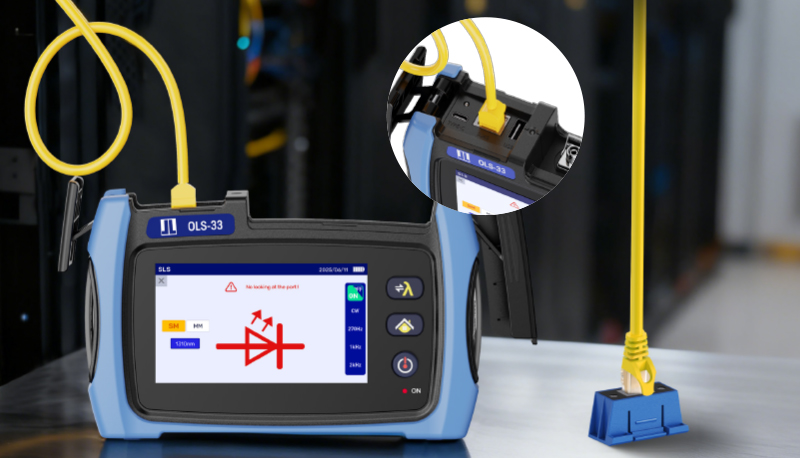

    Network Wire Sequencing
    Accurate wire sequencing and determine the signal transmission interface design to prevent signal loss.
  • 7.jpg

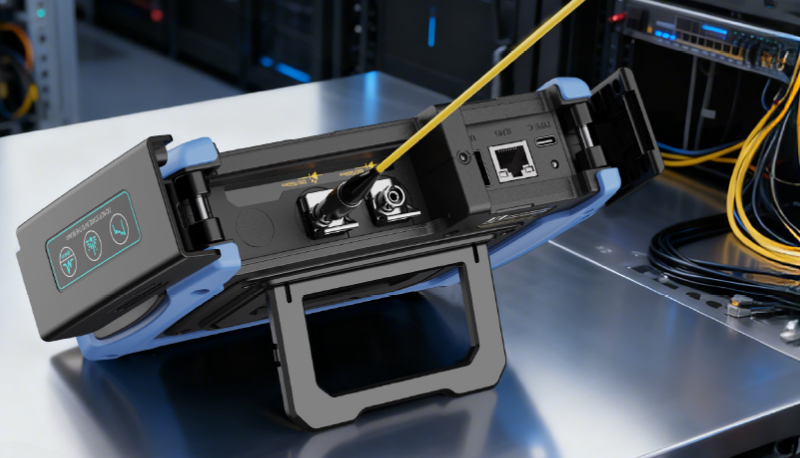

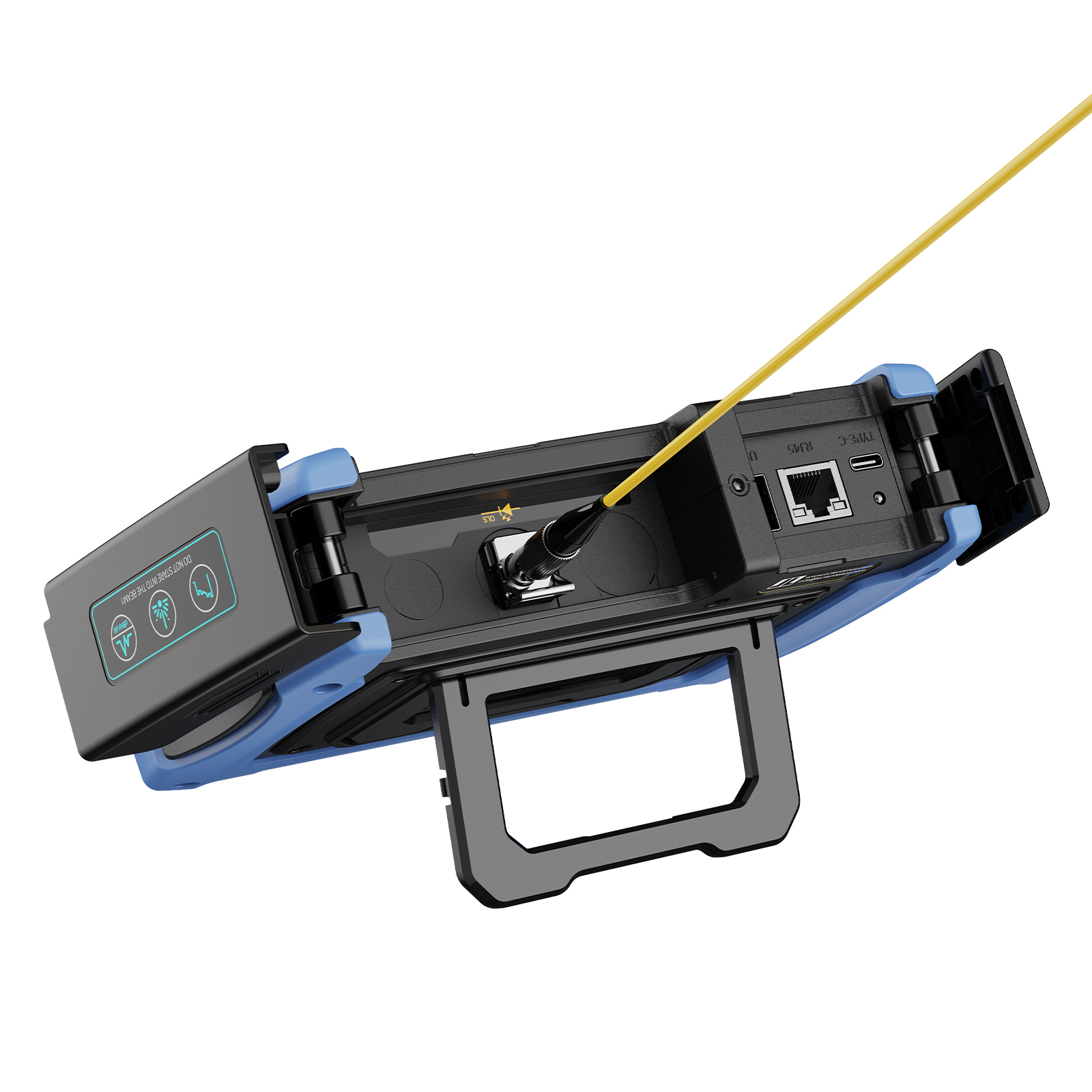

    Hidden Holder Design
    Tackle handheld inaccuracy. Boost your efficiency. Minimize operator fatigue.
  • 8.jpg

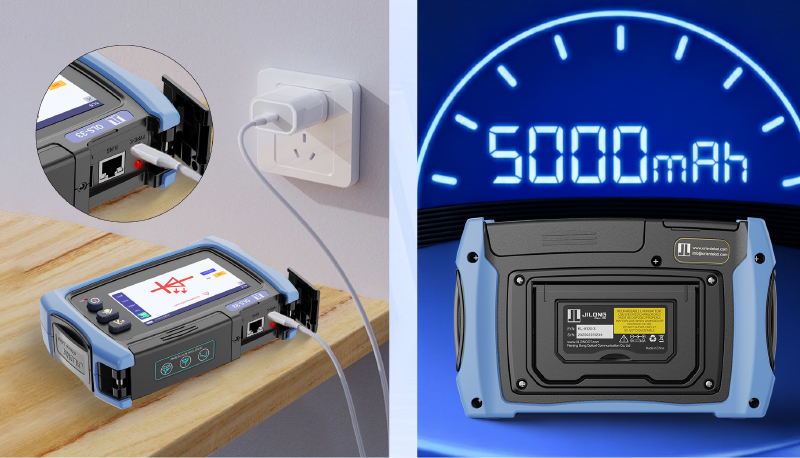

    Type-C Charging
    5000mAh High-capacity Battery
    ● Universal power. Unpacked convenience.
    ● No matter the environment. No interruptions to your work.
  • 9.jpg

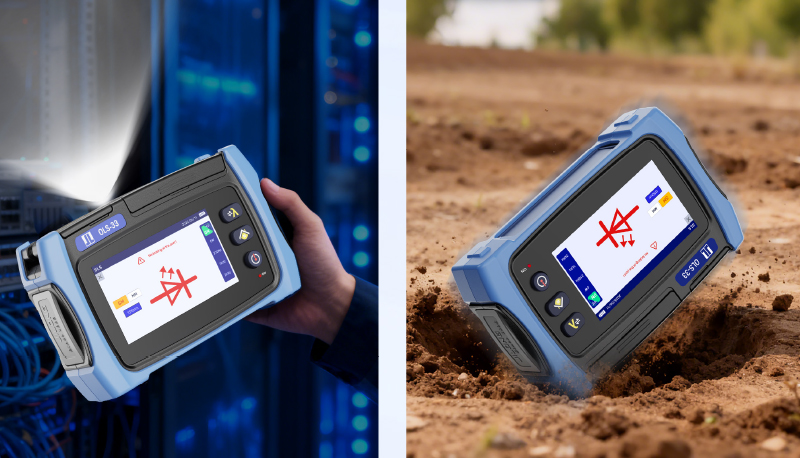

    Built-in lighting for easier operation
    All-Body Shock-Absorbing Rubber Casing
    ● High-brightness built-in work light. Enables effortless cable work in low light
    ●  Rubber design reduces shock, falls, and bumps, protecting the machine
  • 10.jpg

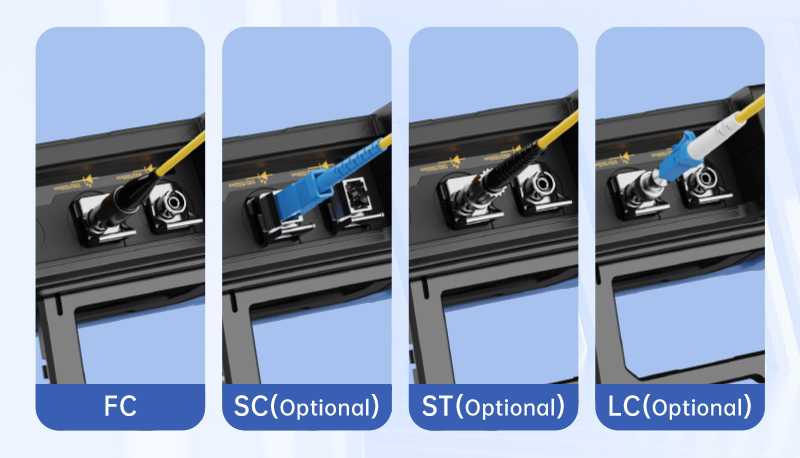

    Supports FC/ST/SC/LC adapters
Product Specifcations
OLS Parameters
ModelOLS-33-SOLS-33-MOLS-33-POLS-33-MS
Wavelength （nm）1310/1550850/13001310/1490/15501310+1550/850+1300
Spectral width （nm）≤5/≤5SM≤5
Output power （nm）1mW ±0.2mW
Output stability（dB）±0.05/15min，±0.2/8h
Modulation frequencyCW, 270Hz, 1kHz, 2kHz
Working Temperature-10~+50（℃）
Storage Temperature-20~+60（℃）
Auto Power-Off Time10min
General Parameters
LanguageEnglish, Chinese, Spanish, French, Portuguese, Russian, Thai, Korean
Optical Fiber PortFC/UPC (SC/UPC optional)
Display Screen4.3-inch color LCD display screen

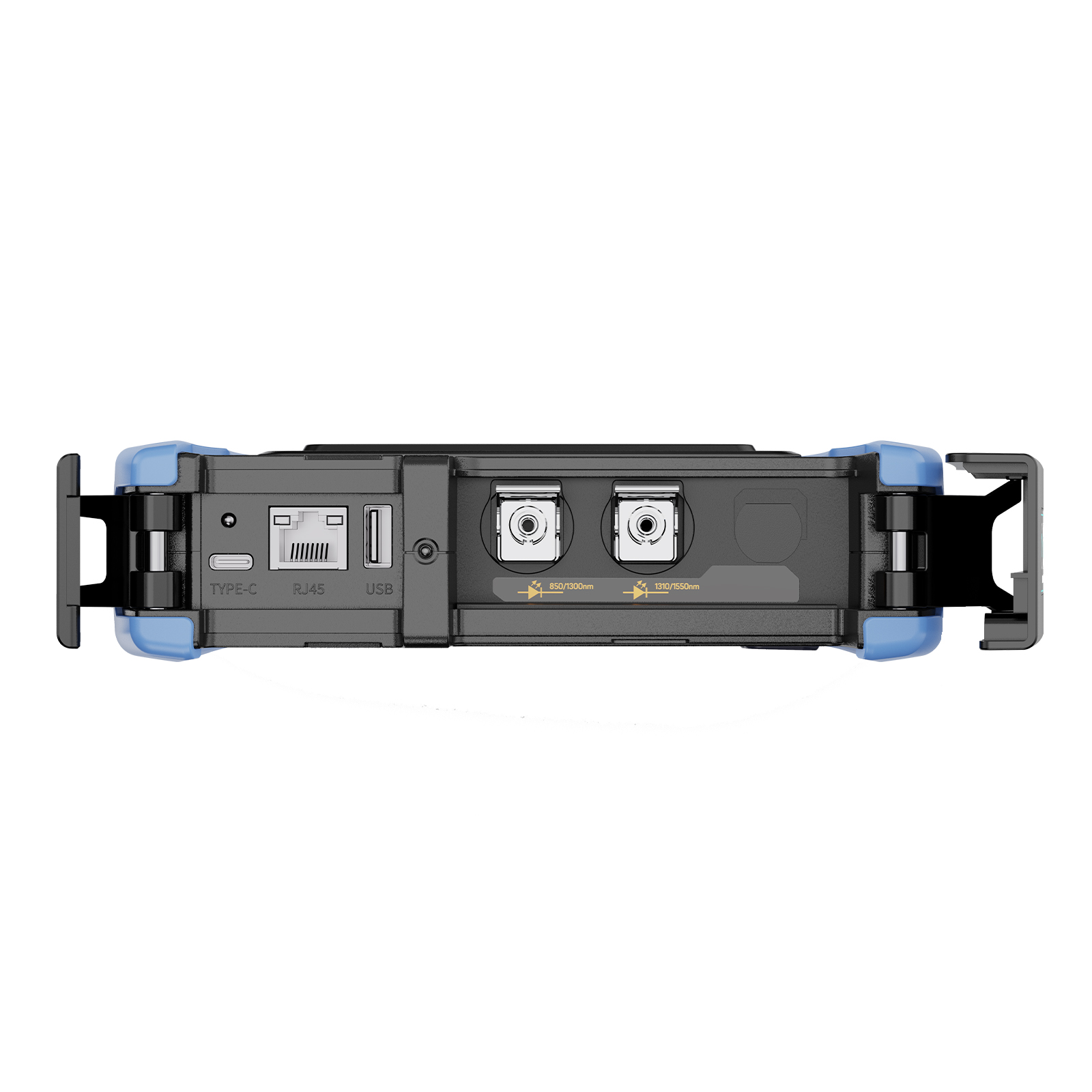

PortCharging port x 1,  USB 2.0 x 1, RJ45 x 1
Working Temperature-10 - 50˚C (0-40 ℃ for use with power, 0 to 35 ℃ battery charging)
Storage Temperature-20 to 60˚C
Height4000 m
Humidity0 to 90% RH (20% -90% 739874  AC adapter , non-condensing)
Power Mode100 - 240V AC, 50/60Hz (AC adapter)
Battery3.7V,5000mAh,≥18.5Wh
LightingLight Intensity>15000mcd
Data StorageMemory: 1000 power measurement records  External Storage: USB
Size179 mm (W) × 112 mm (H) × 48 mm (D)
Weight0.6 kg (Unit + Battery)

Note: All specifications are based on measurements with a new battery at 23°C ± 2°C.
