KL-22F Hand Held High Precision Fiber Cleaver

KL-22F Hand Held High Precision Fiber Cleaver KL-22F Hand Held High Precision Fiber Cleaver KL-22F Hand Held High Precision Fiber Cleaver KL-22F Hand Held High Precision Fiber Cleaver KL-22F Hand Held High Precision Fiber Cleaver KL-22F Hand Held High Precision Fiber Cleaver KL-22F Hand Held High Precision Fiber Cleaver
KL-22F Hand Held High Precision Fiber Cleaver KL-22F Hand Held High Precision Fiber Cleaver KL-22F Hand Held High Precision Fiber Cleaver KL-22F Hand Held High Precision Fiber Cleaver KL-22F Hand Held High Precision Fiber Cleaver KL-22F Hand Held High Precision Fiber Cleaver KL-22F Hand Held High Precision Fiber Cleaver
Category:　Fusion Splicer
Manual Catalogue Tutorials VR
Core features
● Typical Cleave Angel 0.5°● Double Fiber Holders● Blade life 48,000 cleaves● Hand held design, Small, compact size and light weight● Applicable to 250um, 900um, 3.0mm fiber cable and flat cable● Large capacity waste fiber bin, reduce pollution and scratches
Recommended Products
  • 280T All-Rounder Middle Trunk Line Fusion Splicer
  • KL-21C High Precision Fiber Cleaver
  • KL-360T Backbone Optical Fusion Splicer
  • KL-23F High Precision Fiber Cleaver
  • KL-6200 FiberSMART OTDR
  • JBL-16 Optical Fiber Cleaver Blade
  • OLS-22 Mini Multi-functional Optical Light Source
KL-22F Hand Held High Precision Fiber Cleaver
Category: Fusion Splicer
RequestRequest a quote consultOnline consultation Telephone+86 4008836695
Features
  • 1-2.jpg
    Palm Fiber Cleaver
    ● New appearance design
    ● Double fixture configuration
  • 1-4.jpg

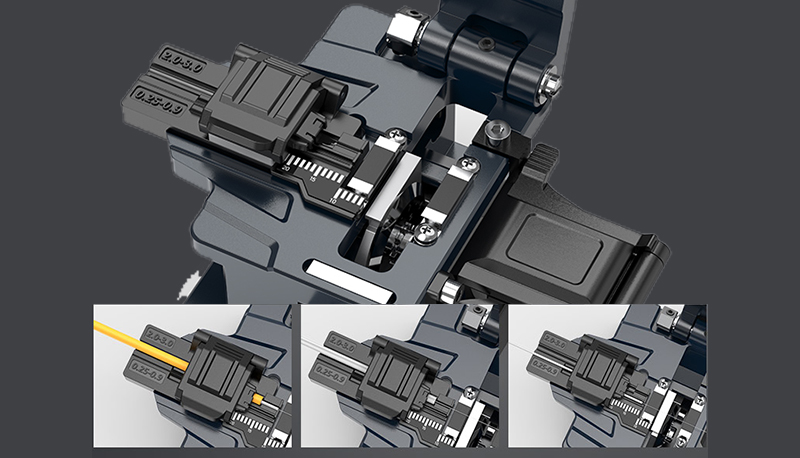

    All-in-one Universal Fixture
    ● Reinforced silicone pressure pad, clamping the cable tightly, the fiber is not easy to slide
    ● Also available: single core: 250μm, 900μm, 3.0mm, leather cable / multi-core: 2 to 12 cores
  • 1-5.jpg

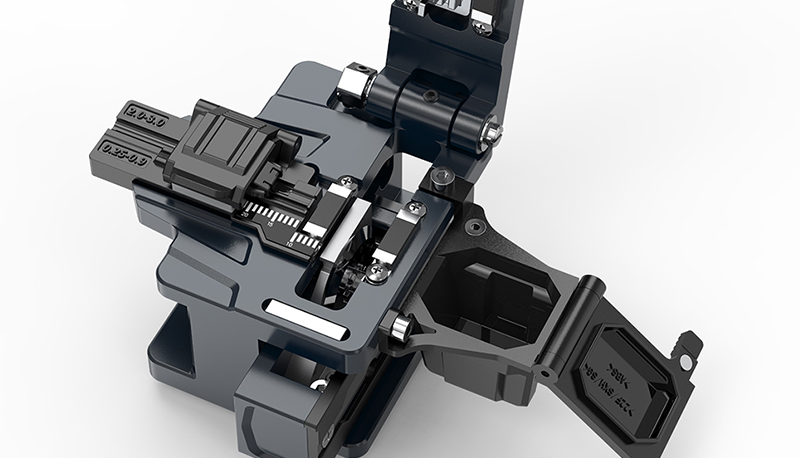

    waste fiber collection box
    ● Equipped with waste fiber collection box
    ● Solve the problems of difficult collection of waste fiber and easy injury
  • 1-3.jpg

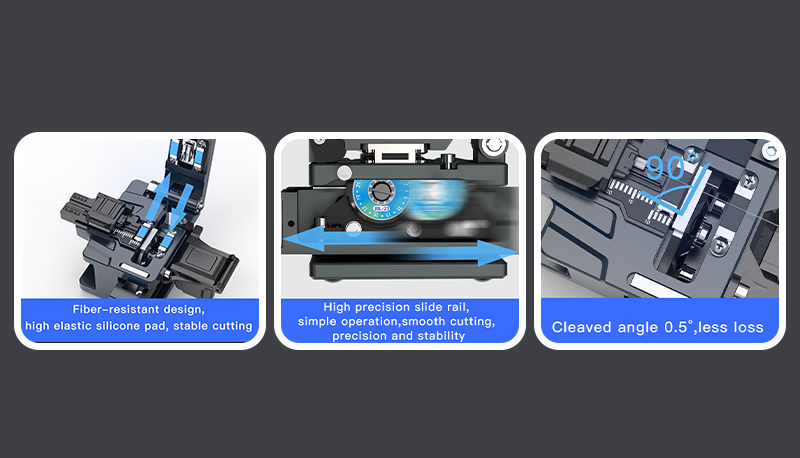

    Factors that determine cutting precision
    ● Optical fiber cleaver for hot-melt and cold connection
    ● High-elastic silicone pressure sheet, anti-breakage design
    ● High-precision slide rail, precise and stable fiber cutting
    ● Cutting angle 0.5° (typical value), low splice loss
  • 1-1.jpg

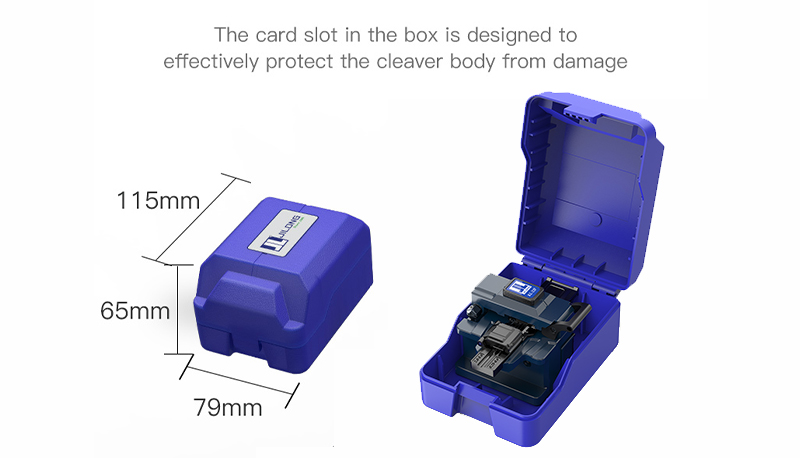

    Equipped with anti-drop box
    ● Easy to carry
    ● Anti-drop box protects the knife body in all directions
  • 1-2.jpg

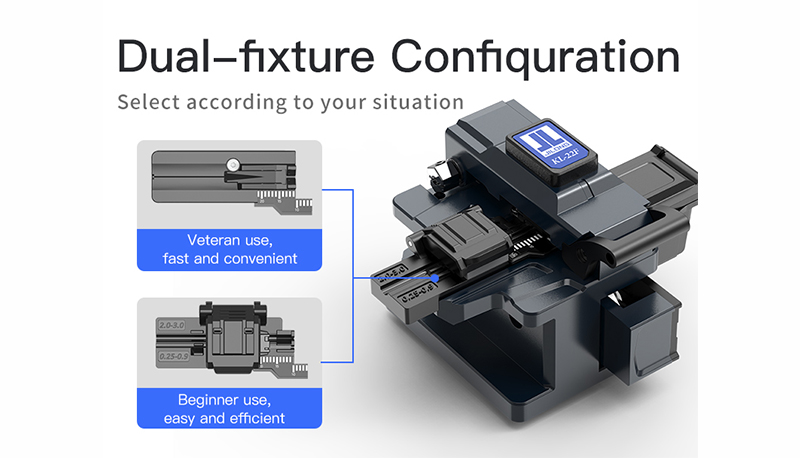

    Dual Fixture Configuration
    ● Double fixture configuration
    ● Easy to use for novices, improving work efficiency
    ● Veteran use, convenient and fast
    ● Choose fixtures according to your needs
  • 6.jpg
    Brand new handheld design
    ● The overall design is small and light
    ● Convenient and easy to carry
  • Tungsten steel blade, durable
    Tungsten steel blade, durable
    ● The blade is made of tungsten steel, wear-resistant and durable
    ● High hardness, corrosion-resistant
    ● Sharp blade, stable cutting
Product Specifications


Fiber MeterialSilica glass
Cladding Diameter125 μm
Cleaved LengthSingle fiber: 8~20mm / Ribbon fiber: 10mm
Applicable Fiber CableSingle fiber: 250μm, 900μm, 3.0mm;                Fiber cable and flat cable Ribbon fiber:   2 to 12 ribbon fiber cable
Typical Cleaved AngleLess than 0.5°★①
Typical Blade LifeTotal 48,000 fiber cleaves   (replaceable)★②
Off-cut CollectorPre-fitted
Type of Offcut BinManual
Auto ReturnPre-fitted
Fiber HolderDouble Fiber Holders
Dimension55W *55D*50H(mm)
Weight235g

★①Cleaved angel may vary depending on the operating environment.

★②Blade life is not guaranteed. It may vary depending on the operating environment.


Product manual
Products Tutorials
    No data
Product configuration
  • Fiber Cleaver
    Fiber Cleaver
  • Equipped with anti-drop box
    Equipped with anti-drop box
